Similar to 5/8 sash guide(18-009) but larger and longer lip?

Question

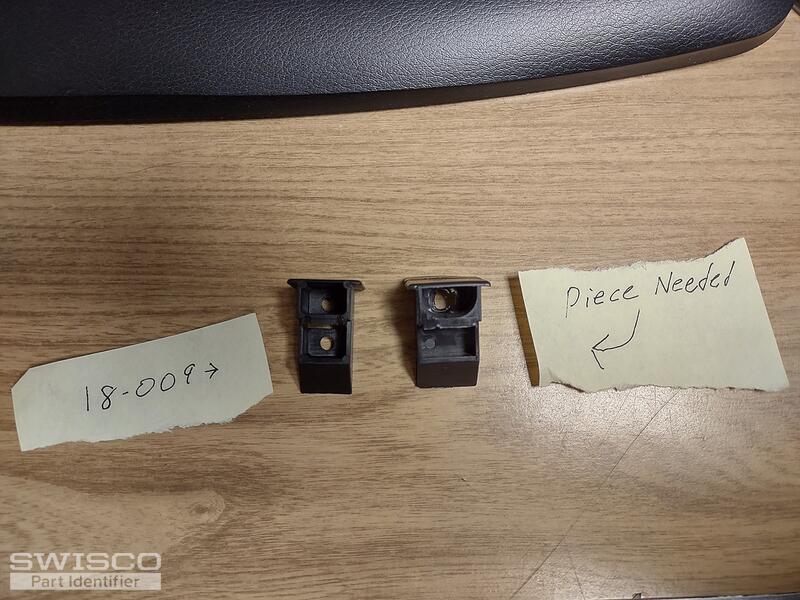

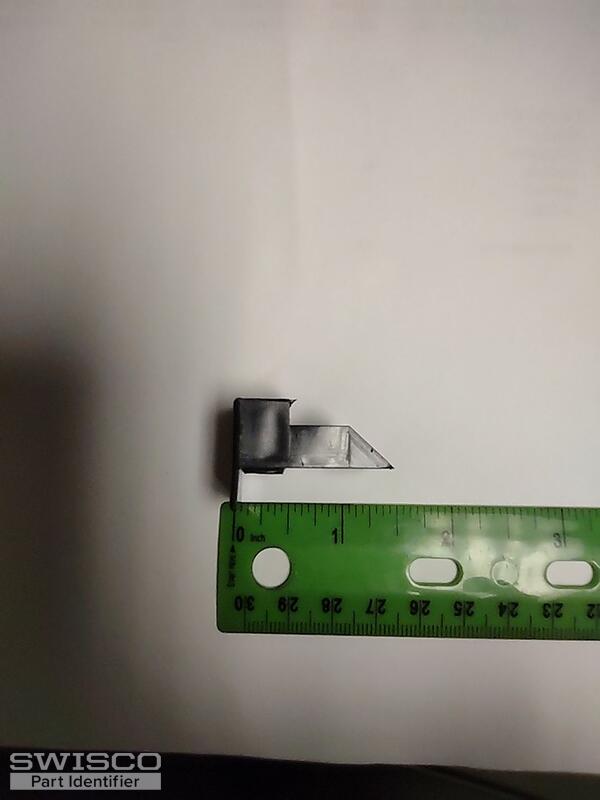

I previously ordered the 5/8 sash guide from this website in hopes that I could make it work. Sadly I could not as the 5/8 is just a little smaller than this piece. I don't have an ID on the window manufacturer yet, but these are supposed to go with the 22" Series 390 Channel Balance. Any advice would be awesome!

Paul · Accepted Answer

The closest top sash guide we sell to your description is our 18-052. The top cap is 1-1/16 wide by 5/8" deep, the length is 1-1/4", the screw hole is 3/16" down from the top and the base that fits into the sash channel is 3/4". Unfortunately it only comes in white.

We do have 18-015 in black. This has a 13/16" wide base, but that might be too tight.
