Similar to 82-239

Handy Person from Mission Viejo

Aug 18, 2017 9:33 am

I have two styles of Superior Windows sliding doors (they are now out-of-business) - 9800 which use the 82-239 mortise lock and 9900 which use something similar. I need to replace the multi-point mortise on the 9900. The dimensions are the same as the 82-239, but the mounting holes for the face plate are different, the keeper is very different (1-1/4" wide and 1/4" deeper), and the reach on the two catches is about 1/4" longer. I think I can make the 82-239 work by putting a 1-1/2" x 1/4" aluminum bar behind he catch but would rather not do this.

5 Replies

Tom from SWISCO

Aug 18, 2017 9:47 am

Before we get started, can you send some pictures of the unidentified mortise? We'd like to see it before we compare any dimensions.

Handy Person from Mission Viejo

Aug 19, 2017 12:25 am

Photos attached

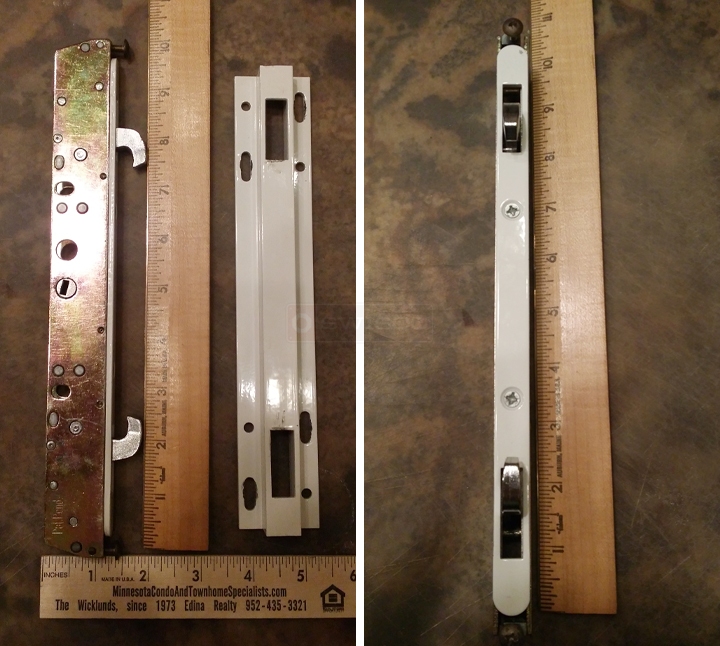

User submitted photos of a mortise lock.

Dave Sr. from SWISCO

Aug 23, 2017 11:12 am

These pictures are a huge help, thank you. I agree that our 82-239 looks like the closest match we have. You can adjust the hooks on the 82-239 by turning the adjustments screws, that should move the hooks in or out, as needed. I'm afraid we do not carry your exact keeper. Take a look at the 82-249, this is the what the manufacturer recommends for the 82-239. That said, your old keeper might still work with the 82-239 latch, if its reusable.

Professional from CA

Aug 23, 2017 5:13 pm

It is unlikely the old keeper will work with the new handle.
You should be able to catch one side or the other, but not both.
