Simonton Awning Window Part

A quick learner from Ocean City NJ says:
April 26, 2020

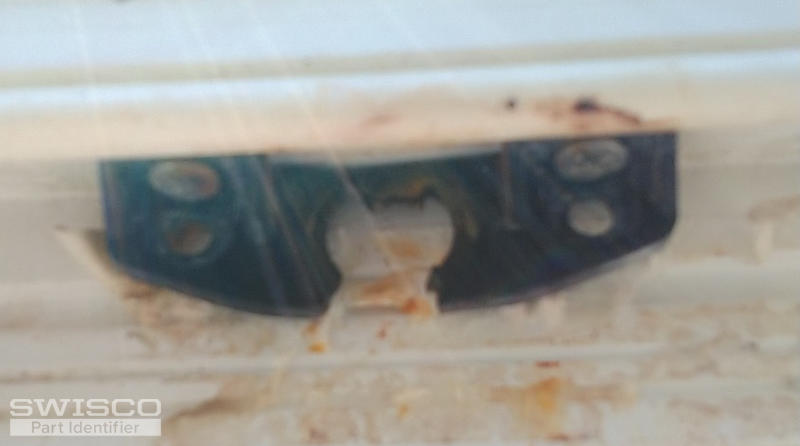

I have Simonton. Awning Window 19" x 19" from 2008. Series 0808/08-09. Need the part on the bottom of the window that the scissor arms connect to.

Thanks.
Thumbnail of the uploaded file named IMG_20200425_131629894.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 29, 2020

I'm afraid that I don't recognize this part. Would it be possible to see an undamaged version? Can you also show me the scissor arm  operator that connects to it?
A quick learner from Ocean City NJ says:
May 2, 2020

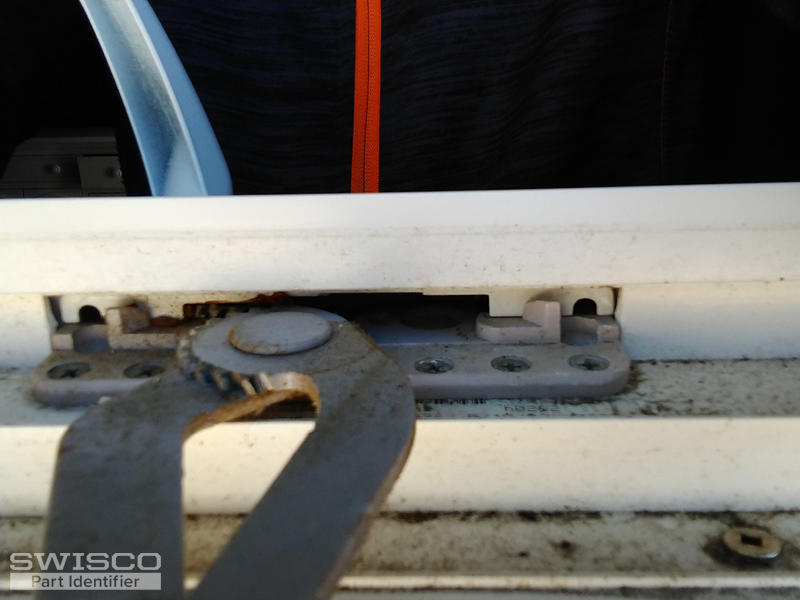

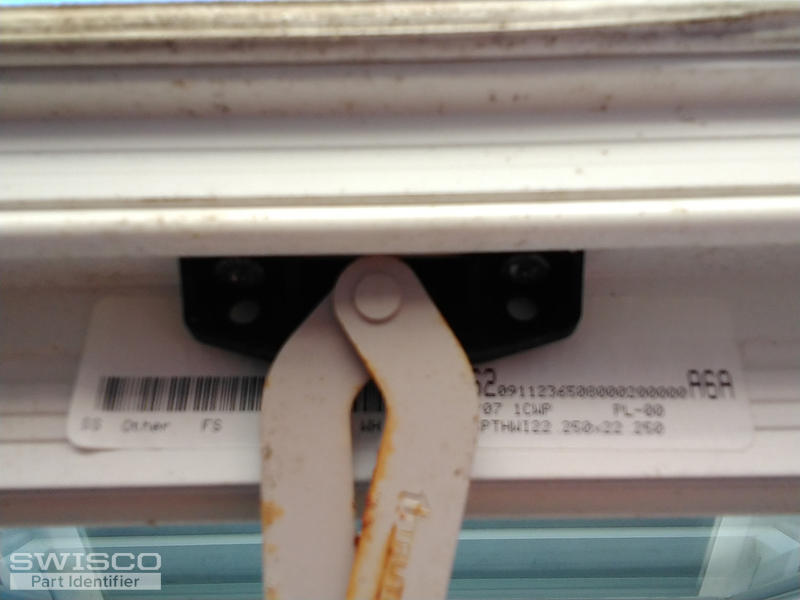

Sure here are 3 pictures. 1a shows the Scissor Hinge, 1b shows Scissor hinge attached to bottom of window and 1c shows Scissor hinge attached to the house.

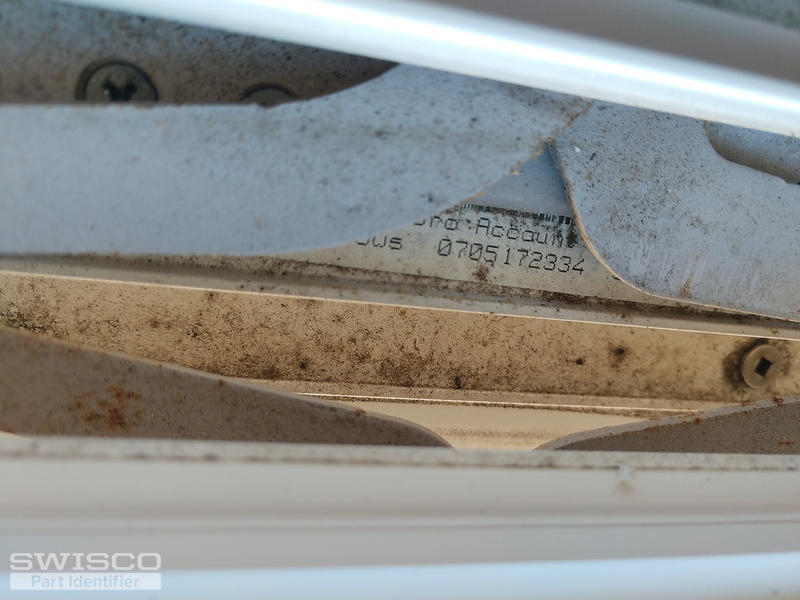

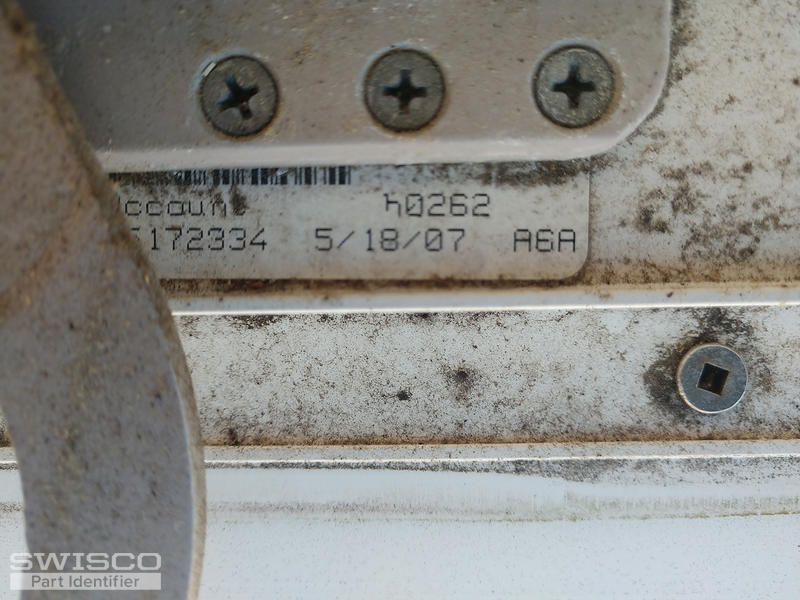

Pictures 2a-2b show Id#
Thumbnail of the uploaded file named Window 1a - Scissor hings Awning Window.jpg
Thumbnail of the uploaded file named Window 1b - Scissor hinge attached to bottom of wi
Thumbnail of the uploaded file named Window 1c - Scissoe hinge attached to frame.jpg
Thumbnail of the uploaded file named Window 2a ID #.jpg
Thumbnail of the uploaded file named Window 2b Id#.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 4, 2020

Thank you! This is a huge help. I recognize this now. It looks like your operator works under the same principle as our 39-433, if it isn't the very same part itself. That means that black bracket might be a match for our 39-433B. Even just looking at the design, they appear to be very similar. Please review our photos and info and let me know if you agree.
A quick learner from Ocean City NJ says:
May 6, 2020
I agree and I ordered the part.
Thank you.
Maxim Narrow Awning Operator
Maxim Narrow Awning Operator
39-433
$50.19
Truth Maxim Narrow Awning Operator Bracket
Truth Maxim Narrow Awning Operator Bracket
39-433B
$5.70
