Simonton Dimension 1 balance

A quick learner from OH Tennessee says:
April 2, 2019

I am looking for balances for my windows. They are out of warranty and Simonton gave me your company name.

The number stamped on the spring is 6.5 33 200994

The spring is 1/2" wide.

Please let me know if you can ID my part and if it is available.

Bst Regards

Scott

Thumbnail of the uploaded file named 20190327_203820.jpg
Thumbnail of the uploaded file named 20190402_202731.jpg
Thumbnail of the uploaded file named 20190402_202738.jpg
Profile picture of Casey
Casey from SWISCO responded:
April 3, 2019

It is hard to tell what your pivot shoe looks like while it is still installed in the window. From what I can make out, I suggest you take a look at our 15-111 pivot shoe, S160-6 coil balance and 15-150S single coil support. Check out the related videos for installation help.
A quick learner from OH Tennessee says:
April 3, 2019

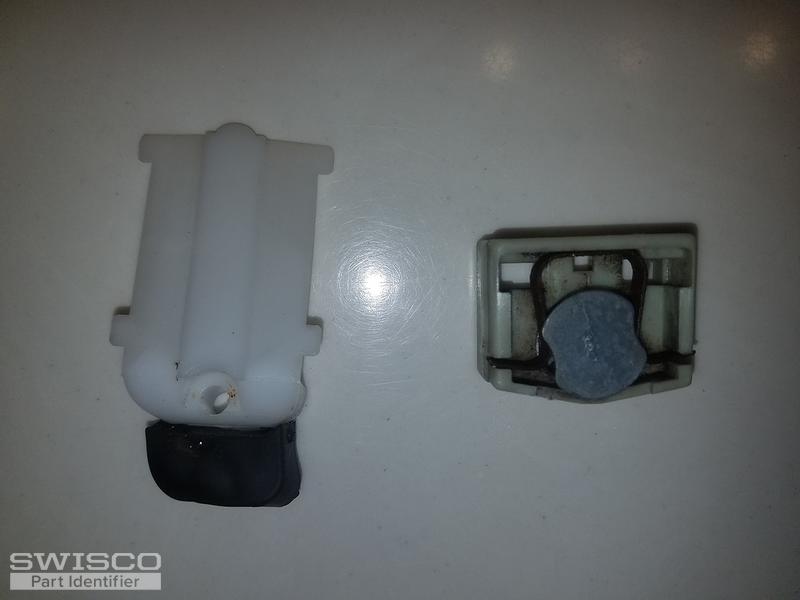

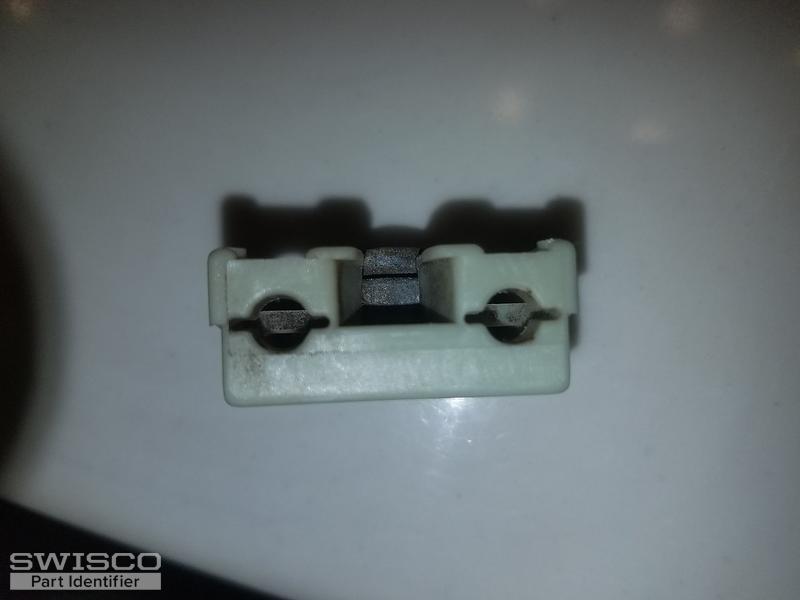

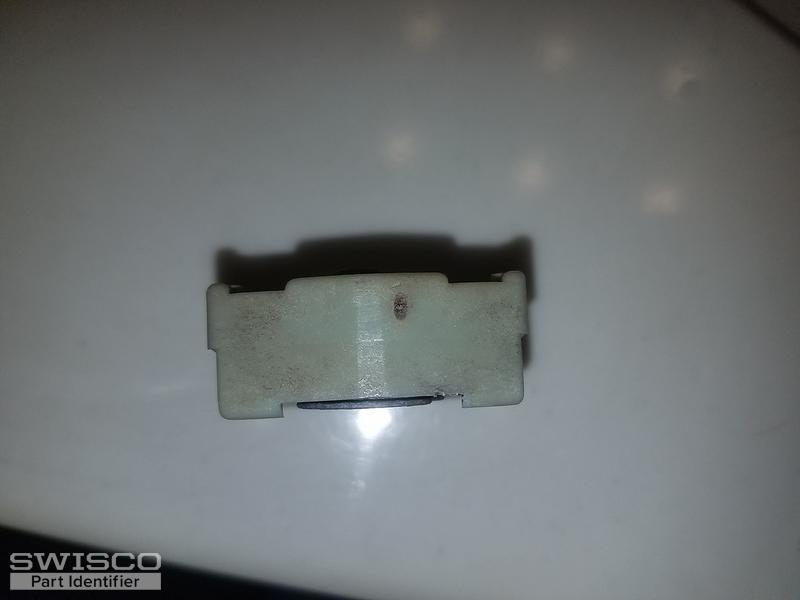

Here are some better pics. Please tell me if your recommendations change. The pivot measures 1.25" nearest the window and 1.1875" nearest the frame.it is .5" thickness.
Thumbnail of the uploaded file named 20190403_221511.jpg
Thumbnail of the uploaded file named 20190403_222514.jpg
Thumbnail of the uploaded file named 20190403_222522.jpg
Profile picture of Bob
Bob from SWISCO responded:
April 4, 2019

If you mean the width of the shoe is 1-1/4", along with 1/2" thickness, then yes the 15-111 should be what you're looking for. As Jody said, it sounds like you need the S160-6 Coil Spring. Let us know if you have any further questions.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
6.5 lbs Series 160 Coil Balance
6.5 lbs Series 160 Coil Balance
S160-06
$4.85
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
