Simonton Double Hung

Contractor from Los Angeles

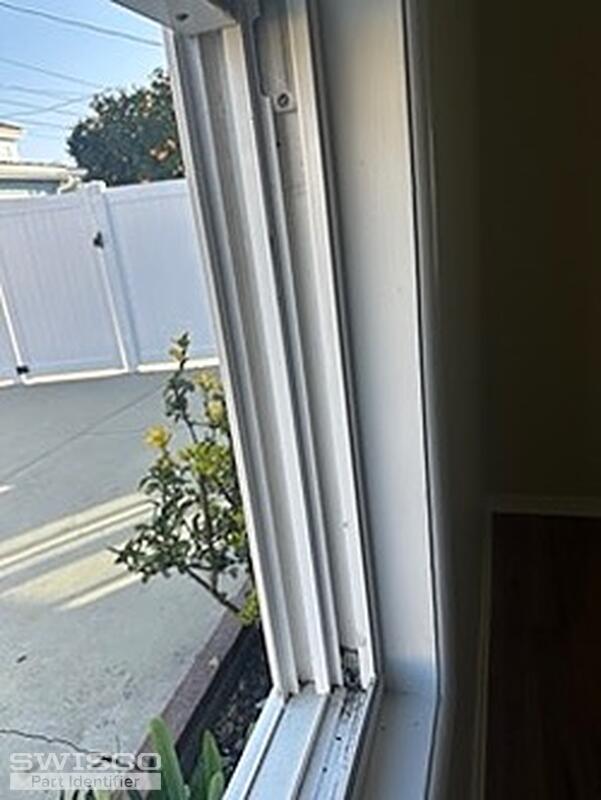

I need left and right coil balancers, left and right pivot bars, left and right tilt ouit latches and the "breathe" locks for the upper sash
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Thanks for posting! I'm happy to recommend replacements for your coil balance assemblies, but I will need to see a clear photo of the shoe, removed from the window. I'll also need to know width of the metal coil and any stamps/marking etched into the metal. If there aren't any stamps, please confirm the exact weight of the sash.

Take a look at the two video tutorials tagged below as a reference for how to remove and install them.

Your window latches remind me of the 26-243 and 26-244 Tilt Window Latches. Be sure to carefully compare all of the dimensions to confirm these are the correct replacements.

Alternate view of 26-244
Alternate view of 26-244

Profile view of 26-244
Profile view of 26-244

The piece you are referring to as the "breathe" lock is the vent stop. Yours can likely be replaced with the 26-354 Sash Vent Stop but you'll need to be sure to confirm.

Detail of 26-354
Detail of 26-354
