Simonton Pivot Shoe

A contractor says:
May 4, 2021

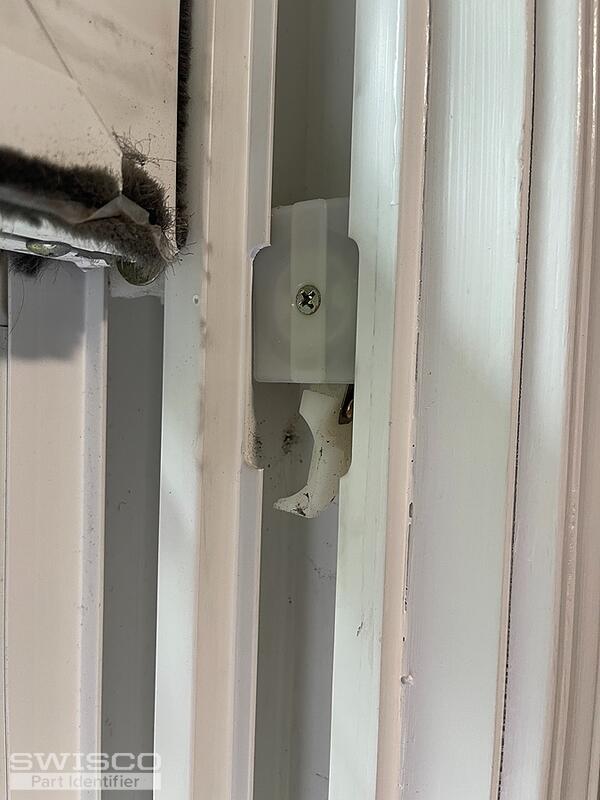

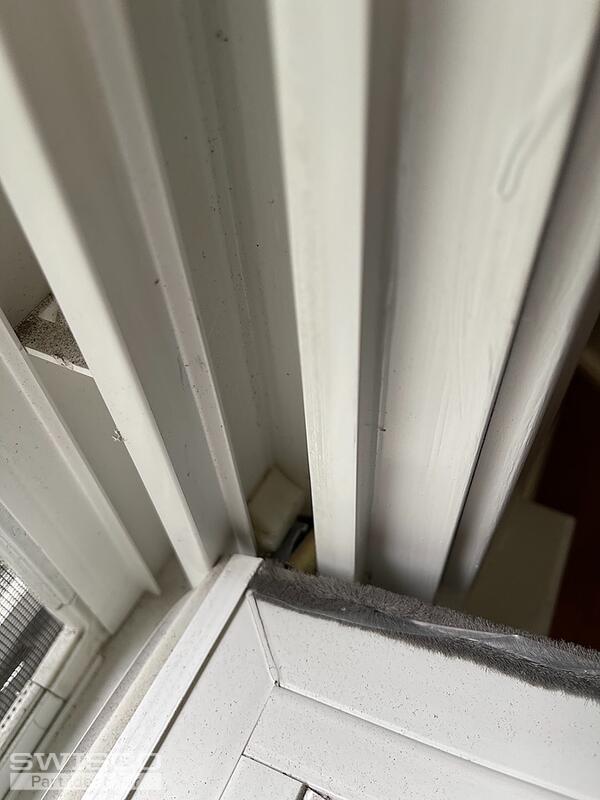

I have attached a photo of the Simonton window serial number along with the damage pivot shoe part. Please advise if you have a replacement available.
Thumbnail of the uploaded file named F2C48661-B3EC-44FA-899A-1FC5EC2DDCE7.jpeg
Thumbnail of the uploaded file named 81A4C5C6-54AC-4BE5-B302-FDC649A256E8.jpeg
Thumbnail of the uploaded file named 66F051A8-8F8B-4011-A957-1A019AC18194.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 5, 2021

Hello,

I'd recommend removing an undamaged pivot shoe to compare to our 15-192. If it's a match, keep in mind that Simonton's version of this pivot shoe uses a slightly different style metal cam, so you would need to reuse the original cams with the 15-192 shoe for these to work for you. Thanks for posting!
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
SWISCO S170 and S171 Coil Balance Assembly
SWISCO S170 and S171 Coil Balance Assembly
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
