A home owner from Lone Tree, Colorado says:
Hi. I need to replace this part on both sides of a window in my home, and I don't know the part number. I included a photo of a sticker on the window itself. Thank you in advance for your help.
Thumbnail of the uploaded file named IMG_1111.jpg
Thumbnail of the uploaded file named IMG_1110.jpg
Thumbnail of the uploaded file named IMG_1112.jpg

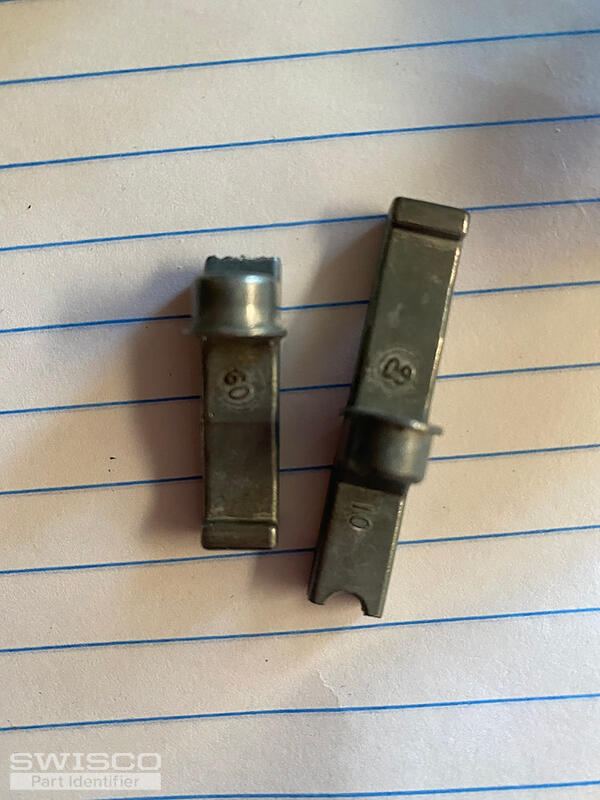

Thumbnail of the uploaded file named IMG_1113.jpg
Profile picture of Tom
Tom from SWISCO responded:

Simonton no longer makes this balance system anymore, unfortunately. The only parts we have that may work are our 15-192 shoe and Series 170 and Series 171 springs. We also sell the 26-336 to replace the pivot bar. The bad news is that the 15-192 shoe and 26-336 pivot bar are not compatible. That means you have to find a way to reuse the center metal cam from your old shoe.

A home owner from Lone Tree, Colorado says:
I think I need a coil housing as well? What would you recommend to go with these parts to make it fit?
Profile picture of Tom
Tom from SWISCO responded:

Sure, sorry for overlooking that. You can use the 15-156 cover. We also sell the 15-157 bushings if you need them. The video below will go into more detail as to how all this works together.
