Simonton double hung shoe

A home owner from Vermont says:
February 25, 2023

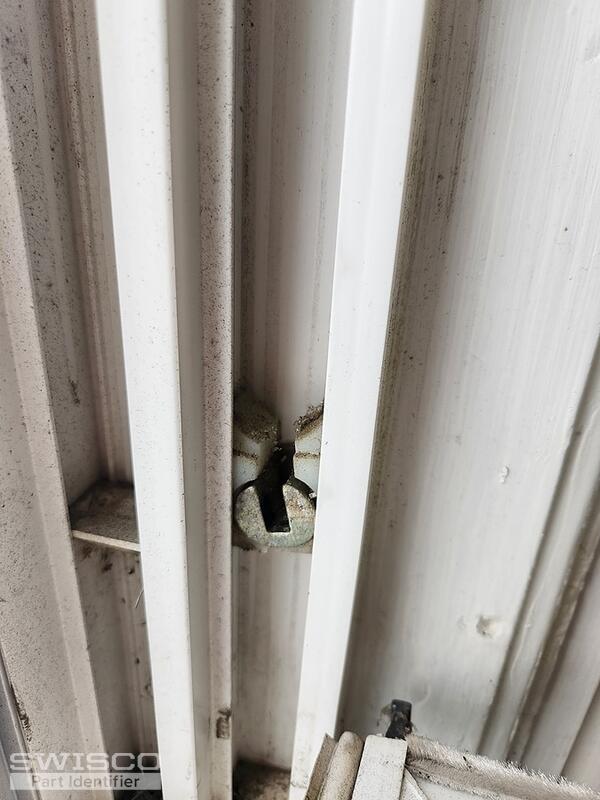

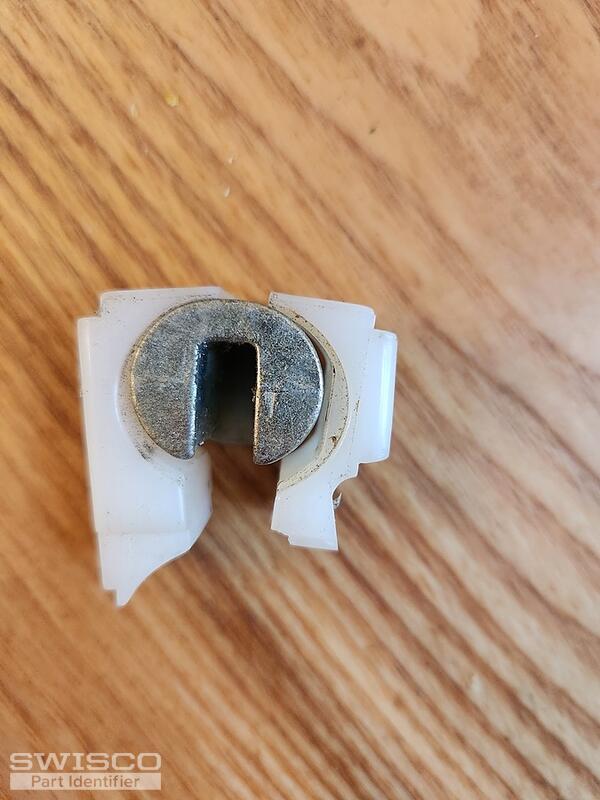

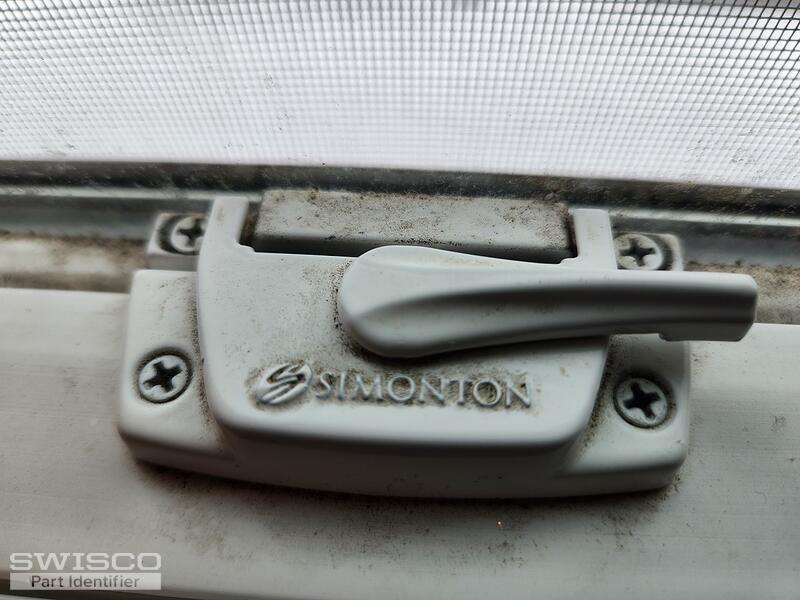

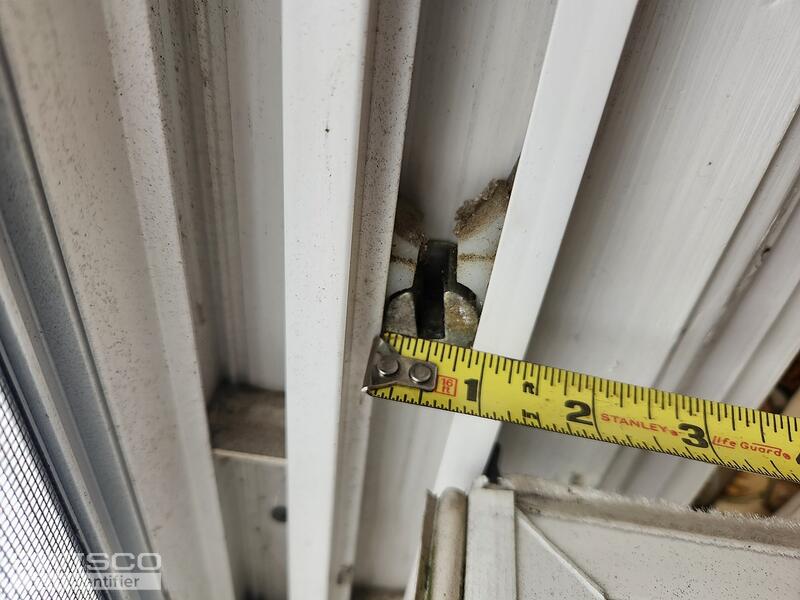

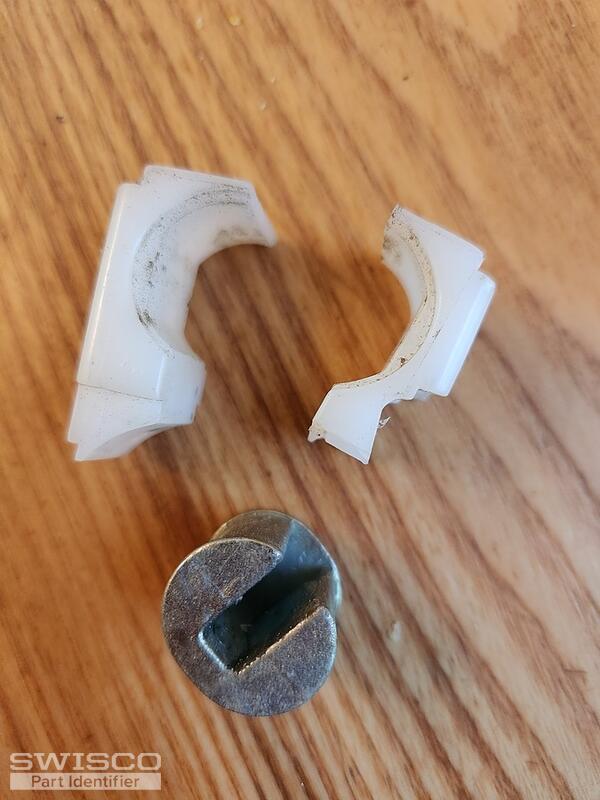

I believe this is a pivot shoe but I'm not sure the parts I need. No numbers or markings on it. Thank you for any help!
Thumbnail of the uploaded file named 20230225_144754.jpg
Thumbnail of the uploaded file named 20220917_083717.jpg
Thumbnail of the uploaded file named 20220917_083734.jpg
Thumbnail of the uploaded file named 20230225_144023.jpg
Thumbnail of the uploaded file named 20230225_143949.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 27, 2023

Hello,

Take a look at the video below that shows the coil balance hardware that we recommend to replace your Simonton assembly, as well as the installation process. Thanks for posting!
A home owner from Vermont says:
April 5, 2023
Hello! Thank you so much for your help with my window hardware. It is unclear to me how I know what weight pivot bar I should get. Thank you!
Bob
Profile picture of Casey
Casey from SWISCO responded:
April 6, 2023

The pivot bar used with the hardware shown in our video is the 26-083. If you're referring to the strength options needed for the new S159 coil springs, you will need to weigh the window sash and divide the weight by the number of coils on each side of the window. Feel free to get back to us with your exact sash weight to confirm.
Coil Balance Pivot Shoe
Coil Balance Pivot Shoe
15-259
$2.57
3/4" Coil Single Support
3/4" Coil Single Support
15-255
$1.09
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-083
$1.12
