Simonton double hung windows

A quick learner from Long Island NY says:
March 30, 2021
Good Day
Trying to locate these parts for my Simonton double hung windows
can you help please. One is called a pivot shoe need 4 pcs of that and the other is called the Pivot bar and we need 8 pcs of this one. please see pictures attached for dimensions.
Thanks
Thumbnail of the uploaded file named tempImage5fJYwp.gif
Thumbnail of the uploaded file named tempImageqmveMl.gif
Thumbnail of the uploaded file named tempImagehLXOOJ.gif

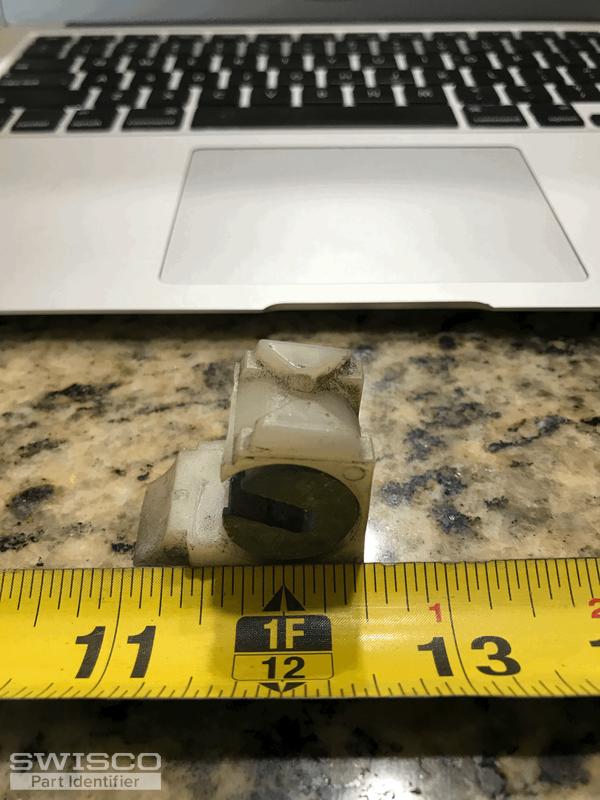

Thumbnail of the uploaded file named tempImagenDigcb.gif
Profile picture of Bob
Bob from SWISCO responded:
April 1, 2021

The pivot shoe is our 15-192, while the pivot bar is our 26-366. However, the Simonton version of this shoe that you have has a slightly different metal cam shape from our replacement. We advise reusing the old metal cam in the new shoe, to ensure compatibility with this style pivot bar.
Pivot Bar, Simonton
Pivot Bar, Simonton
26-336
$2.70
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
