Simonton left window dbl coil balancer

Quick Learner from USA

Mar 24, 2017 10:26 am

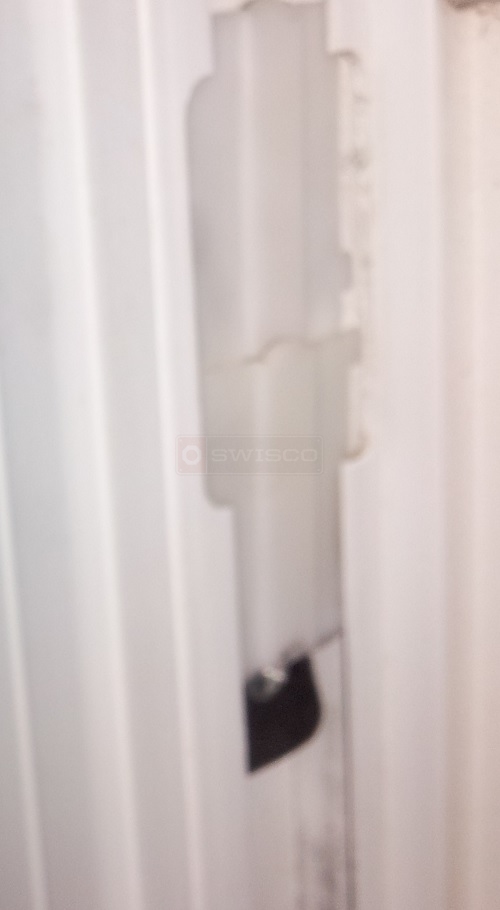

I have single hung Simonton window left side double coil balancer broke. My question is one of the coils have a #3 stamped/ engraved in it , but the other coil stamp isnt visiblie. I recently ordered series 160 coils 3.5 & 5.5 lbs for replacement. Did I do the right thing? I was thinking the 5.5 goes on top and the 3.5 get located on the bottom. Am I correct?

6 Replies

Tom from SWISCO

Mar 28, 2017 11:49 am

I honestly can't say for sure. Your pictures don't tell me much, I'm afraid. Did the Series 160 springs at least fit? I just want to be sure these are the right springs to begin with. Can you also tell me the weight of your sash? And just to confirm, there are two springs used on either side, correct?

Quick Learner

Mar 28, 2017 1:51 pm

Yes, the coils did fit. There are two coil springs on each side. Here is what I received from Simonton Windows.: The balance sizes on this specific window is 35S

Tom from SWISCO

Mar 29, 2017 11:59 am

I'm afraid that number doesn't tell me the weight of the sash. I'll need you to remove it from the window and put it on a scale, then let me know what you get. Without any old stamps to go by on your one spring, this is the only way we can determine what would work.

Quick Learner

Mar 31, 2017 6:30 pm

Sash weight is 15-17lbs.

Tom from SWISCO

Apr 3, 2017 9:08 am

Hmm... well, the way you have it, the combination of springs would support 18 pounds. This would work just the same as our S160-4. Each of these carries 4.5 pounds, so four working together (two on each side) can also support a sash of 18 pounds.

Now, this is a bit heavier than what you have, but could still work. Two S160-3 (3.5 pounds) and two S160-4 (4.5) might be better, since that combo can carry 16 pounds. Ultimately, it's up to you.
