Simonton pivot lock and pivot bar

A contractor from MD says:
April 12, 2021
Need help identifying a replacement part for this simonton double hung window. Need to replace the pivot lock, pivot bar, thank you.
Thumbnail of the uploaded file named 20210412_094228.jpg
Thumbnail of the uploaded file named 20210412_101152.jpg
Thumbnail of the uploaded file named 20210412_101155.jpg

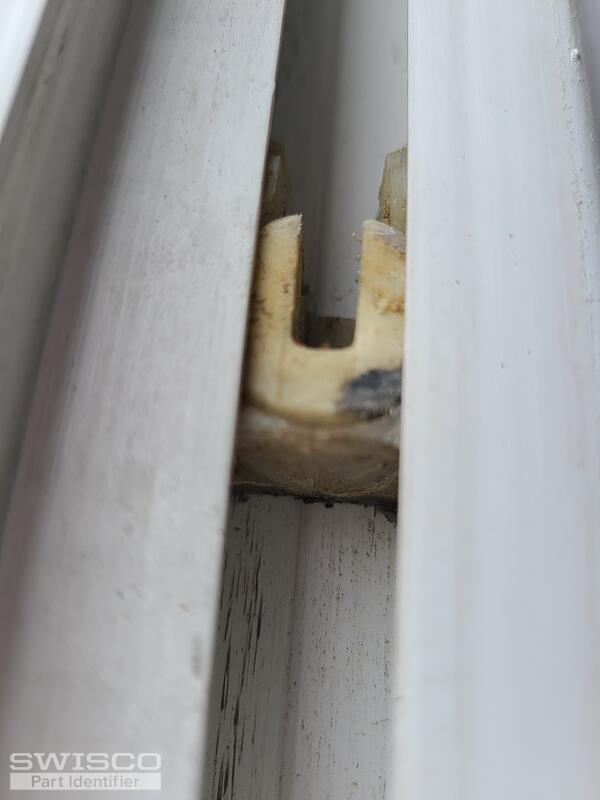

Thumbnail of the uploaded file named 20210412_101159.jpg

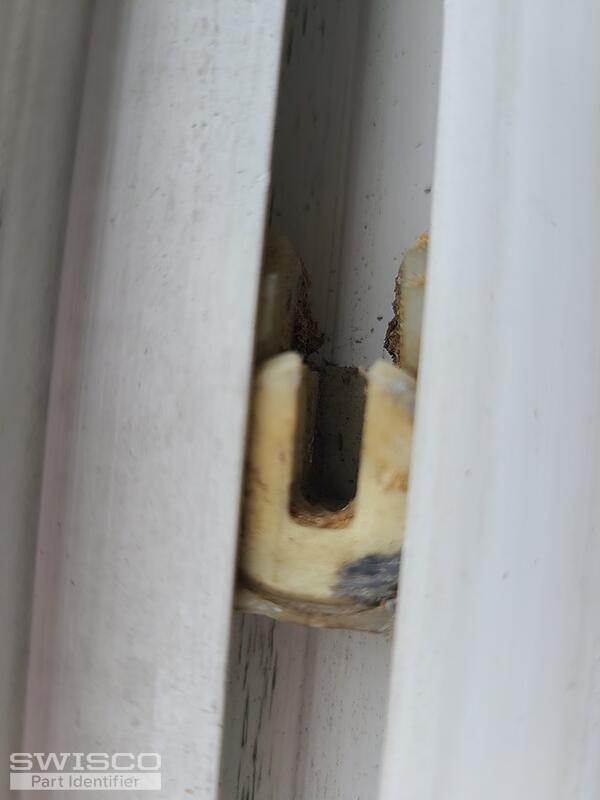

Thumbnail of the uploaded file named 20210412_101202.jpg
Profile picture of Bob
Bob from SWISCO responded:
April 14, 2021

It's tough to tell without seeing anything actually out of the window, but most likely the shoe is our 15-192. Note that the Simonton version of this shoe has a slightly different metal cam shape, so we recommend swapping out your old one with the one in the new shoe. Simonton uses a few different pivot bars, so I don't have much of an idea which one you need--but my guess would be the 26-336.
Pivot Bar, Simonton
Pivot Bar, Simonton
26-336
$2.70
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
