Simonton window 6100 double hung window coil balance

A home owner from New York City says:

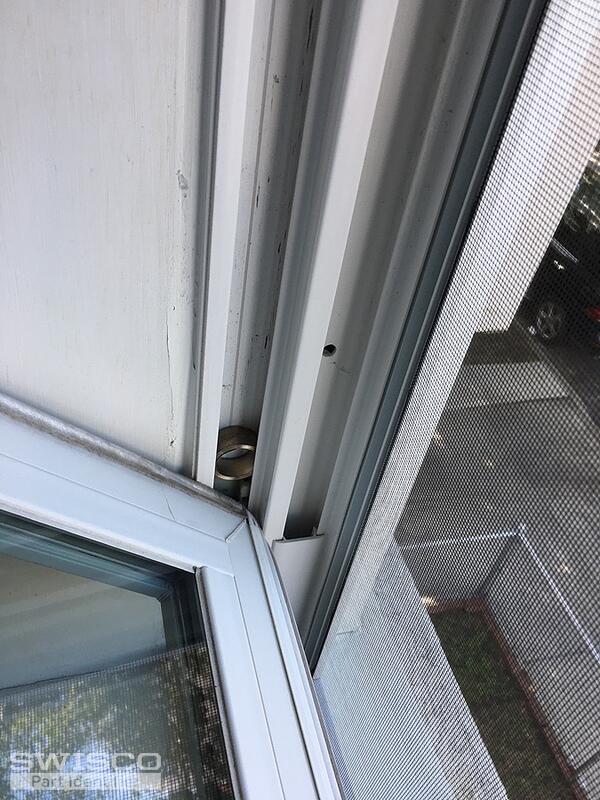

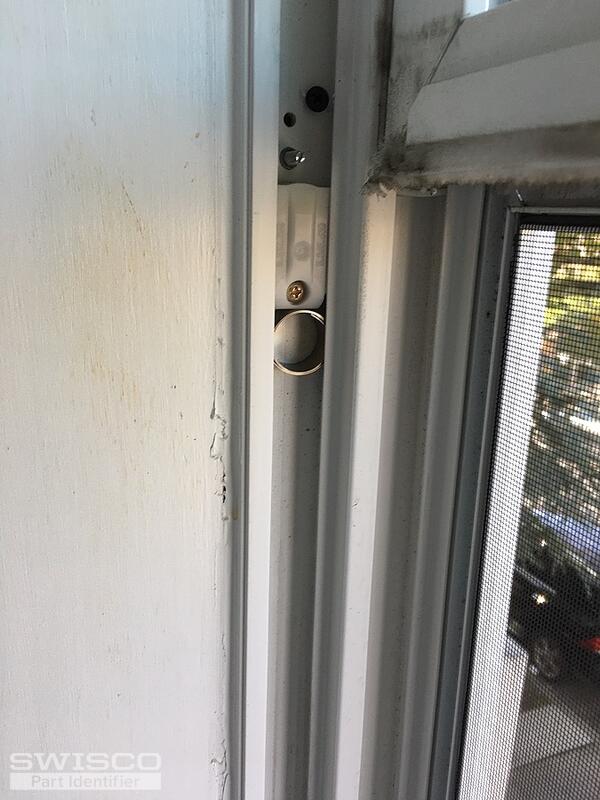

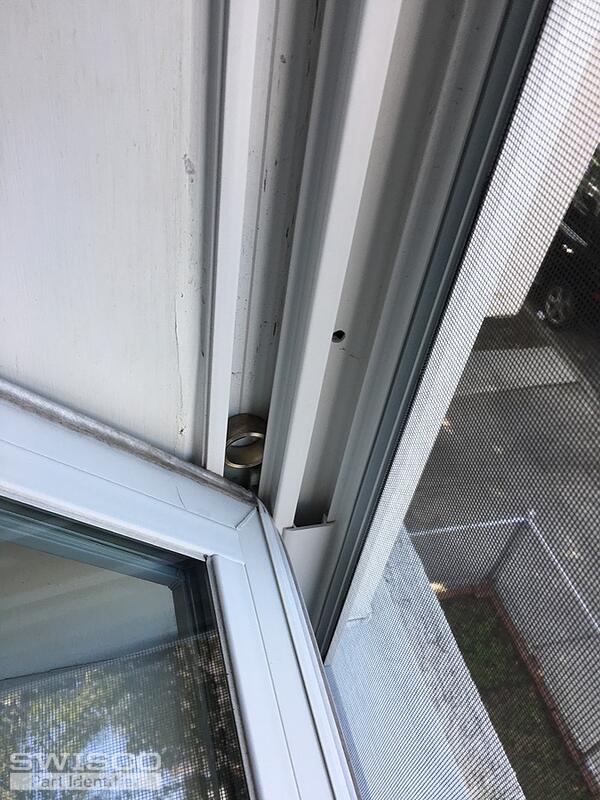

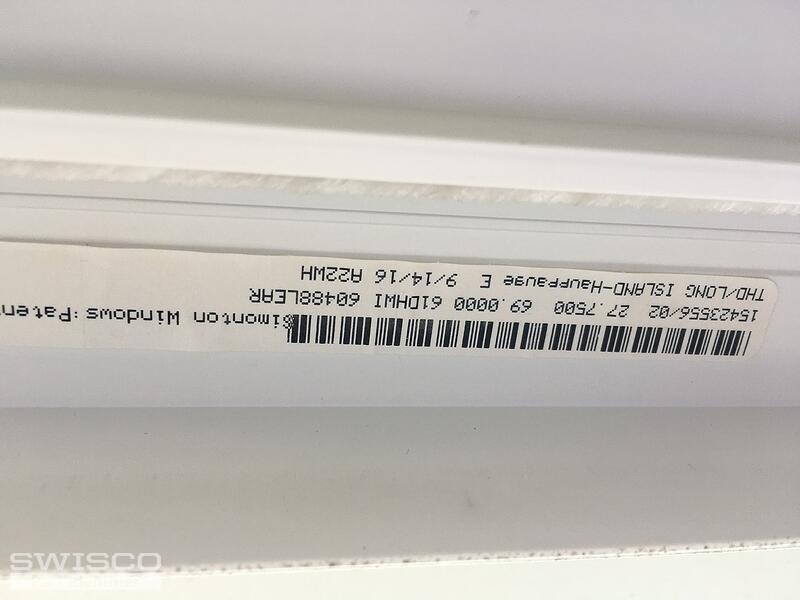

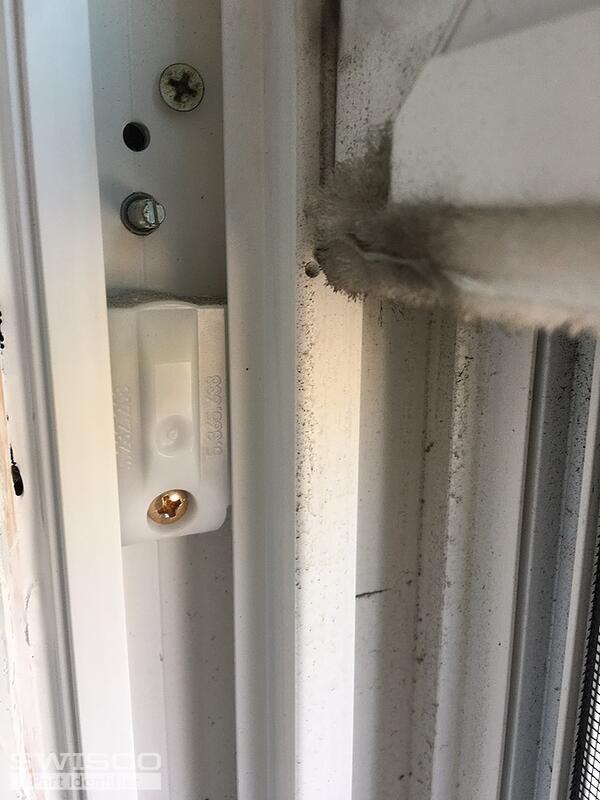

Can you tell me what replacement parts that I need to replace both side bottom sash?
Thumbnail of the uploaded file named 5BA27FF5-2E30-4C93-90C8-DCB1697100EE.jpeg
Thumbnail of the uploaded file named BF251CBA-A5C3-4BA1-9501-4A9217762FF1.jpeg
Thumbnail of the uploaded file named C75E1A0D-72F0-4804-85FE-E141F9AC1802.jpeg
Thumbnail of the uploaded file named 3B32116B-3C83-42E7-A94A-939A64FE8EA7.jpeg
Thumbnail of the uploaded file named 8953CAA2-4B0D-4E0B-A0DB-AACD55173E09.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We should have the hardware you need to repair this window, but I'm afraid I cannot make a recommendation without seeing the pivot shoe itself, which is currently too obscured to ID. Would it be possible to see a clear and unobstructed view of the pivot shoe?

A home owner from New York City says:

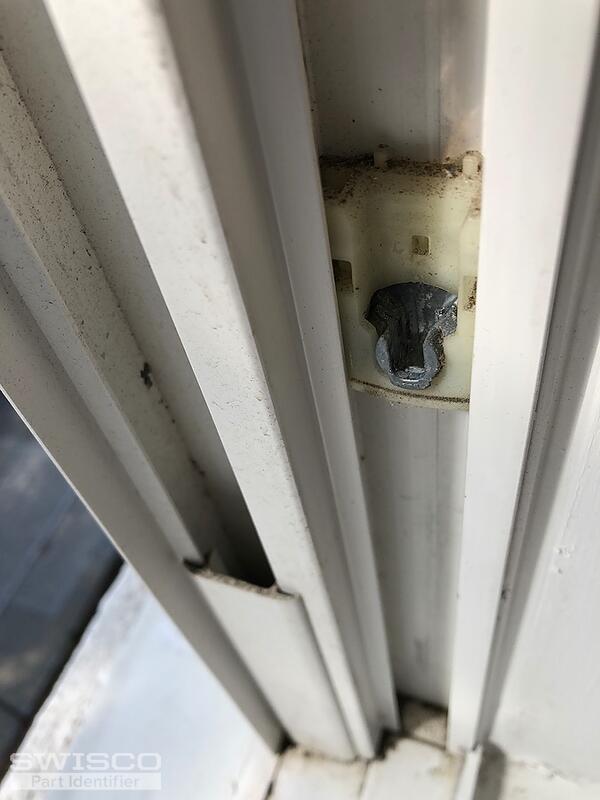

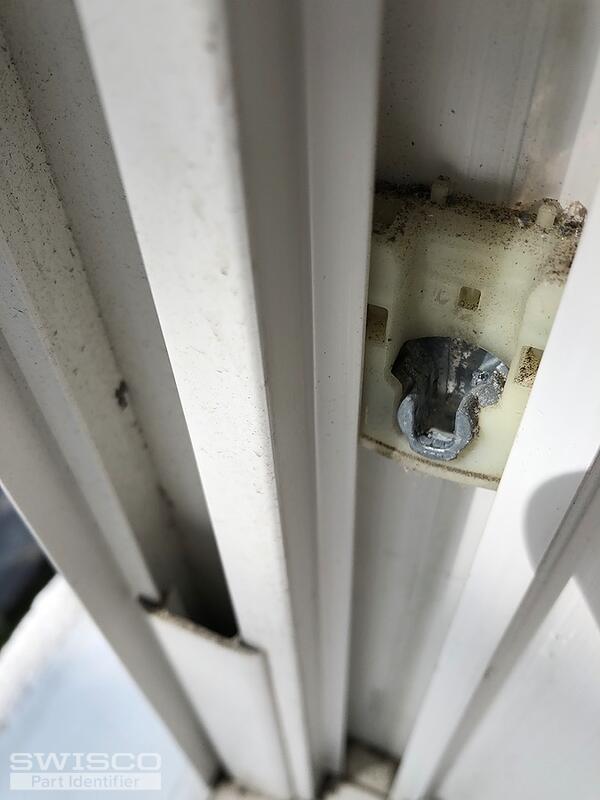

Please find attached a photo for pivot shoe. Thanks.
Thumbnail of the uploaded file named 90AC89E3-7B39-46EF-9525-4309CCB86E7C.jpeg
Thumbnail of the uploaded file named 0398DFAA-7162-4912-8C43-36FEE12CD7A8.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you. It's a little hard to make out in the frame but the design strongly reminds me of our 15-228 . This is designed to be compatible with either our 3/8" Series 165 or 1/2" Series 160 . You will need to measure your old spring to confirm the best match.
