Simonton window

Landlord from san francisco

Feb 14, 2024 12:23 am

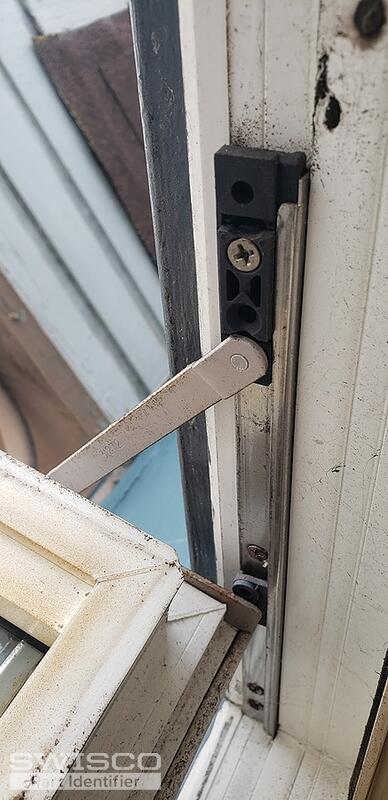

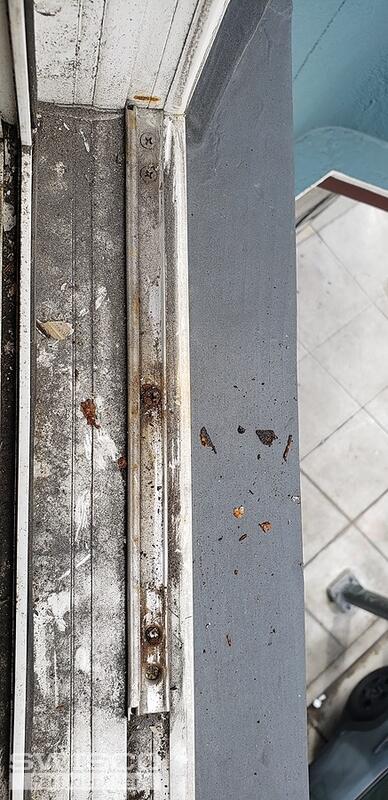

I would like one left set of hinges and controller for this window.Include all hardware ,screws ect.. The hinge is 103/8" x5/8"

#961747/03 v3lh 29.75x45.625 V3LH COO26

20240213_105136

20240213_105432

20240213_105336

20240213_105341

20240213_105141

5 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Feb 14, 2024 1:36 pm

SWISCO

EXPERT

Hello,

Your operator resembles the 39-187 and 39-188. Review the dimensions below to confirm that they match up to yours.

Alternate measurement of arm

Alternate measurement of arm

As for your hinges, take a look at the 36-048 set with a 10" base. Thanks for posting!

Detail of 36-048

Detail of 36-048

Additional dimensions for 36-048

Additional dimensions for 36-048
