Simonton window balance

Home Owner

Jun 7, 2025 3:36 pm

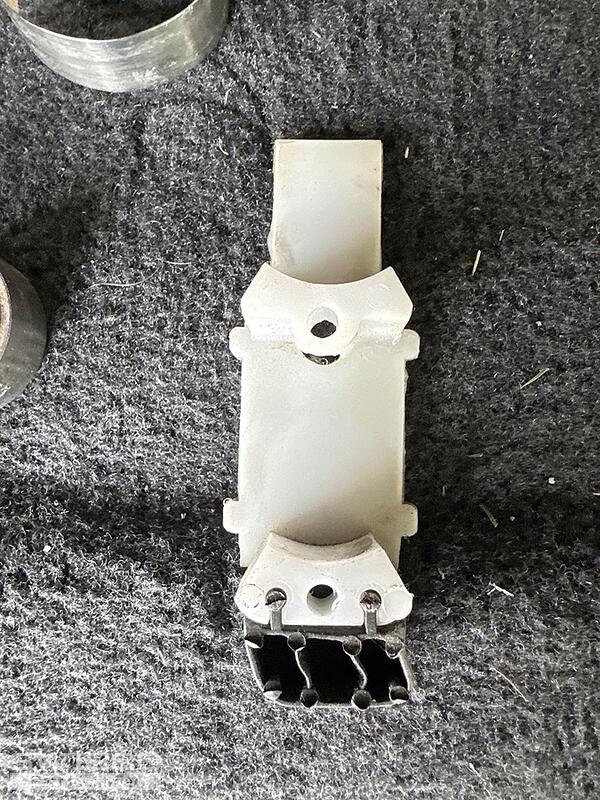

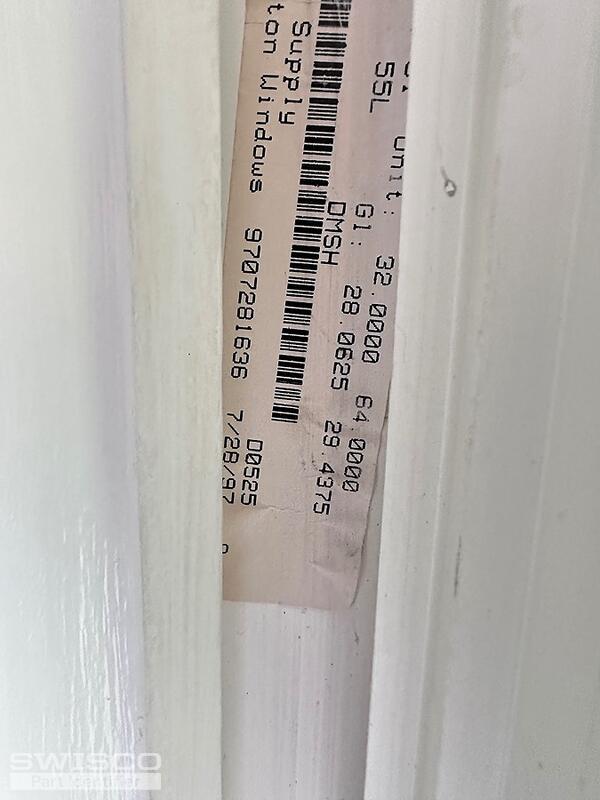

Looking to replace several of these balances. Measurements in pictures. 3 1/8" long by 1 1/4" wide at widest part (tabs). 2 screws. Removable rubber piece at bottom. Need coils as well. Double hung windows. Sticker on window frame is in pictures.

5 user uploaded images

4 Replies

Bob from SWISCO

Jun 7, 2025 11:53 pm

Thanks for posting. Can you tell us the width of the coil spring tape? it should be 1/2" or 3/8". Can you also show us the pivot shoe the springs attach to? That should narrow things down.

Home Owner

Jun 30, 2025 9:53 pm

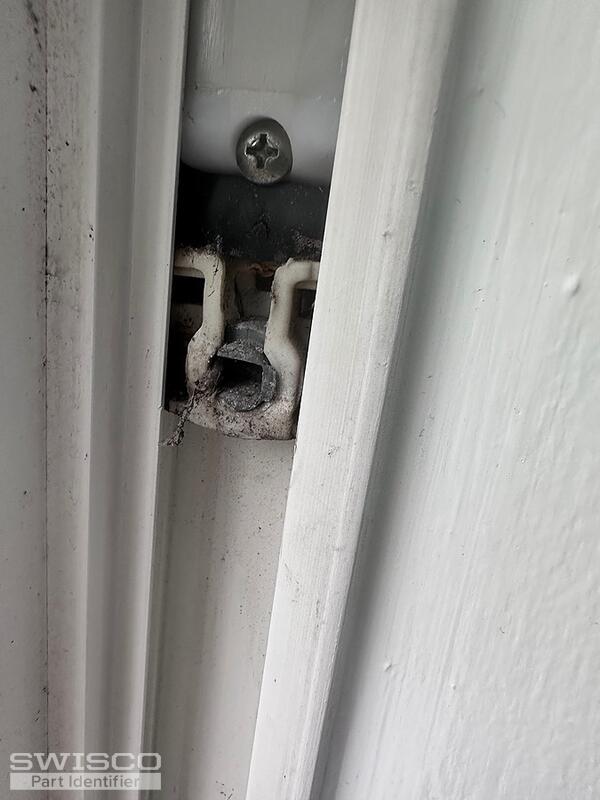

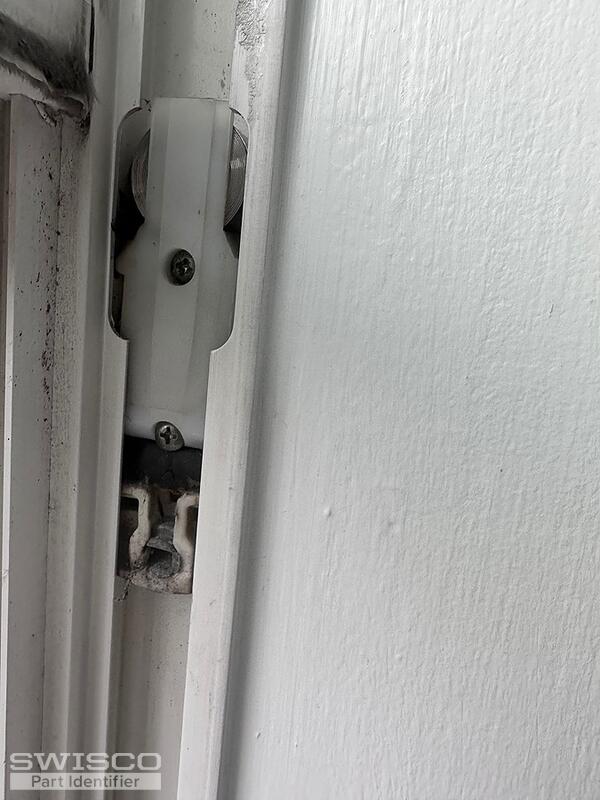

1/2" width of coil spring tape. Here is the picture of the pivot shoe.

2 user uploaded images

Bob from SWISCO

Jul 2, 2025 2:45 pm

Perfect, thanks. This looks like a 15-111 pivot shoe, which works with 1/2" Series 160 Coil Balance springs. To know what replacement spring weights you need, see the video below. Let me know if you have questions.
