Simonton window coil balance

Handy Person from Perkasie, PA

Apr 9, 2024 3:49 pm

Hello,

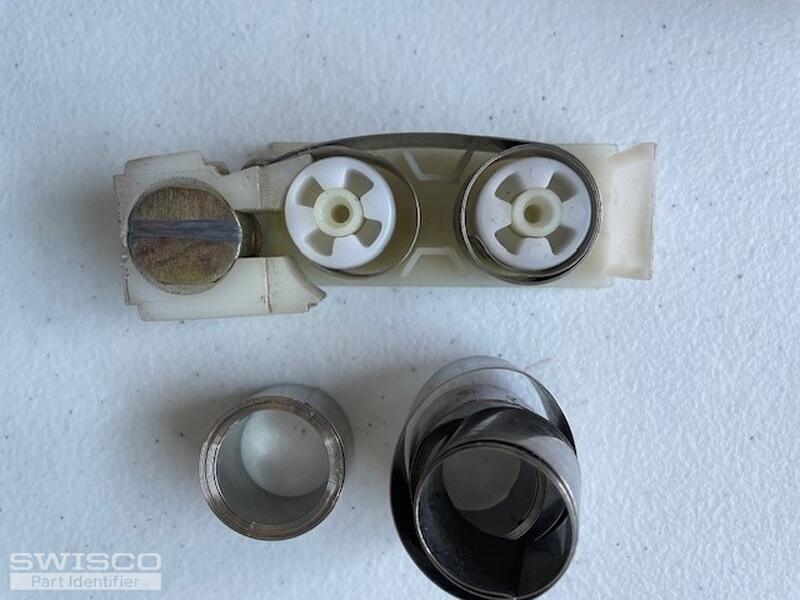

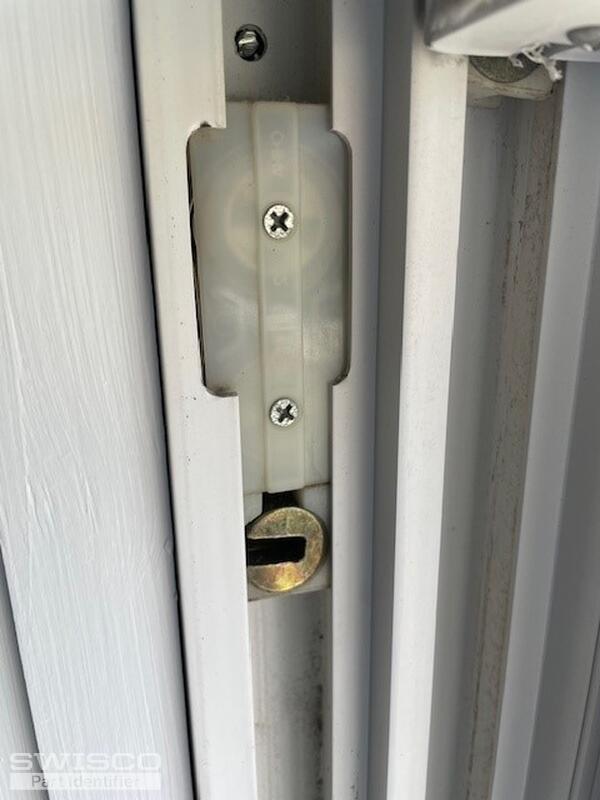

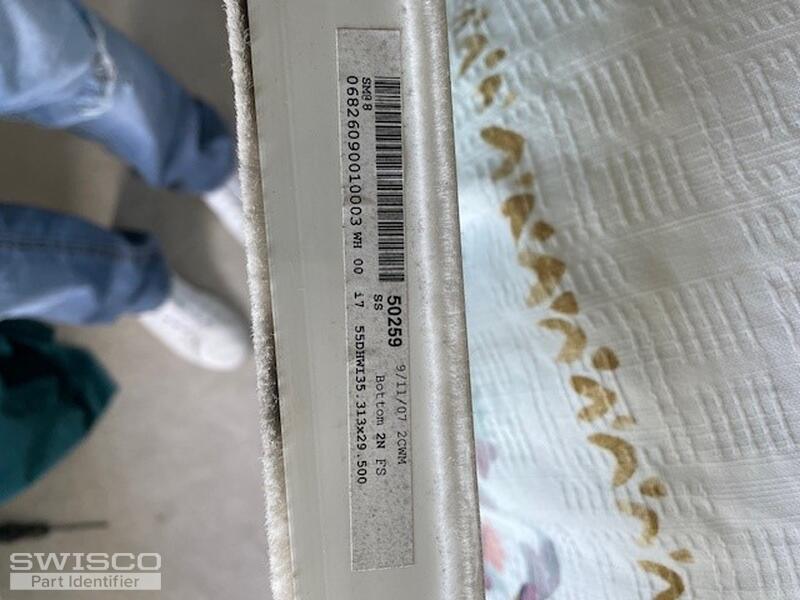

I'm looking to replace a broken coil balance on my Simonton window. Pictures attached including the broken part, a good one that is still installed and the Simonton label, looks like the window was mfr'd in 2007. Hope you can help.

Thanks,

Rob

3 user uploaded images

4 Replies

Casey from SWISCO

Apr 10, 2024 11:51 am

Hello,

Take a look at the conversion video shown below, which we recommend for the works for Simonton windows that use this type of assembly. Review the full process below and let us know if you have any other questions. Thank you!

Handy Person from Perkasie, PA

Apr 12, 2024 10:42 am

HI Casey,
Thanks for sharing the video, seems pretty straight forward. I have a question about the weight of the S159 that I would need to order for my window. I don't see a weight stamped on my broken part, can you recommend what weight I would need based on the window size or something else?
Thanks,
Rob

Casey from SWISCO

Apr 15, 2024 8:21 am

Sure, we would just need to know the exact weight of your window sash. From there, we'll divide the total weight by the number of coils used in your windows to determine the strength options needed for the S159 replacements.
