Simonton window locks

Home Owner from Manheim, PA
Our Simonton windows were installed 2003
we are looking for replacement locks for all our windows (18 locks)
back 2 screws measure 2-1/4" against glass part
3 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

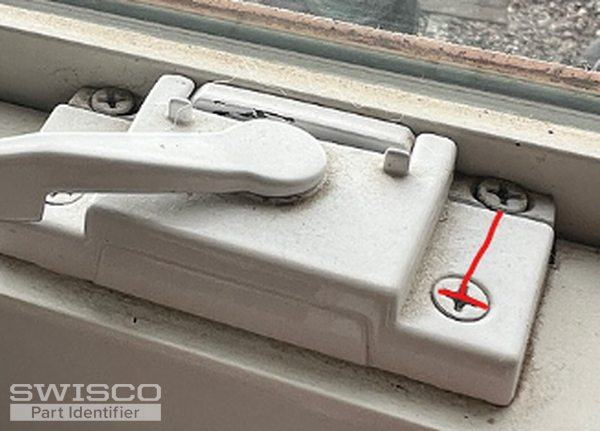

Thanks for reaching out to us. Can you write out the distance between the two installation holes, measured from center to center, for the lock? Can you also write out the back set? That's measured from the center of the installation hole to the top of the lock's body as shown below.

backset
Home Owner from Manheim, PA

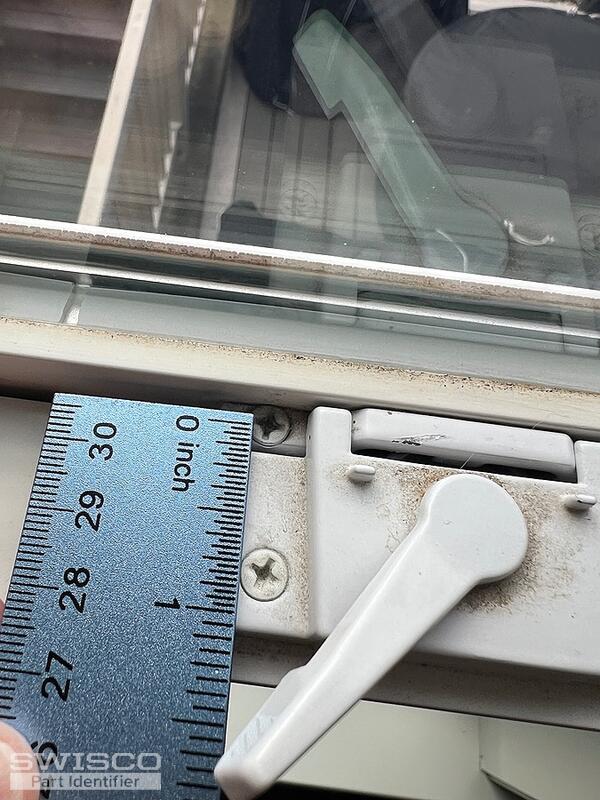

Here is the dimensions
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

I'm afraid we can't read accurate dimensions from a photo of a tape measure. We will need to know the written/typed out installation hole center spacing and backset to confirm if we have a comparable match.

Thank you!

Home Owner from Manheim, PA
7/8" center to center

5/8" back set
Emily
Emily from SWISCO
SWISCO
Expert

I'm confused by your 7/8" measurement; the installation holes look farther apart than that. I know in your initial post you said that keeper's screws measure 2-1/4" but I don't know if that's measured from center to center or if it's the same for the sash lock.

Assuming it is, we do have the 90-274 but the backset is 11/16", not 5/8". We recommend you double-check and confirm the specifications to be sure.

Dimensions for 90-274
Dimensions for 90-274
