Simonton windows

Question

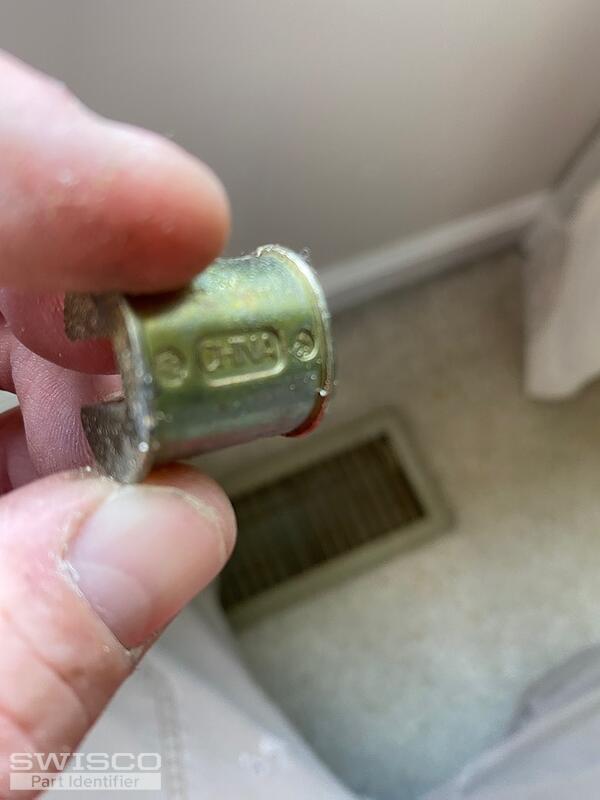

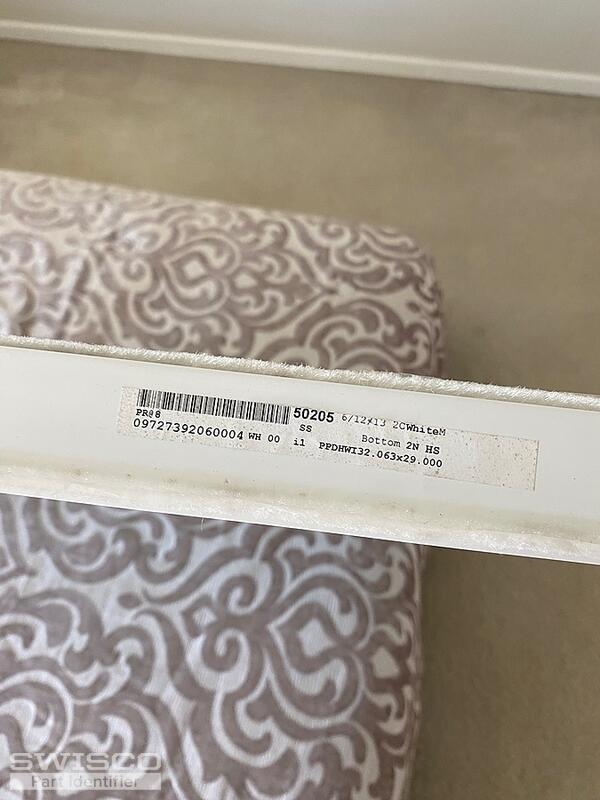

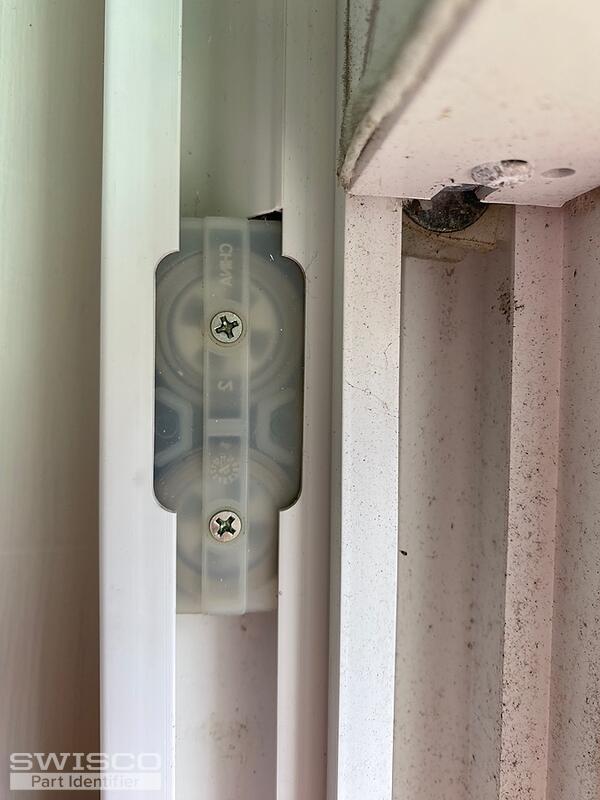

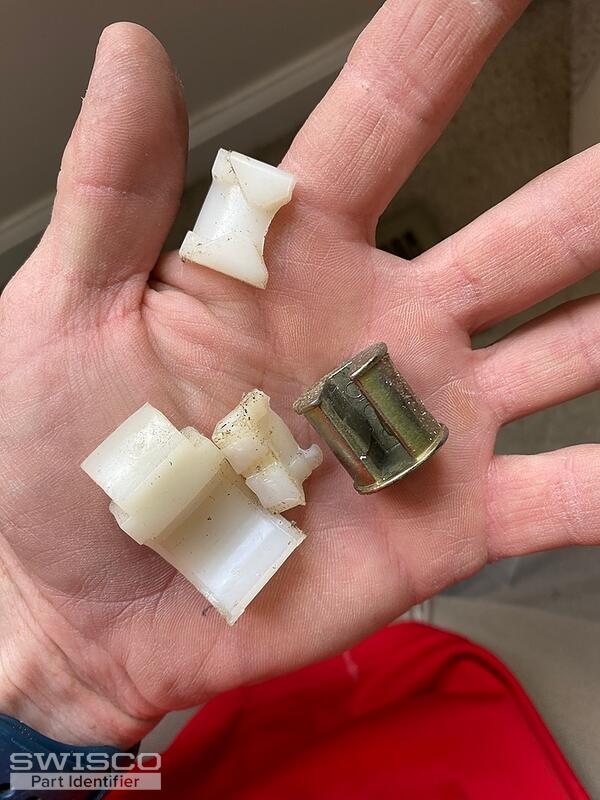

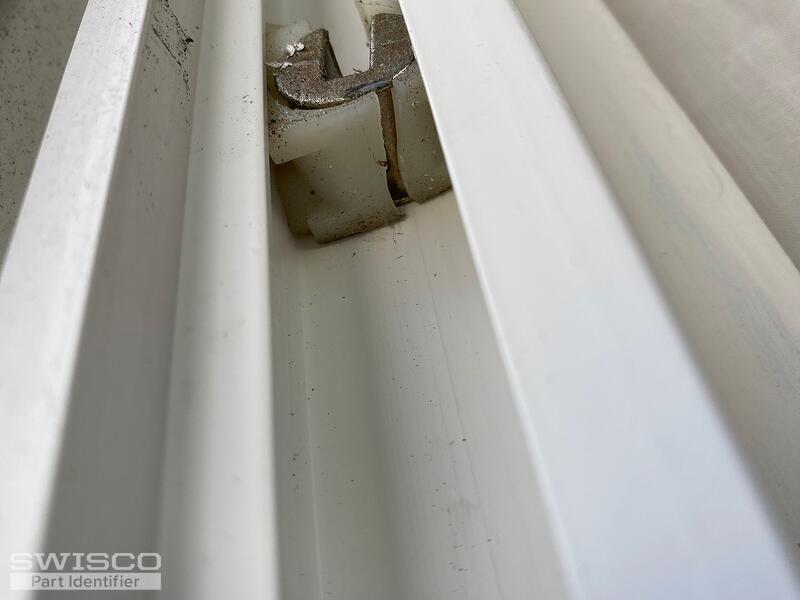

Bought two pivot shoes, but I think I got the wrong ones after trying to install one realize that it was super tight and broke the other side so would like to replace both sides here all the pictures and hopefully you can help me out. I will pivot the pivot bars Springs and coal Spring/covers

Casey · Accepted Answer

Hello,

Your pivot shoe does resemble the 15-192 but past customers have often reported needing to shave down the front for installation. Just keep in mind that parts can not be returned once they are modified. The 15-192 uses the S170 and S171 coil springs, as well as the related support hardware.

We also offer a conversion video below that will work for Simonton or Certainteed windows. Take a look to see which option you'd prefer. Thanks for posting!
