Simontonsingle hung window parts

Home Owner from Albany NY
Hi I am needing parts for Simonton single hung windows installed in 2000.
Tilt latches ..2 left and 2 right sides
Also may need to replace coil for left side of one window.
Thanks for letting me know if you have these replacement parts.
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

Most Simonton vinyl windows use the 26-243 and 26-244 top tilt latches but we can't say for sure without seeing the original latches and knowing the dimensions.

You will also need to remove the coil spring and see if it matches the Series 170 short tongue or Series 171 long tongue. There should also be a stamp on the original coils that will tell you the spring weight needed for the replacement springs. Thank you!

Home Owner from Albany NY
Latches mead 2 5/8" x3/4"
I will send coil info later.
See photos below.
Thank you.
Mary

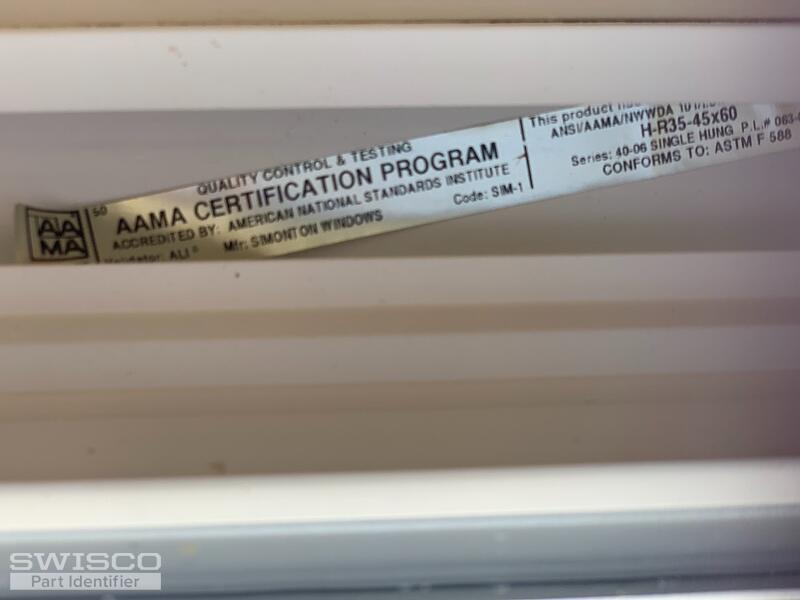

4 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

It still looks like our original recommendations would be your best bet but you'll need to remove an undamaged latch and coil assembly to make sure that all of the specifications match the information on our product pages.
