Single hang window channel balance

Quick Learner from seattle
I'm not sure which model I should buy for my window channel balance.

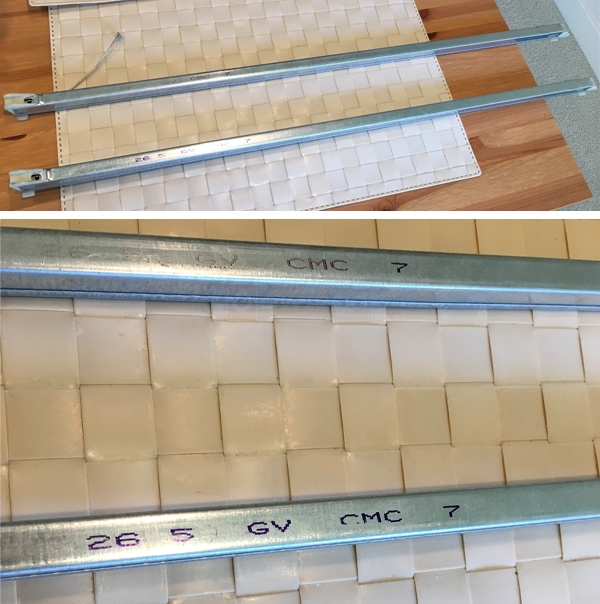

The stamp says "26 5 GV CMC 7" as the photo shows.
User submitted photos of a window balance.
3 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Looks like you have wings on the top and bottom attachments on your balance. The winged balances on our site are Series 380 and Series 385 . Measure as shown below to choose which one you have. The Series 380 has 1" deep shoe, and the Series 385 has a 1-3/32" shoe.

Measure your metal channel. Usually "26 5" is for a 27" balance. If that's what you have, choose S380-27 or S385-27.

Your stamp "26 5" suggests a "2650" stamp option for a window weighing 26 to 30 pounds, but you need to weigh to be sure of that. Once you have a Series, length, and option selected, you can add the item to your cart and purchase it online.
Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005
Quick Learner from WA
Thanks, that helps.
I've ordered online and hope it'll work out fine.
