Single hung Simonton replacement window (1995)

Question

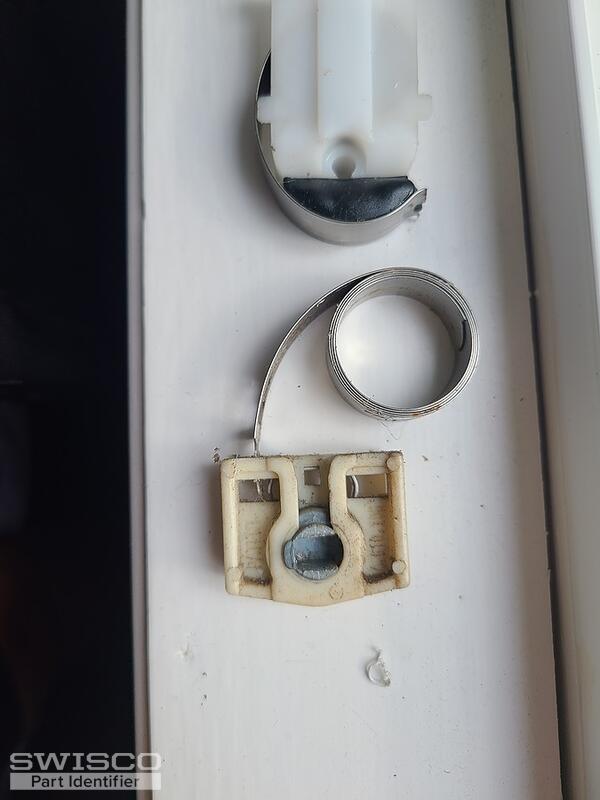

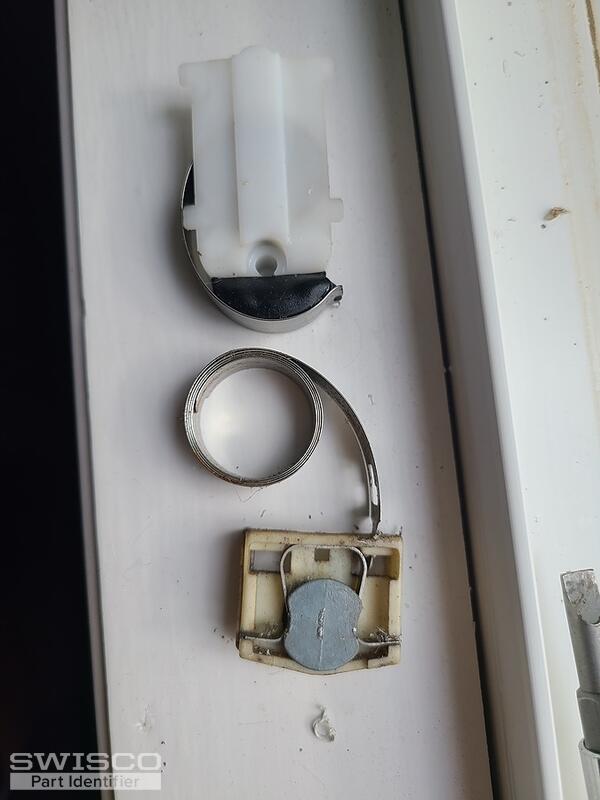

It looks like the springs on both sides of the window are broken. The channel is 1.25" wide. I didn't get a picture still installed(at our cabin, but could get them later if absolutely needed) The window sash is 28.5" wide. I haven't weighed them, but they are a small bedroom window. Maybe you can decipher more info from the model # picture. I appreciate your help with this, I just don't want to order the wrong product.

Emily · Accepted Answer

Thanks for reaching out to us. The 15-111 is a match for your old pivot shoe. The 1/2" Series 160 are used with this part, but you'll have to check the old spring band for a weight code.

Please let us know if you have any questions.

Alternate image for 15-111
