Single hung impact windows traco block and tackle balance

Quick Learner from Florida

Windows are 52"W x 63" H.

Numbering on block and tackle balance 23 DS. 3.S.1 and RR 39

metal end to metal end is 24"

Correction balance is stamped 23BD. BSI and RR 39

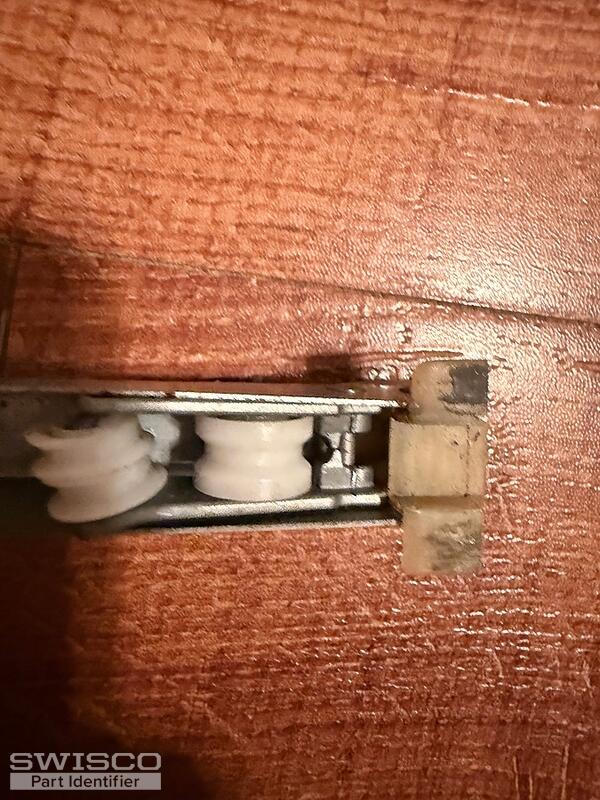

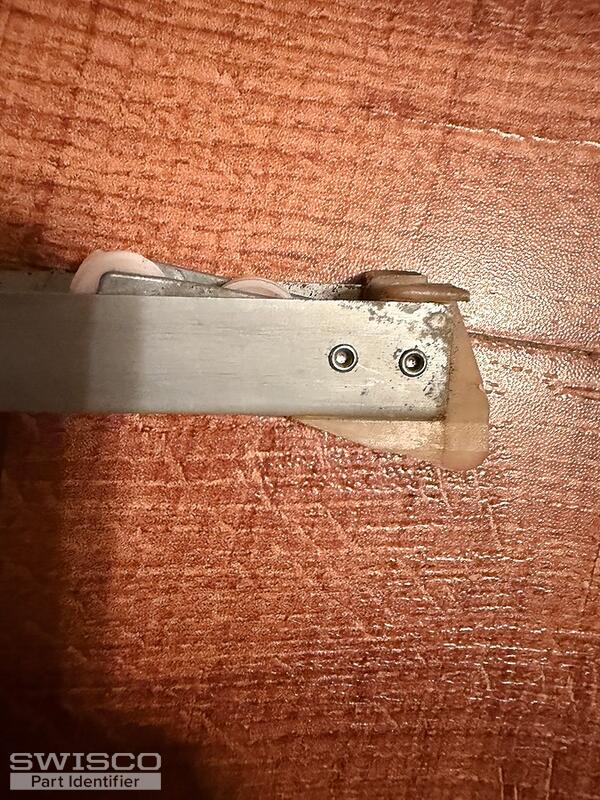

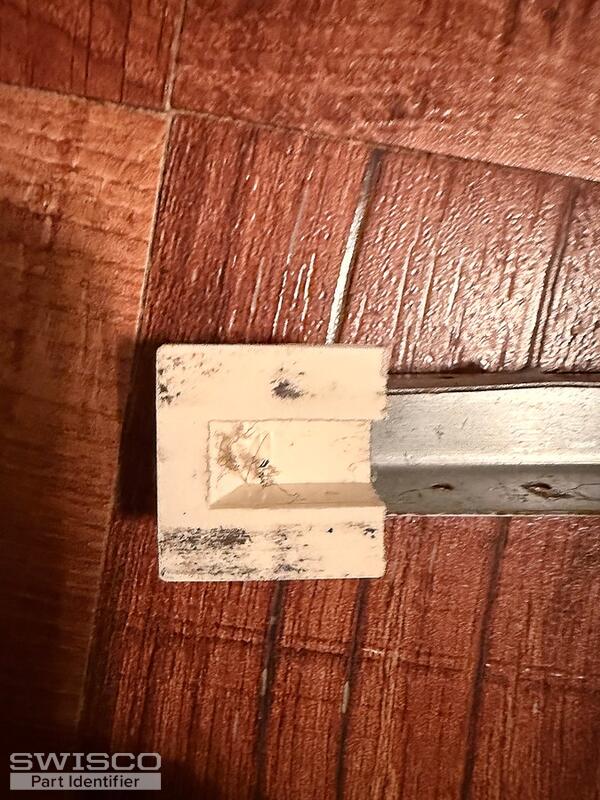

3 user uploaded images
11 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. I am confident we can replace these balances for you; however, the stamp code of 23DS 39 implies this might be a balance for an extra-heavy window. Can you give us the exact weight of your window sash? That exact weight will help narrow down what you need. Many thanks.

Quick Learner from Florida
It is a heavy hurricane impact window, I will be back in town on Friday and will weigh for you.


Thanks you
Bob
Bob from SWISCO
SWISCO
Expert

Sounds great. We will be here waiting.

Quick Learner from Florida
The window weighs 38lbs
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for getting back to us. I am sending you an email with a custom link to order (2) of these balances. If you have any questions or need a different amount, just let us know here in the discussion before ordering. Many thanks.

Quick Learner from Florida
I need 4 balances,

Thanks
Bob
Bob from SWISCO
SWISCO
Expert

No problem. I just sent you an email with an updated custom link to order (4) of these balances.

Quick Learner from Florida
Can you provide me with a custom order as well? I have the same 2 windows.I would also need (4) of these balances. Stamp: 23 DS. 3.S.1 and RR 39 The window weighs 38lbs
Quick Learner from Florida
I have 2 windows.I would need (4) balances. Stamp: 23 DS. 3.S.1 and RR 39 The window weighs 38lbs. Please help me identifying it and let me know if you have it.

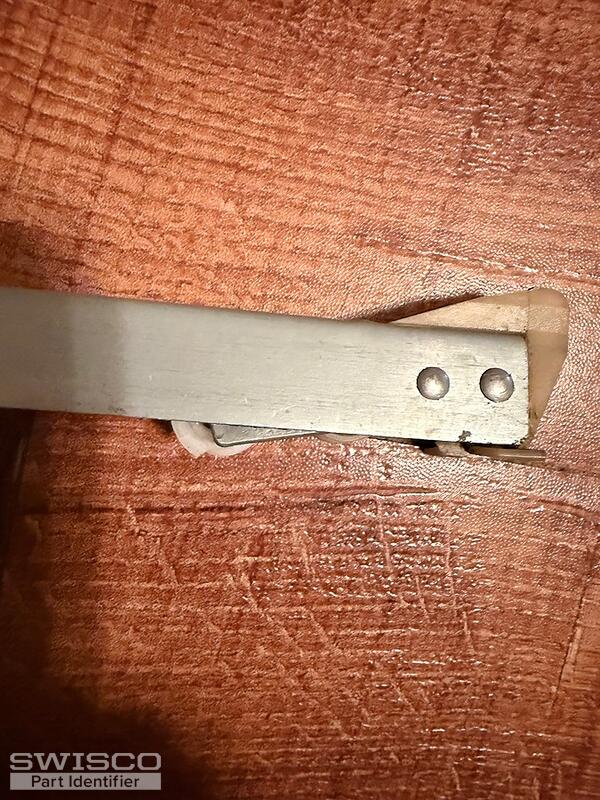

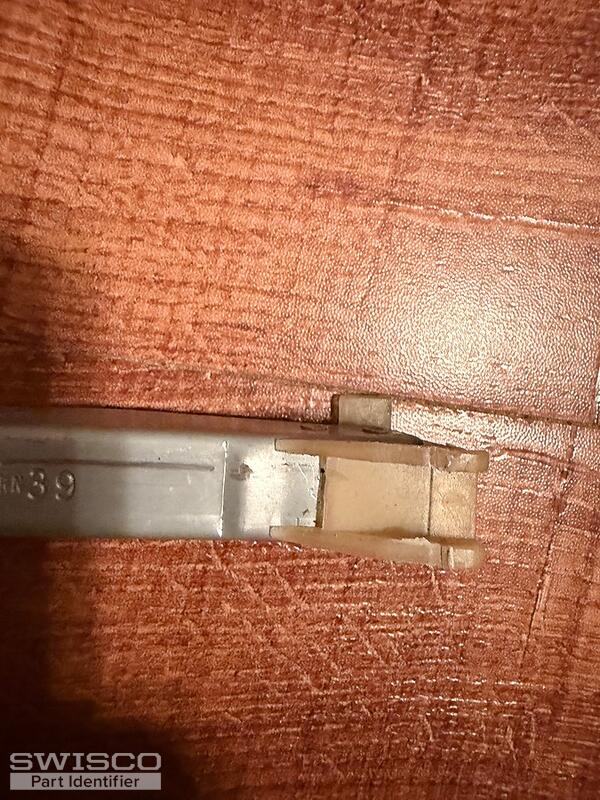

5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Certainly! I think we can actually use our 2375 stamp for this. Two balances with that stamp can carry 37 through 40 pounds, which matches your sash weight perfectly.

I'll go ahead and email you a purchase link and price quote that will let you add 4 of these to your cart. To summarize, this will be a 24" long balance with a 2375 stamp (37 - 40 lbs), a 19-041 top nylon fitting, and a 15-005 bottom nylon fitting.

I would recommend that you check your nylon fittings before you buy anything. I'm basing these off of the images that the previous customer shared at the top of this page, but I technically don't know if this is your same configuration or not. Custom balances are non refundable so please make sure to verify that these nylon fittings are correct.
