Single hung window balance

Question

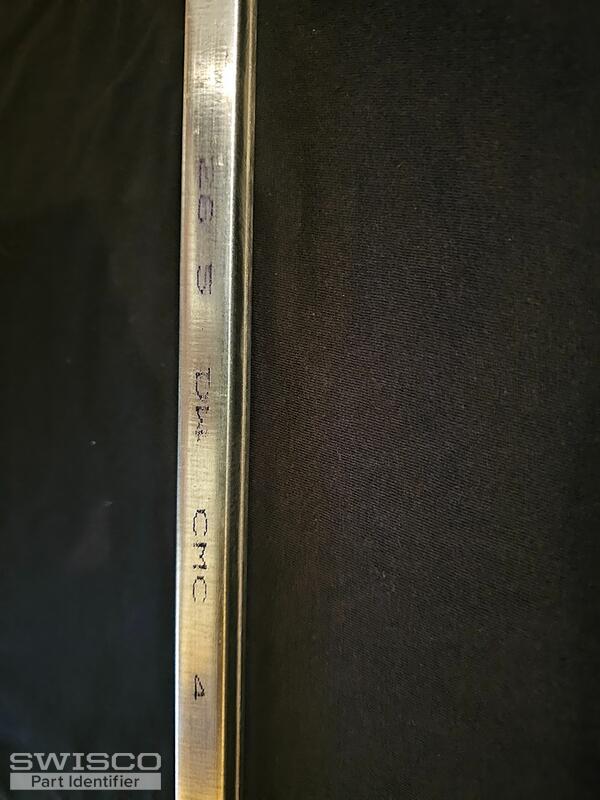

27" (metal only), with markings of "26 5 DW CMC 4" (Please see attached photo for verification)

Bob · Accepted Answer

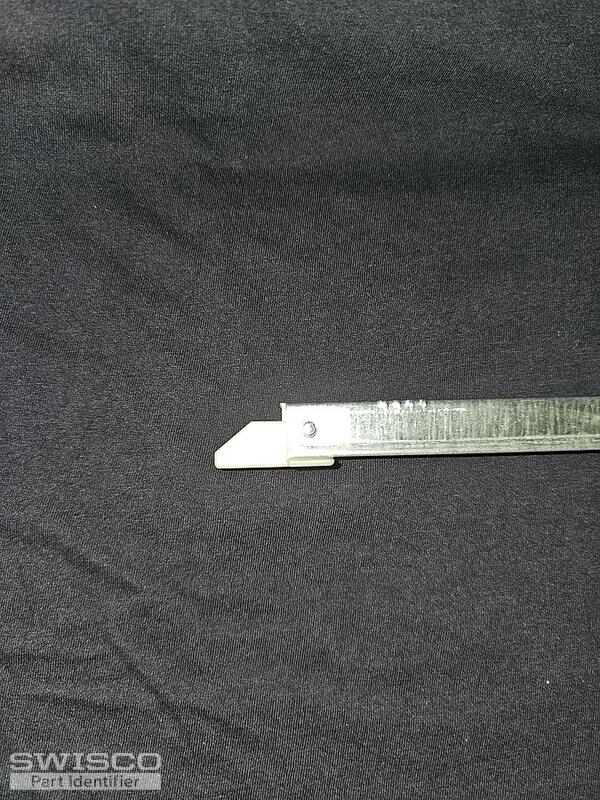

Thanks for posting. This appears to be either an S380-27 or S385-27 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the diagram below for reference. For a new stamp option in either case choose 2650.

Comparison of the S378, S380 and S385 balance shoes.
