Single hung window balance spring Replace

Home Owner from Phoenix

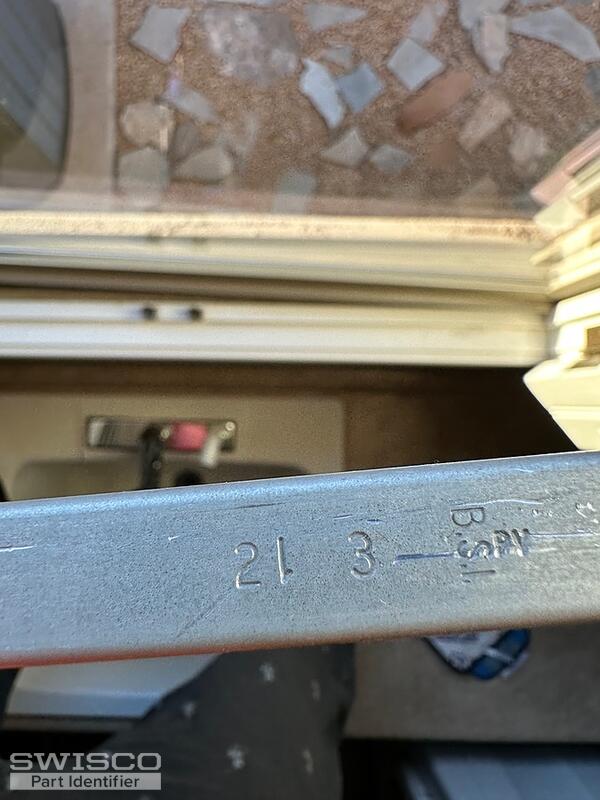

When opening window both springs dropped out.  Stamp is BSI 21 3.  Looks like shoe might be just over 1 inch.  These are 20 years old.  What model is replacement?
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

This window balance can be replaced with the S390-22 Channel Balance. Like yours, it is a wingless assembly with a 1-1/8" shoe depth.

You can likely use the 2130 stamp option but it may be a good idea to double check that your sash weight falls between 12 to 15lbs.
