Single hung window part

A quick learner from Loxahatchee FL says:

2930BSI

30" window sash part.

If you need additional photos, I have more.

Se t a previous email but have not been contacted so I thought there might have been an issue with the email

Shana

Thumbnail of the uploaded file named 44EB4BA4-E9C9-4A7D-9A00-DBDE5AB4085F.jpeg
Thumbnail of the uploaded file named 15DF2109-94CB-4C2B-B924-BD29C9AA3732.jpeg
Thumbnail of the uploaded file named 9E33167C-5443-4D66-9B81-276AF618A8EC.jpeg

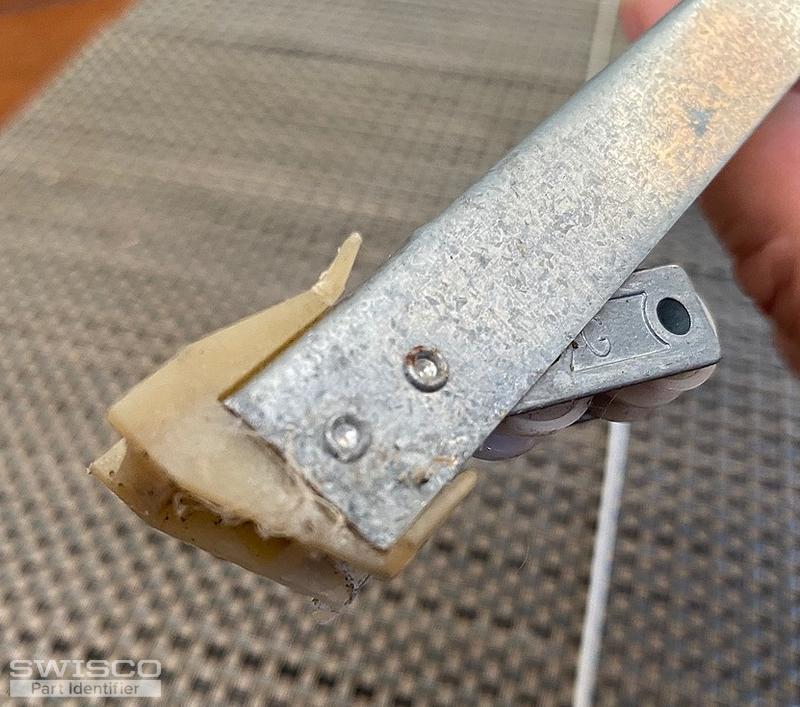

Thumbnail of the uploaded file named 73634758-67E3-4C1D-89AD-0CEF713B9599.jpeg

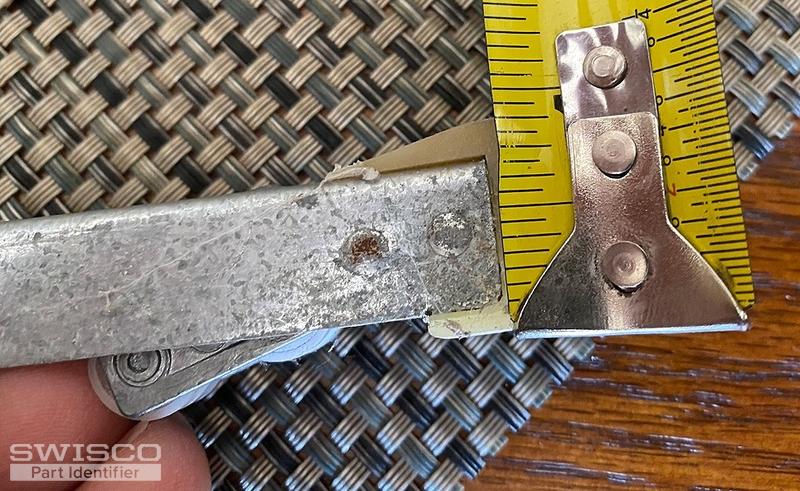

Thumbnail of the uploaded file named E4DA3211-CFF7-4F9D-99DA-CB361811C9CC.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hi Shana. First, look at our S380-30. The bottom nylon shoe for this balance, our 15-005, has a depth or 'heel-to-toe' measurement of 1". However, it looks like your bottom nylon shoe has a depth closer to 7/8". Can you confirm this? If so, then you need a custom balance with our 15-029 7/8" shoe attached. We'd be happy to make these up for you. Just let us know. Many thanks.

A quick learner from Loxahatchee FL says:
Sorry I forgot to do this.

Here are some pics because we aren't sure what measurement you need. We need this for two windows.

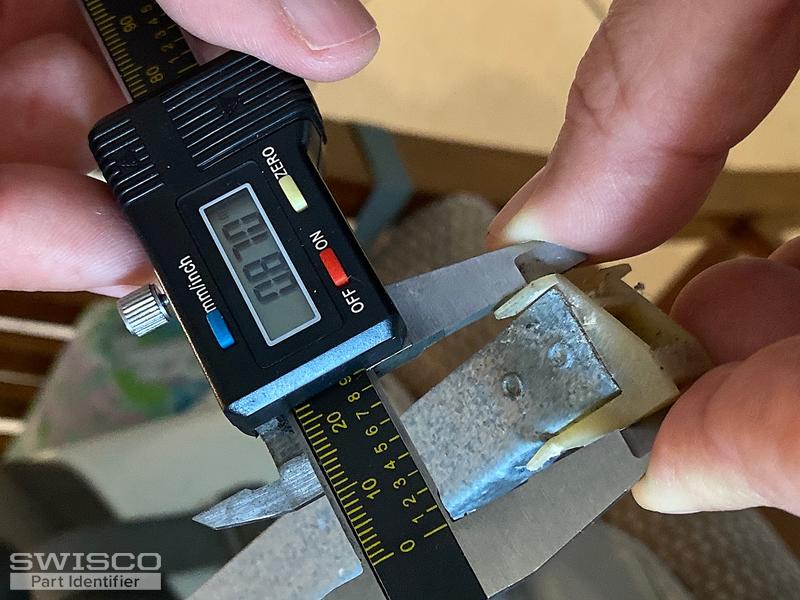

Thumbnail of the uploaded file named 450751B6-C25B-45FF-9C8C-A5F8C011C1AB.jpeg

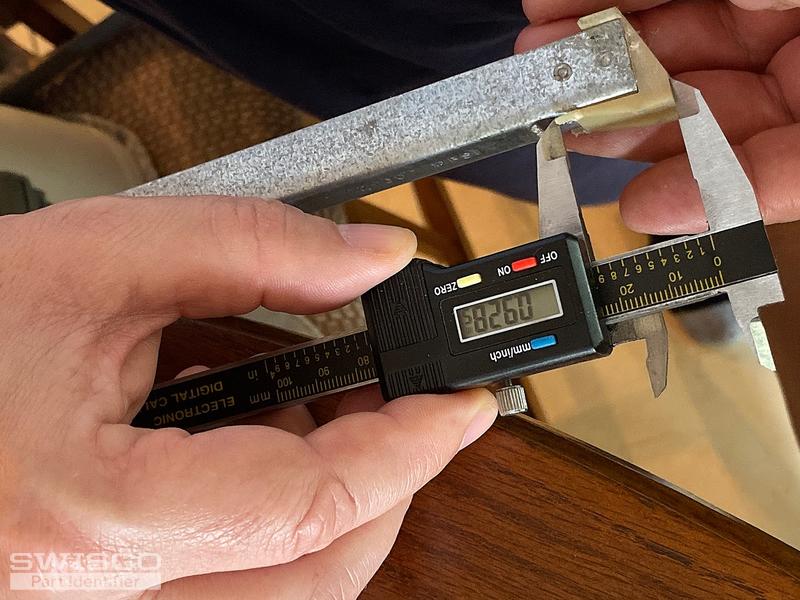

Thumbnail of the uploaded file named CD4D5886-93E3-4EB1-B5F1-84F0CFDA1622.jpeg

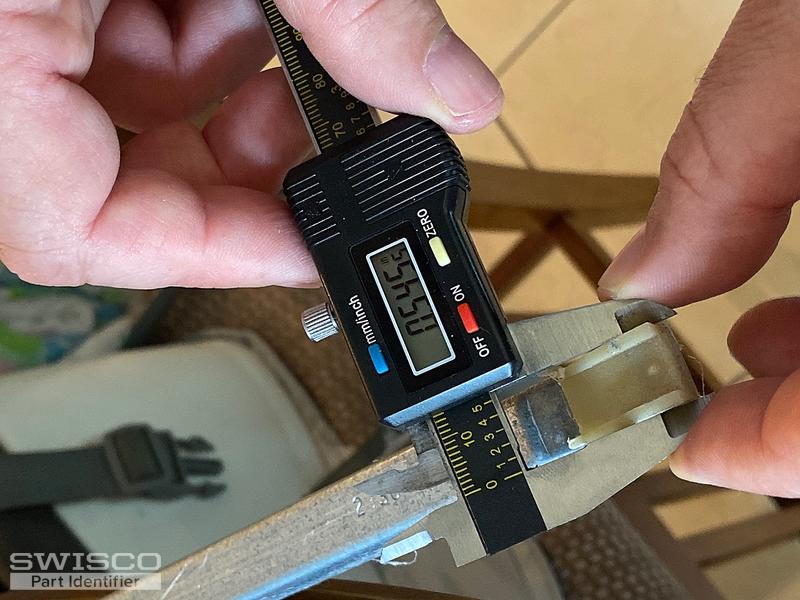

Thumbnail of the uploaded file named 7EF1BD16-35F3-483B-853E-FD18AC432DDE.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for getting back to me. The shoe depth is 7/8", so you're going to need a custom built 30" balance with the 19-005 top and 15-029 bottom attached, and with a stamp option of 2930. I have sent you an email with a custom link to order (4) of these balances. Let me know if you have any other questions.
