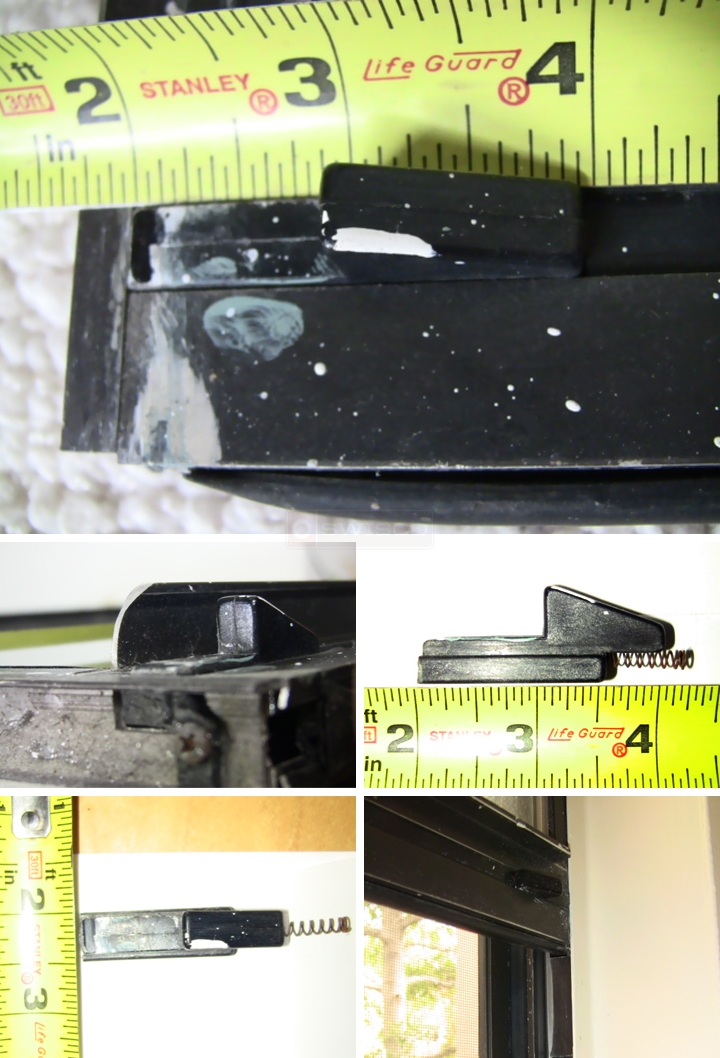

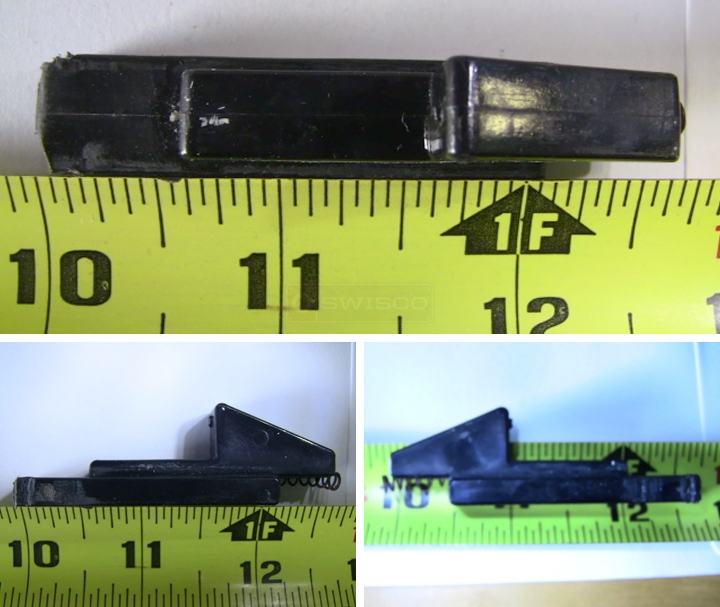

IMG_7761 is side profile minus broken tip which would extend about 1/2" to the left on photo.
IMG_7759 is top view of part as seen installed in window frame.
IMG_7762 is top view of part minus broken tip
IMG_7765 is window in frame. Visible is the metal strip the the latch tip would extend into to keep window open.
