Slider SCREEN LATCH for Silverline #5800 Slider : SWISCO.com

Home Owner from Epping, NH

Aug 14, 2023 10:28 am

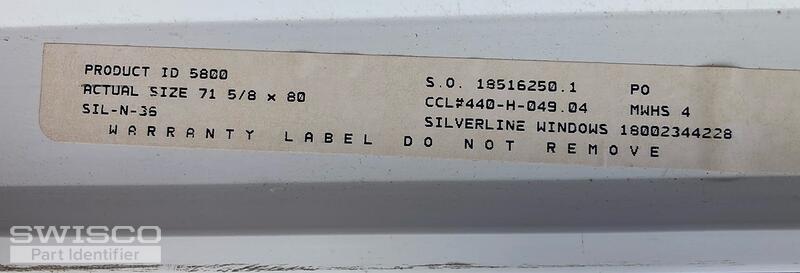

This slider unit is approx. 14 years old.

Thank You!

2 user uploaded images

4 Replies

Emily from SWISCO

Aug 15, 2023 10:50 am

Hi there!

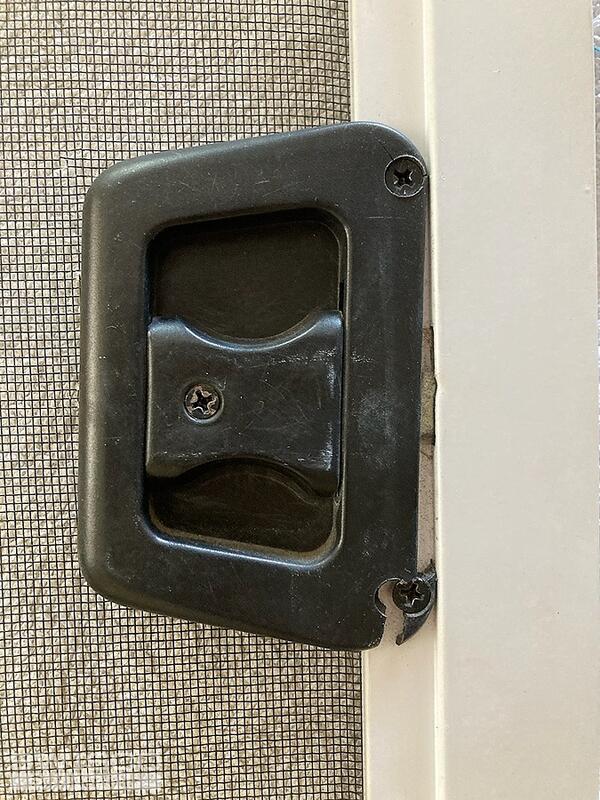

This latch reminds me of the 83-113. The inside latch measures 3" on the installation hole centers and the outside latch measures 2-1/2" on the installation hole centers. Have a look at the specifications and see if they match up with your old hardware.

Steel latch 83-113

Detail of 83-113

Home Owner from Epping, NH

Aug 15, 2023 12:10 pm

Hi Emily:

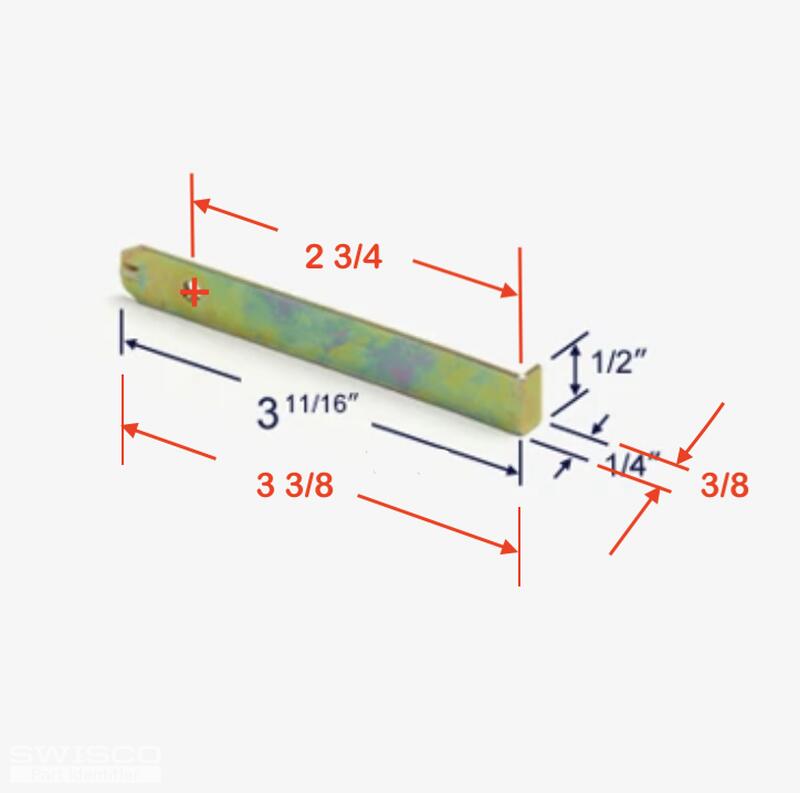

Thanks for your detailed reply. All of your dimensions for the plastic housing check out perfectly. However the metal latch is different. I inserted the dimensions I have in red. Maybe this is not an issue. Just note the location of the screw hole on the movable slide is critical. (unless I am replacing that as well)

It is 2 3/4" from end of latch to hole center.

Hope this helps!

Thanks, Robert

2 user uploaded images

Dave Sr. from SWISCO

Aug 17, 2023 7:46 am

I wonder if your hardware could be an older-style lock. If the newer metal latch won't fit, I believe you should be able to insert your existing latch.
