Slider door key lock

Start a new Discussion

Quick Learner from USA

Jun 30, 2017 8:46 am

Need a keyed lock set for this door.

Slider door screw distance is 5 3/8 top to bottom.

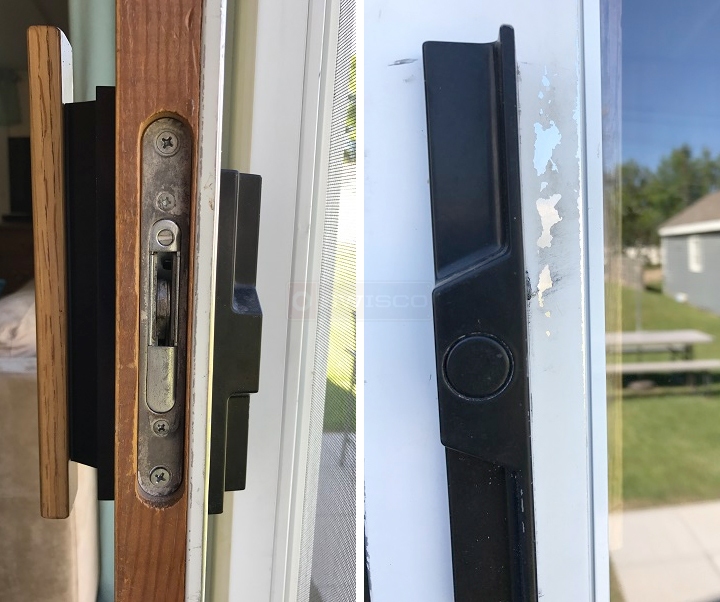

User submitted photos of patio door hardware.

4 Replies

Tom from SWISCO

Jul 5, 2017 11:42 am

Take a look at our 82-306, I think this could be a simple solution.

Quick Learner from USA

Jul 19, 2017 11:23 am

I have installed the new keyed pull but when my door is in the locked position the key can only turn to 10 O'clock and I can't remove the key in that position. I have tried turning the key spindel to different positions and I have the cylinder installed with the leg in the up position.
How can I fix this?

Dave Sr. from SWISCO

Jul 25, 2017 9:40 am

Hmm... I'm not sure why you're having this problem. You said you reinstalled the cylinder and tried turning the key tail in different positions, which is usually the first step we recommend, so you're already ahead of the take. I have one other idea, though. Take a look at your current mortise lock and note the position spindle hole. Key in the 82-306 is meant to work in mortise locks that have a 45 degree slot to accept the tail. Is yours also 45 degrees? If so, then I don't know what else would be causing problems. You might need to try a locksmith to see if they can offer any insight. It may require hands-on experimentation.
