Slider door tandem wheel assembly

Home Owner from Dracut MA

Jul 28, 2014 3:24 pm

I would like to replace this wheel assembly.
Do the wheels straddle a track or do they ride completely within a track?
Thanks for your response.
Mary

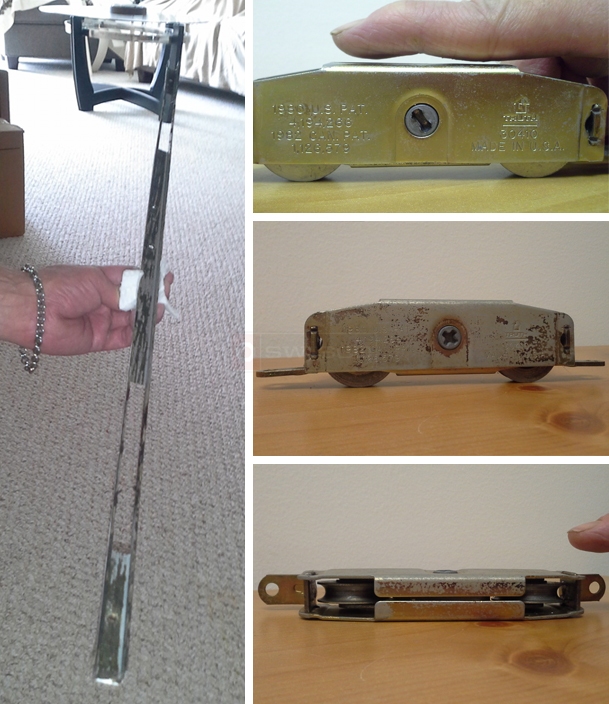

User submitted photos of a patio door roller.

5 Replies

Home Owner from Dracut MA

Jul 28, 2014 3:26 pm

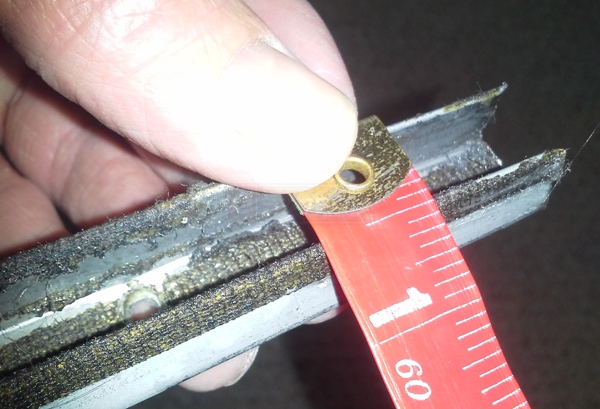

Here's another pic of the slider rail.

User submitted a photo of patio door hardware.

Paul from SWISCO

Jul 29, 2014 11:49 am

The roller you have looks like our 81-018. I believe after you screw in the rollers to that track piece, you snap it back on the door.

Home Owner from Dracut MA

Jul 30, 2014 3:42 pm

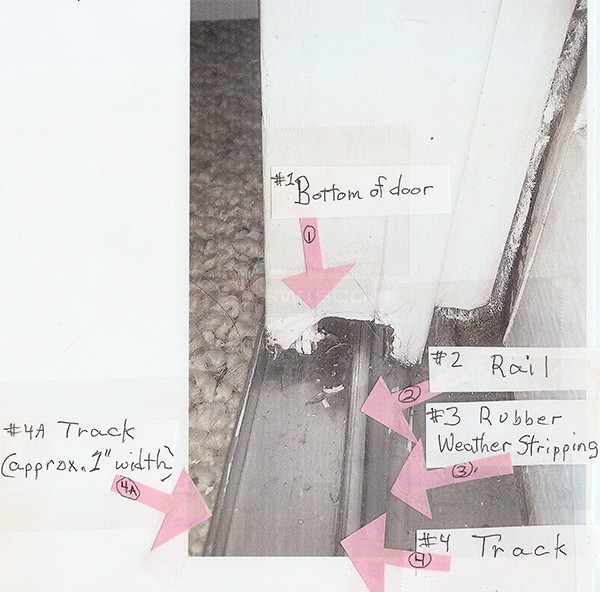

This is to clarify my question:
See photo #1 attached.
Do the tandem rollers ride *in* the track (approx. one-inch width)?
Or do the tandem rollers ride *on* the rail?
Re: photo #2.
Also, regarding the piece of weather stripping that inserts at the bottom (under the door *after* removing tandem rollers): is this a replacement item?
Thanks for your response.
Mary C.

Tom from SWISCO

Jul 31, 2014 8:39 am

These rollers ride on the rail. You can tell because the wheels are concave. As for the weatherstripping, I'm not sure if we have that. Is there any way I can see a clearer picture, though, just in case?
