Sliding Closet Door Tracks replacement : SWISCO.com

Quick Learner from West Covina, Ca

Jul 28, 2024 2:23 am

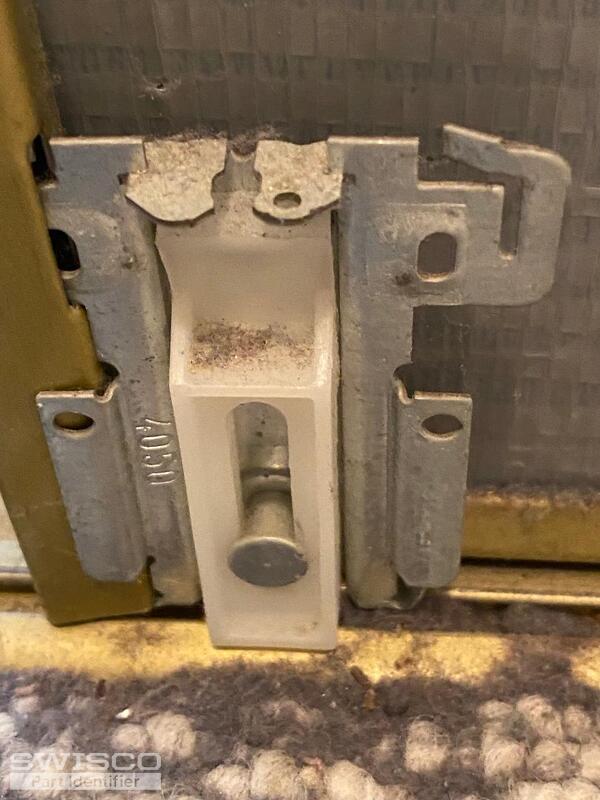

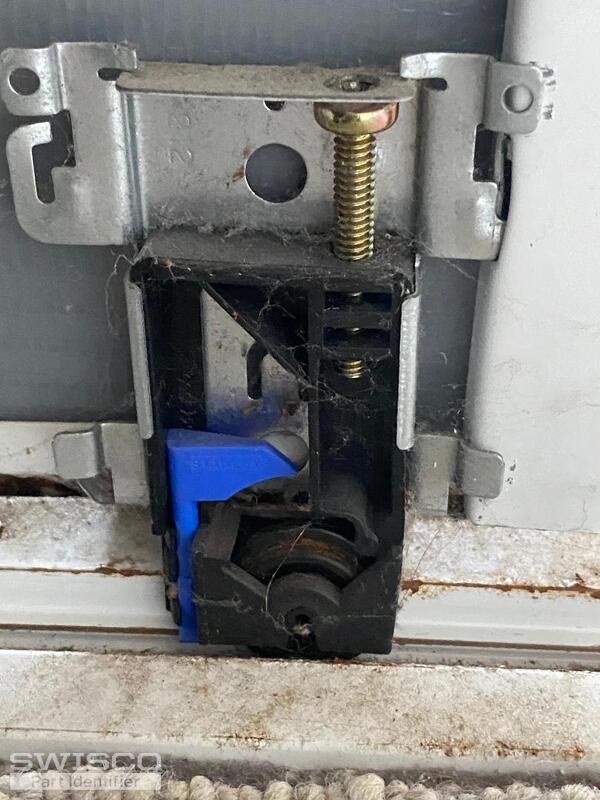

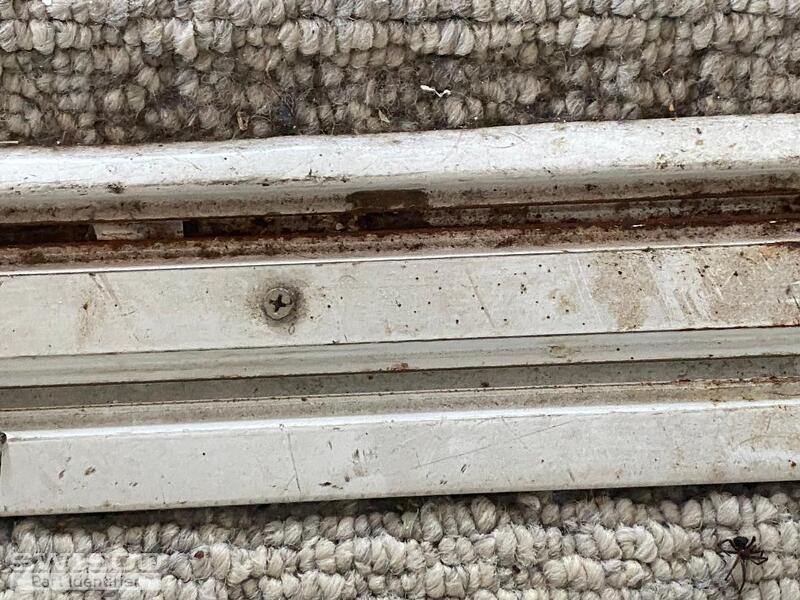

Hello, I need to replace the tracks for these bottom sliding door guide. Which tracks should I purchase for them? I also attached one of the tracks (pic 3) for reference that was used on the guide (pic2).

3 user uploaded images

7 Replies

Bob from SWISCO

Jul 28, 2024 12:58 pm

Hello there. These bottom guides look similar to our 23-041 or 23-215, both of which work with tracks that accommodate convex wheels. See our 23-240, 23-241 and 23-242 tracks. If the distance between the rails, as shown below, matches your old track, I think this style can work for you. Take a look and let me know what you think.

Profile view of sliding mirror door bottom track

Quick Learner from West Covina, Ca

Jul 28, 2024 1:51 pm

thanks for your quick response. Does the rail come in 96" length?

Bob from SWISCO

Jul 28, 2024 11:52 pm

I am afraid it does not. However if you adjoin two of the 48" 23-240 Tracks together, that will give you the length you need. Let us know if you have further questions.

Quick Learner from West Covina, Ca

Jul 29, 2024 1:16 am

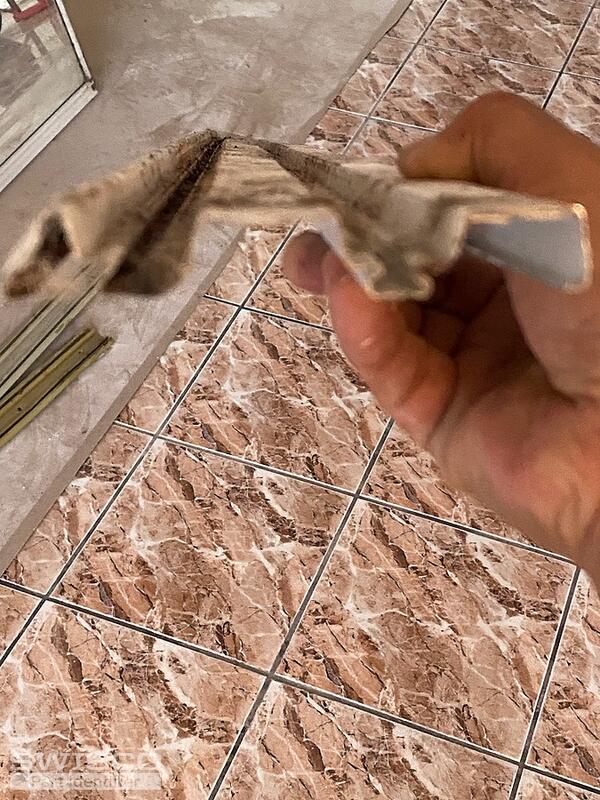

The 23-240 you suggested seems different then the old one I have. Is this a new design?

1 user uploaded image

Bob from SWISCO

Jul 29, 2024 1:34 pm

Yes, your track is an older version of our more modern 23-240. Despite the difference in design it should still work in the same applications.

Quick Learner from West Covina, Ca

Jul 29, 2024 2:28 pm

Ok got it..thank you
