Sliding Door Guide Assemblies for Vinyl Door

A contractor from Smithtown, NY says:
September 20, 2018

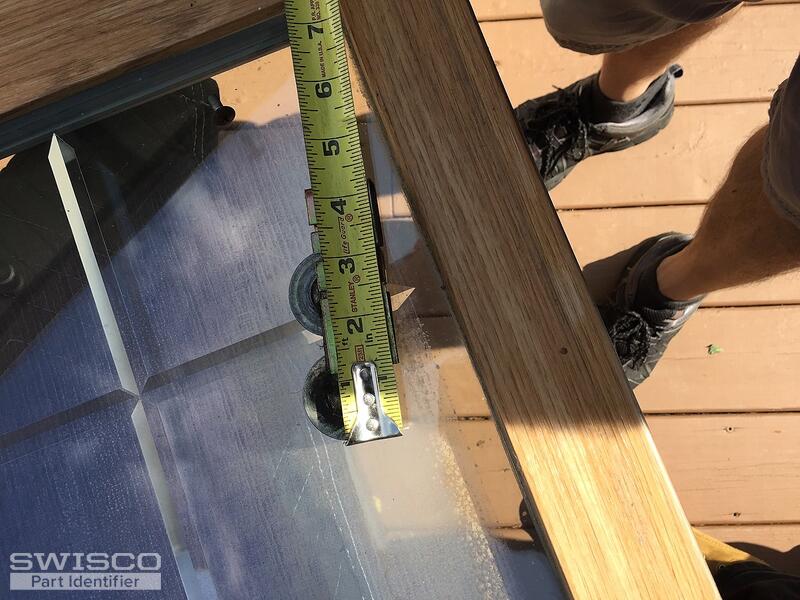

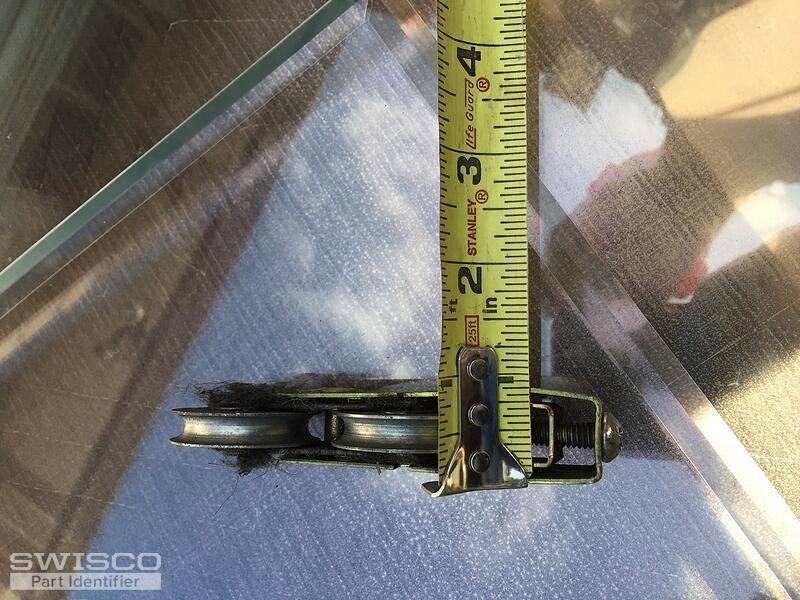

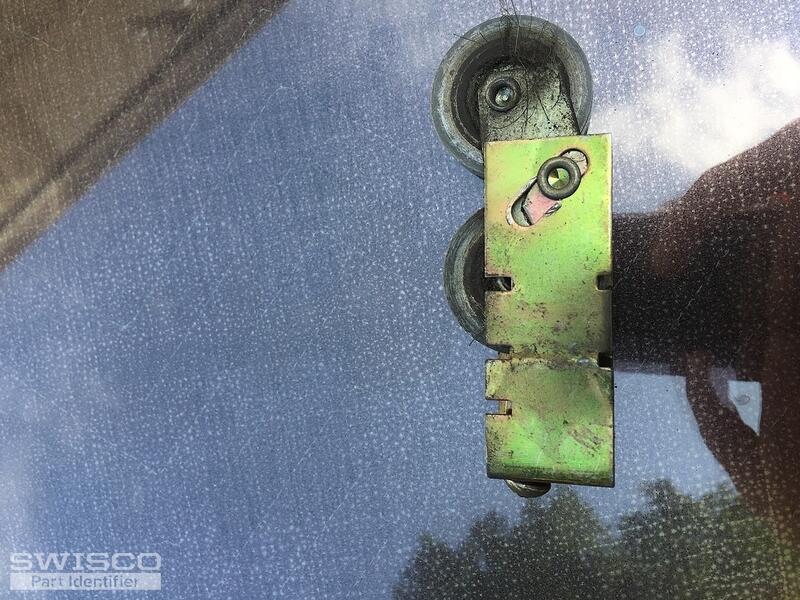

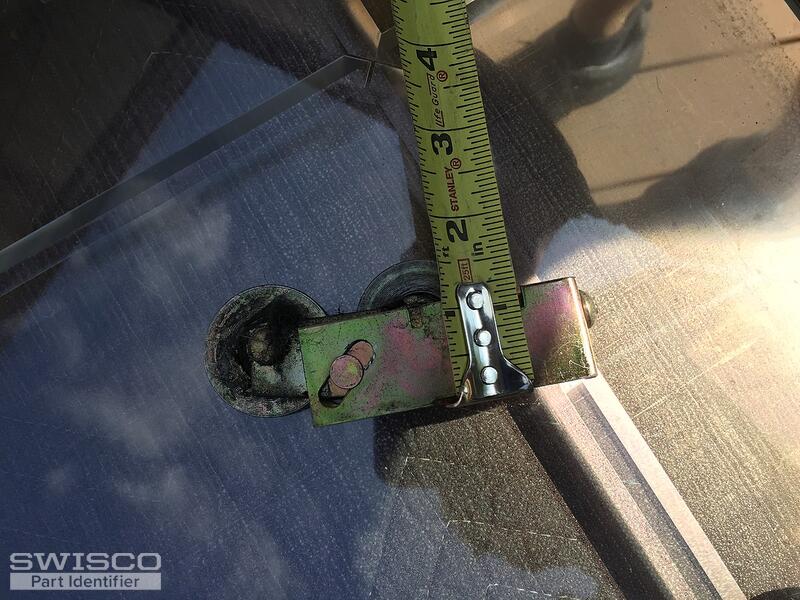

Please see the attached pictures of sliding door guide assemblies to recommend a match for the replacement parts.

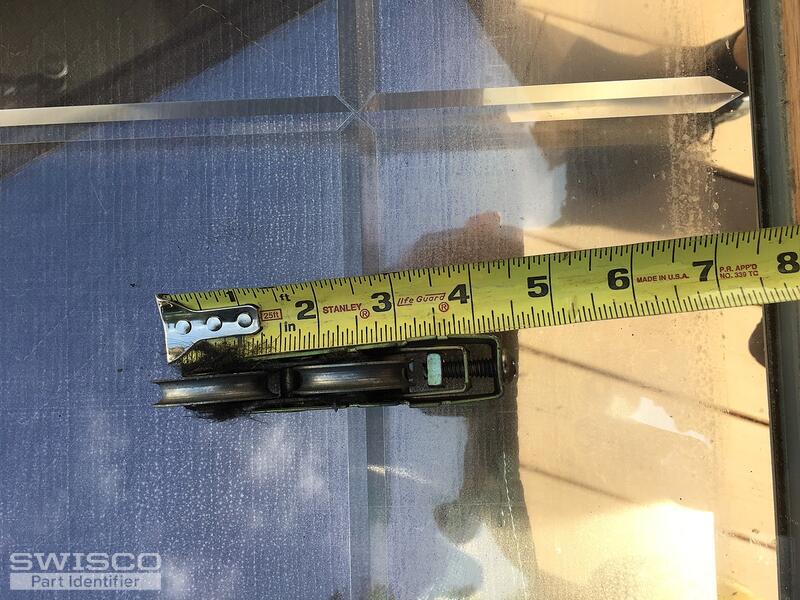

Length of assembly is 4 1/8".

Height is 1"

Width is 3/4"

I believe the wheels are 1 1/4" diameter. Not 100% certain.

Thank you.

Mike S.

Profile picture of Tom
Tom from SWISCO responded:
September 26, 2018

Thank you for your patience during this busy season, Mike. We don't have anything with your exact dimensions, and it's hard to make them out with just a tape measure. See our 81-030 or 81-095 to start out. These appear to be similar in design to yours.
A contractor from Smithtown, NY says:
September 26, 2018
The item looks just like your time 81-030 and The wheels appear to be 1 1/4? which also matches the 81-030.

I am hoping this item will work even though the length is shorter by 1?.

The width and height appear to match that same item #, too.

Crossing my fingers.

If you have any other recommendations, please don?t hold back

Thank you
Profile picture of Tom
Tom from SWISCO responded:
September 27, 2018

The overall length actually doesn't matter all that much. Thickness and height are much more important, as is the overall design of the roller. I think as long as those details match then the 81-030 is a great choice.
A contractor from Smithtown, NY says:
September 27, 2018
I?ll give it a try. Here?s hoping.

Thank you.
