Sliding Door Receiver

Question

Good morning,

My girlfriend and I recently bought a house and the sliding glass door seems to be missing the keeper/receiver.

Distance between receiver slots is approximately 3 3/4", and the total length is approximately 8".

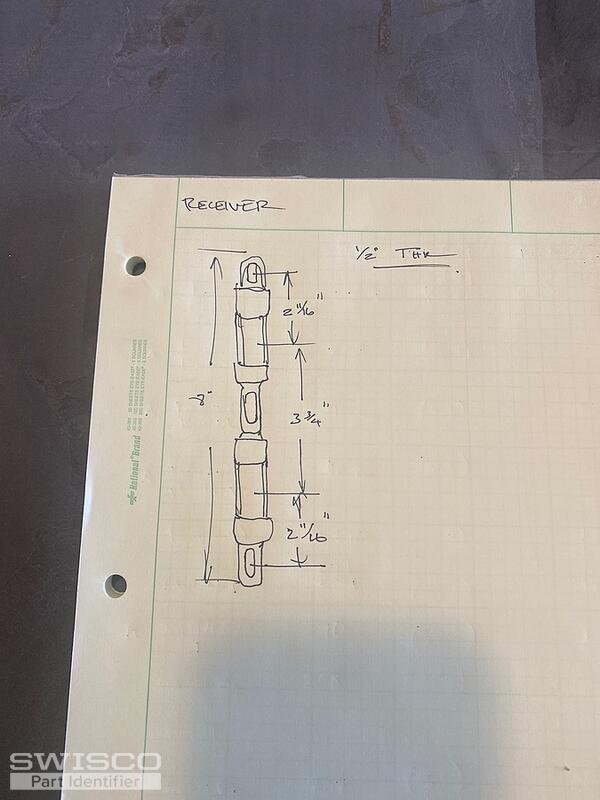

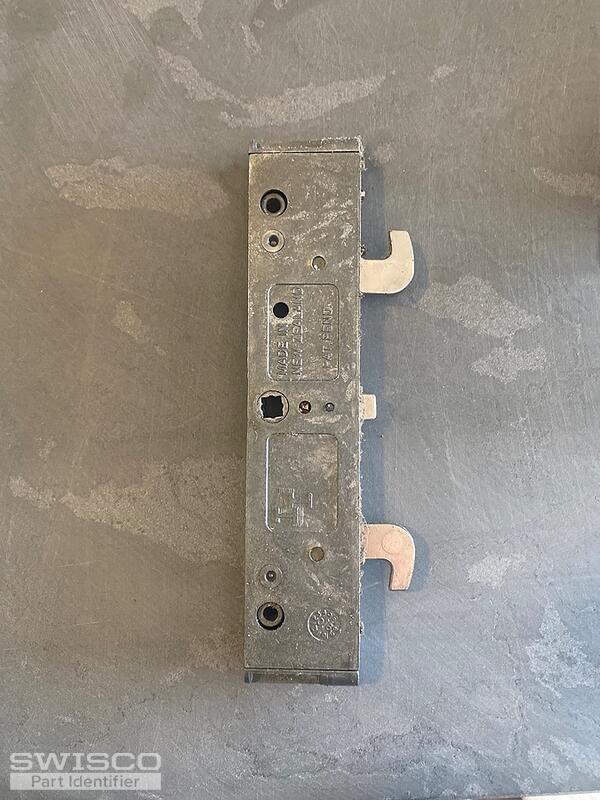

The current receiver doesn't appear to be stock, but I attached a quick sketch of its dimensions. It's for a double point mortise lock.

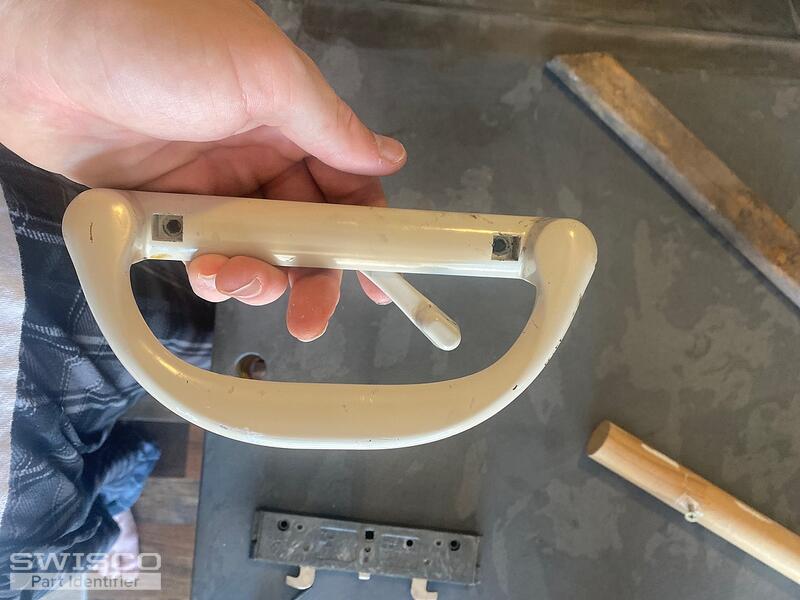

Is this your product you have in stock, or do you have a receiver/keeper that will work with this particular handle?

Thank you!

Bob · Accepted Answer

Thanks for posting. The mortise lock looks like our 82-238, which works with handle sets like the 82-080. We don't have an exact match for the keeper you sketch out; however, the 82-238 is compatible with our 89-030 and 89-036. Take a look at both items and see if you think you could adapt either to the door.

Alternate image for 89-030

Alternate image for 89-036

Additional dimensions for 89-036

Alternate image for 89-030

Alternate image for 89-036

Additional dimensions for 89-036
