Home Owner from Florida

Feb 8, 2024 4:49 pm

I would really appreciate any help you can give to identify (Part No) of this roller assembly so that I can order!

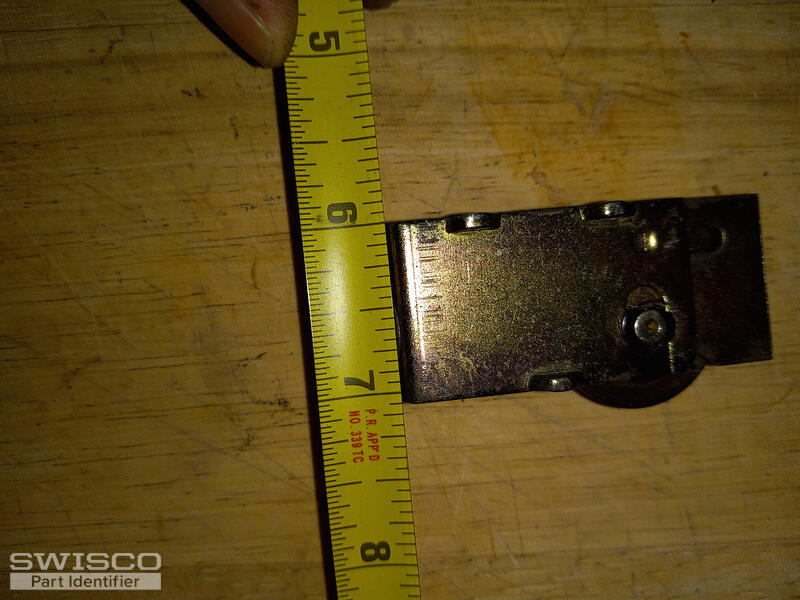

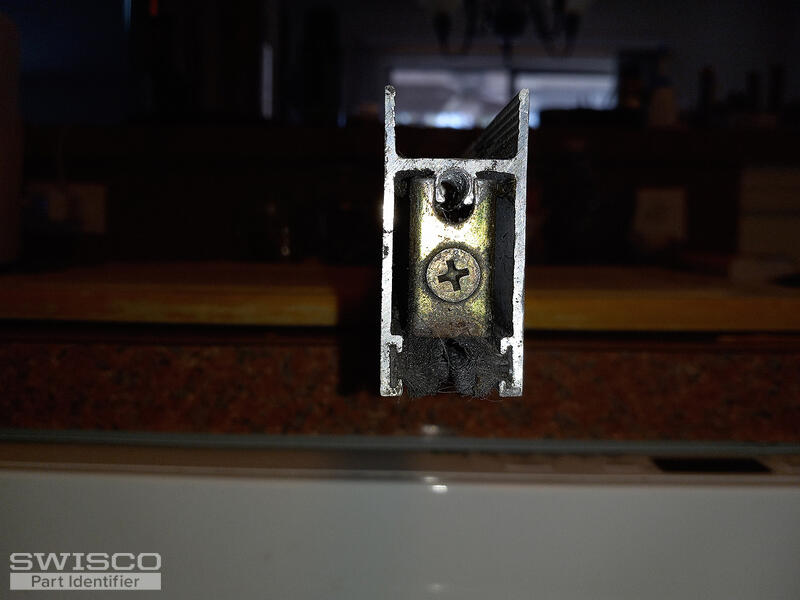

Case/Assy
Length 2 1/4"
Height 1"
case Width 1/2"
Ttl Width (w tabs) 3/4"
Roller
Diameter 1 1/16" to 1 1/8 Approx
Width 1/4" to 9/32 Approx

5 user uploaded images

4 Replies

Jasmine from SWISCO

Feb 9, 2024 1:10 pm

Hello,

Thanks for posting! Your patio door roller looks a lot like the 81-007 Remington Sliding Door Roller. Take a look over the dimensions. Double check them to confirm that this is the right fit for your door.

Alternate image for 81-007

Home Owner from Florida

Feb 12, 2024 6:43 pm

Hi Jasmine,

I cannot thank you enough for you help!

From the looks of it, you are right on! I will order the the 81-007 Remington rollers and give them a try.

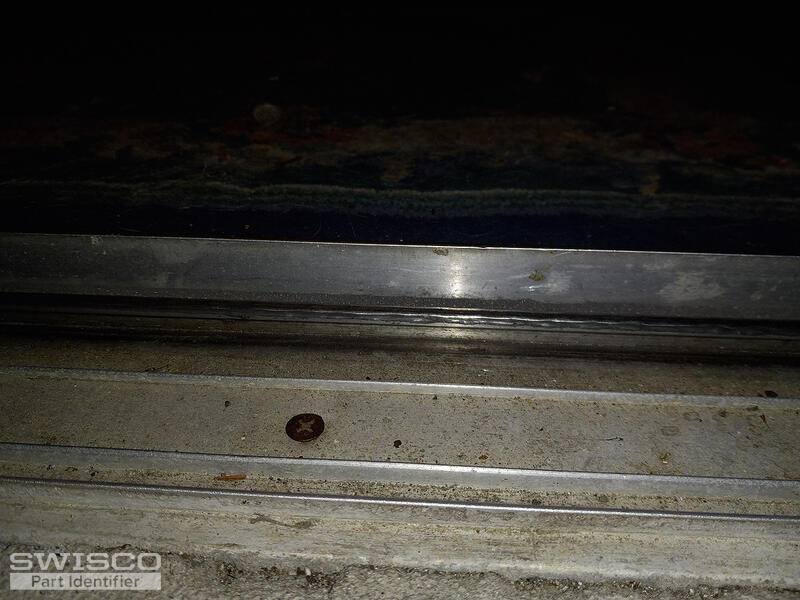

Do you recommend getting a "Track Cover", such as the "Track Cover, Small" Part No 80-102? The current track seems a bit "wavy", but I'm concerned that the track will be too wide for the roller.

And again...

Many thanks for your help!

Gary

1 user uploaded image

Jasmine from SWISCO

Feb 13, 2024 9:40 am

We're happy to help! As for your track, the 80-102 would work with the 81-007 wheel but you would need to confirm that the 1/4" by 1/4" opening would fit your track rail. We also offer the 80-106 track, along with the installation video below. Take a look to determine which option you'd prefer.

Dimensions of 80-102 Track Cover

Profile diagram of 80-106
