Sliding Door Trim

Question

Good Afternoon!
I have a sliding door on my house which I am having difficulty finding replacement trim for - probably because the door is an older model. The sticker on the door lists the following information: SGD-R30-144x81 Series: 7 SGD P.L# 646-014 Confirms to AAMA 1363. The trim is made of white plastic, has a 90 degree bend in the middle of it, and inserts in between the metal frame and glass. The trim's length is as tall as the door so approximately 81". The side that inserts into the frame is approximately 22.5mm long (from end of the piece to the 90 degree bend) and the piece that touches the glass (90 degree bend to the end) is approximately 12.5mm.

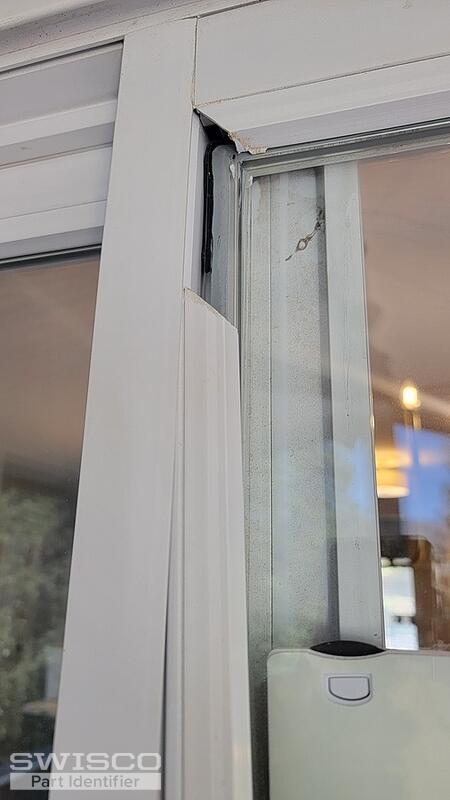

I've included pictures or it both installed and removed. Any help you could provide would be great - Thanks!

Casey · Accepted Answer

Hello,

It looks like you may be showing the glazing bead used to hold the glass inside the door frame. Unforutnately, we do not carry an exact replacement for the glazing bead shown in your photos. Our closest options would be the 55-011 or 55-015, but I'm not confident that either of them would work for your application. We'll include the dimensions from our product page below.

Profile view of 55-011

Profile view of 55-015
