Sliding Glass Door

A home owner from TX says:
March 9, 2021
Sliding glass door handle/lock jammed, when I tried to remove it the lock fell inside of the sliding glass door. I have attached a collage of the holes in the door, the handle, and the depth of the screw.
Thumbnail of the uploaded file named 20210309_173035.jpg
Profile picture of Tom
Tom from SWISCO responded:
March 11, 2021

I'm afraid I can't make out much from these photos. For your interior and exterior handle, can you flip them over and show me the front sides? Actually, if it is possible to mount them on the door (even temporarily) that would be a huge help. Can you also show me a photo of the hole where the mortise installed?
A home owner from TX says:
March 11, 2021
Here is the inside as well as the mounted handle on both sides.
Thumbnail of the uploaded file named 20210311_101851.jpg
A home owner from TX says:
March 11, 2021

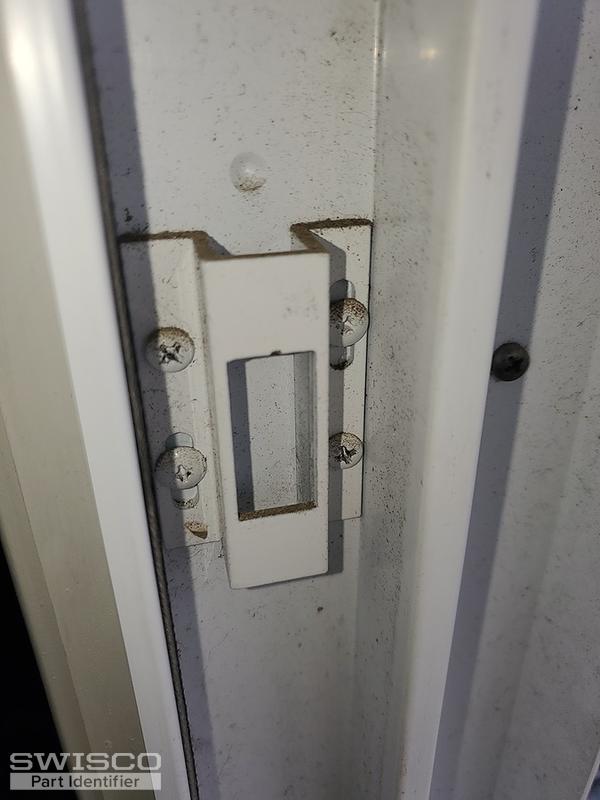

Here is the other door lock which is the same type. I'm afraid to try and take it out and have it fall in as well.
Thumbnail of the uploaded file named 20210311_104224.jpg
Thumbnail of the uploaded file named 20210311_104346.jpg
Profile picture of Tom
Tom from SWISCO responded:
March 11, 2021

These photos are a huge help, thank you. You want our 82-218 mortise lock. I'm very confident that this will replace your original, though you should watch the video below to get an idea of how you can install it without risking it falling into the door.
A home owner from TX says:
March 11, 2021
Great! Thank You!
Mortise Lock, Round Face, 3-11/16"
Mortise Lock, Round Face, 3-11/16"
82-218
$11.70
