Sliding Glass Door Keeper

Home Owner from Chicago

May 31, 2015 2:30 pm

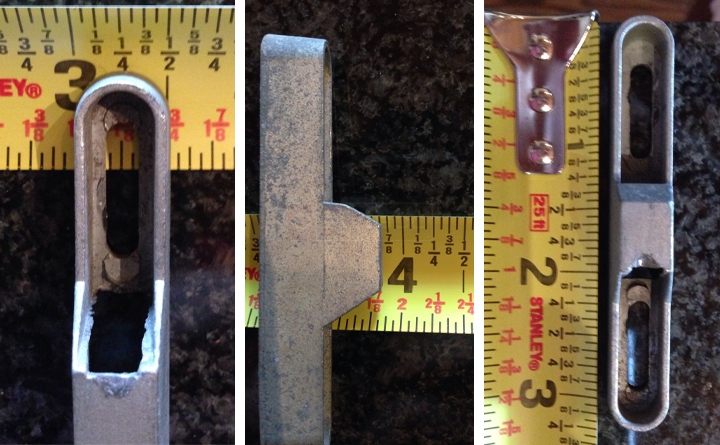

I'm looking for a sliding glass patio door keeper with the following dimensions:

Width - 1/2

Length - 3 1/4

Depth - 13/16

Please let me know what part(s) I can order that might fit this bill. Thanks!!

Mike

5 Replies

Dave Sr. from SWISCO

Jun 2, 2015 12:59 pm

I believe the keeper you are showing in your photo is the one the comes with the 82-214 lock kit. Unfortunately, the keeper is not available by itself. Could that still work for you?

Quick Learner

Jun 2, 2015 4:22 pm

Thanks so much, this is exactly what I was looking for!! I actually managed to make the old keeper work. For some reason, the sliding glass door wasn't closing all the way into the keeper so I taped a couple spare nuts together and put them behind the keeper so as to make the keeper protrude approximately 3/8 out from the door (had to use longer screws obviously). It works fine now, apparently the keeper just wasn't sticking out far enough for some reason. If you know why this would happen, happy to receive any advice. I'd be open to buying the whole mechanism if you just think I'm using a broken keeper as the current solution is somewhat jenky. Thanks!

Paul from SWISCO

Jun 3, 2015 1:06 pm

I think you door might be bowed. That would explain why the keeper needed to be brought out. Since you got the keeper working, leave it alone for now. Hopefully you gave it a few more years of life!

Professional from CA

Jun 3, 2015 4:51 pm

Is your door plum with the jamb? If you bring the door close to the jamb, do you see a straight line of light between the two, or is it wider at top or bottom?
