Sliding Glass Door Roller Assembly

Handy Person from Florida

Mar 21, 2020 11:33 am

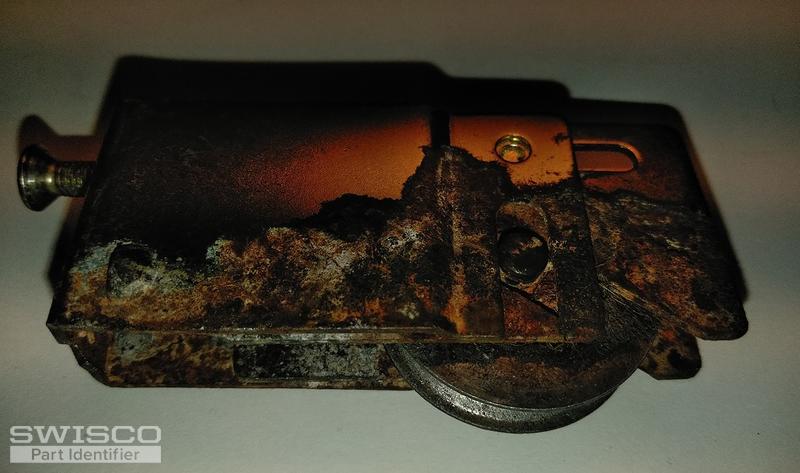

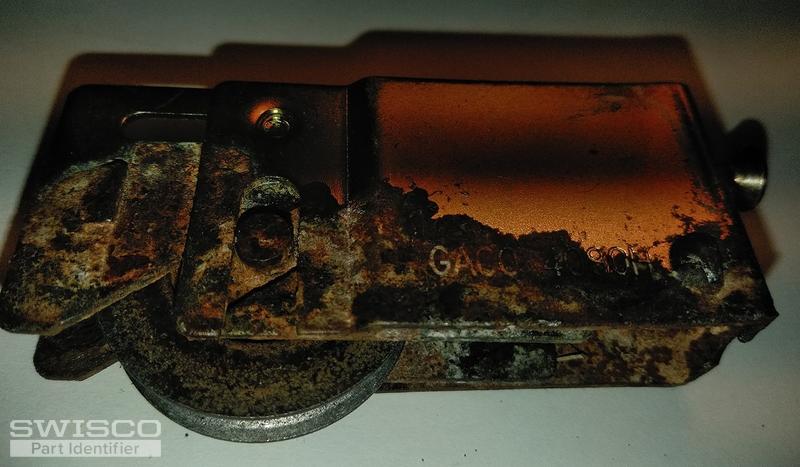

Wheel is 1 1/2" diameter. part number says GAC0 4080H. We found one with correct dimension but too tall at 1 9/16"...our is shorter at 1 3/16". Help Please!

5 user uploaded images

2 Replies

Bob from SWISCO

Mar 23, 2020 7:53 am

Hello there. I think the 81-081 might be what you need. This roller has a similar appearance and a height of 1-3/16"; just make sure 3/4" width also matches. The wheel is 1-1/4" in diameter, not 1-1/2", but you can adjust it to make up the difference. Let me know what you think.
