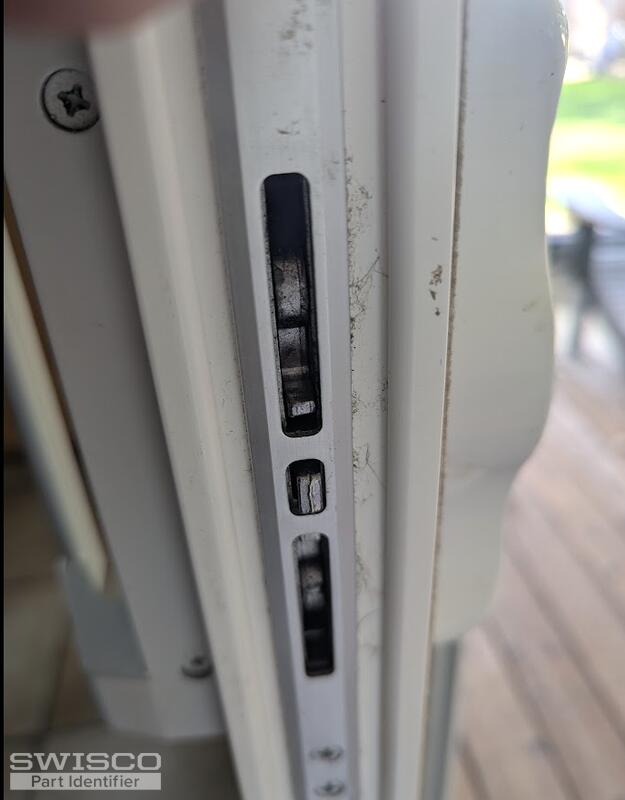

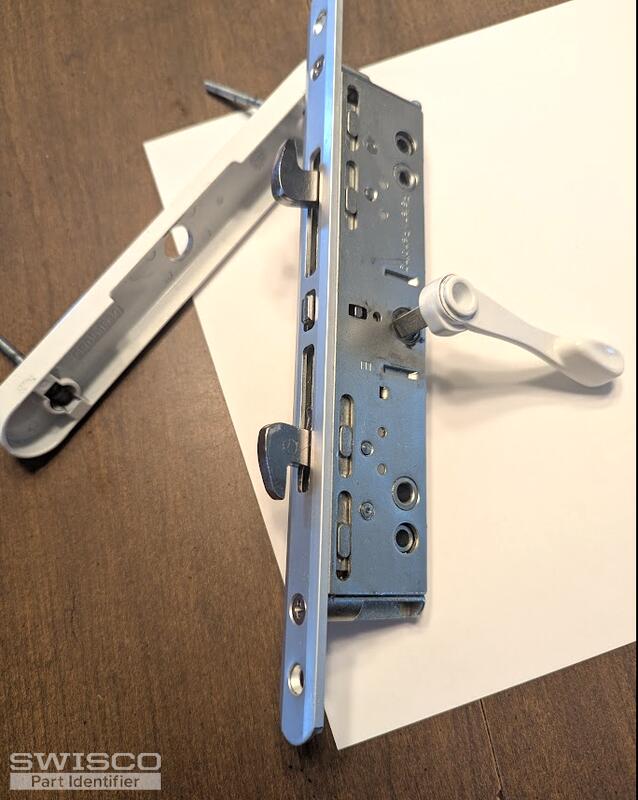

I have a sliding glass door hande, where everything is great, except the metal part unit in the center that holds the latches. There is no key, There are also NO part numbers on the unit or any identifing marks. On the Vinyl white parts, I found three numbers: DR05-1545, DR05=1540, and DR05-1530 - but those parts are in great condition. The only part that is bad is the one that holds the latches. The metal unit is 6 7/16 inches tall and 1 5/16 inches wide. The latches stick out 1 3/4" from the unit when in the locked position. The width (where the latches come in and out) is 1/2". Do you carry anything like this, and could you tell me what I would need? Thank you. Susan
Sliding Glass Door handle with two latches

Home Owner from Santa Rosa CA
Jan 8, 2025 4:38 pm
5 user uploaded images
2 Replies

Emily from SWISCO
Jan 9, 2025 1:56 pm


Hi there Susan.
Thank you for contacting us. Your mortise lock resembles the 82-238. Your dimensions are off from ours, however, but it couldn't hurt to double-check them. Review the specifications and see what you think.
I want to mention that this lock is designed to be used with the 82-080 handle set. However, yours is a different style so we can't promise it will be compatible.
Please let us know if you have any questions.

Alternate image for 82-238

Alternate view of 82-238
