Sliding Glass Patio Door Roller

A quick learner from NC says:
Dimensions: 3/4(w)x1"1/8(h)x1"1/8(d)
Wheel: Metal(2 wheels)

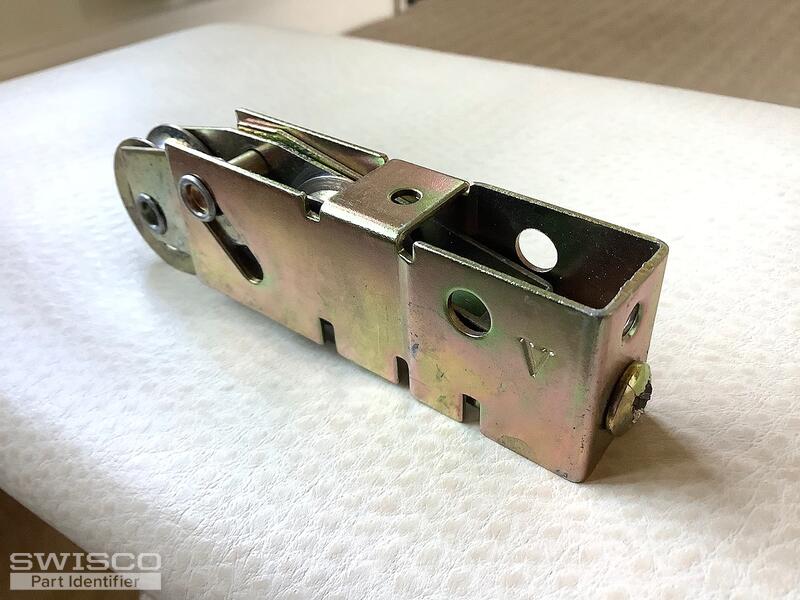

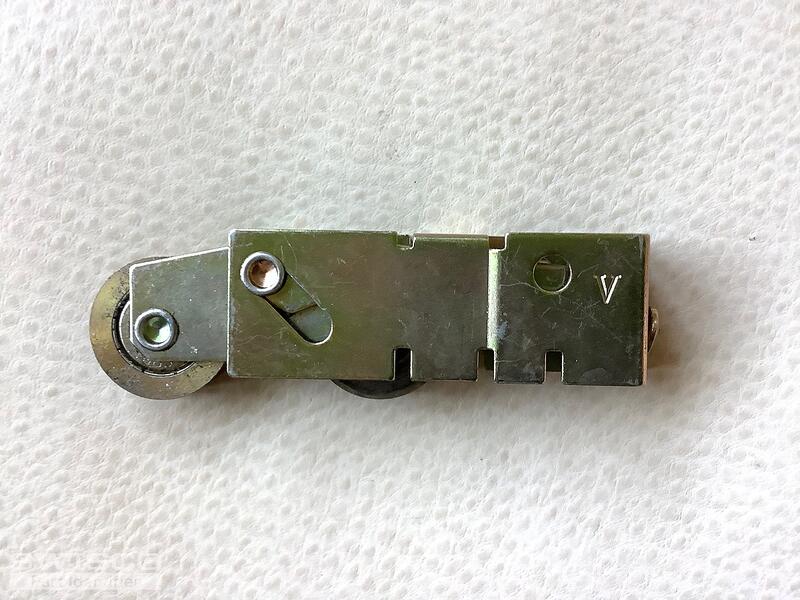

Letter "V" marking on the side

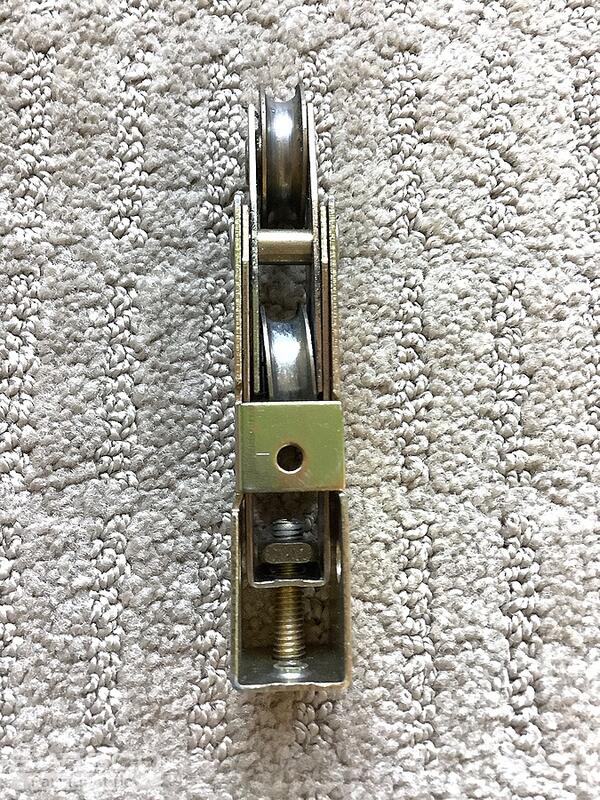

Thumbnail of the uploaded file named D7DC9275-BD68-4F37-95EB-F7B094CDA889.jpeg
Thumbnail of the uploaded file named 8D9638EA-619B-4D97-A9F1-837B202FE2C2.jpeg
Thumbnail of the uploaded file named 3B6DB7C3-B864-413D-9622-CB3167F5BBBA.jpeg
A quick learner from NC says:

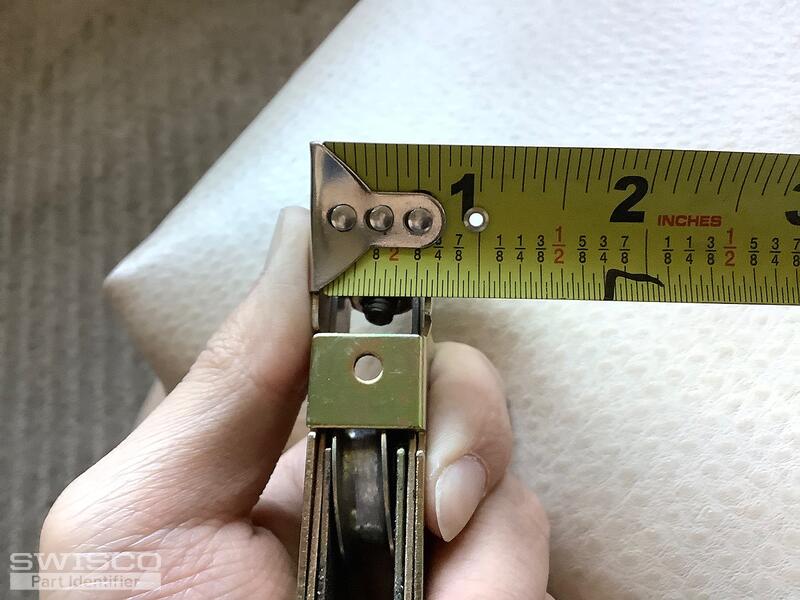

Edit: Width is actually between 5/8 tick and smidgen. 11/16? Sorry, I do not know how to read a measuring tape.
Thumbnail of the uploaded file named 0BD7CBA6-811B-4673-9CA9-0C8CC21A6A78.jpeg
A quick learner from NC says:

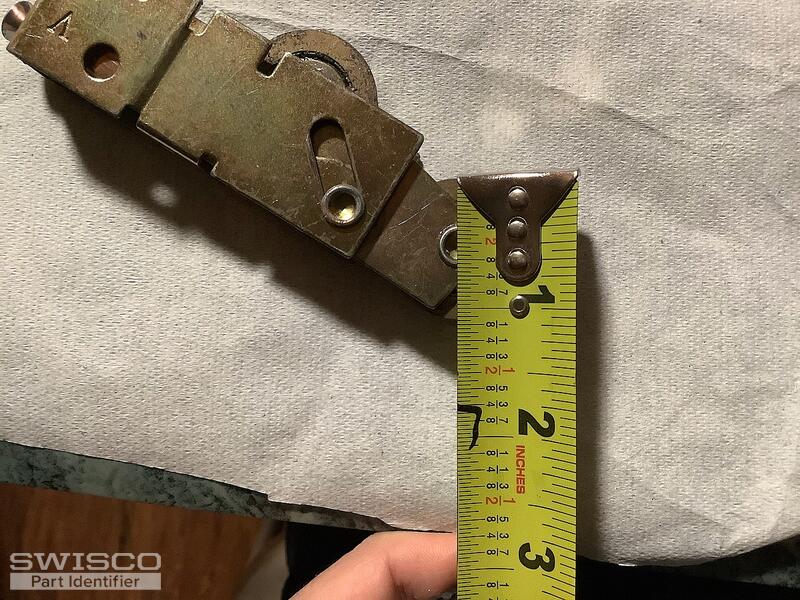

Viewing all rollers(2 wheels) from Swisco, I find Product Code: 81-030 & Product Code: 81-095 visually identical and nearly identical measurements with the wheel diameter slightly bigger than mine which is 1 1/8". Can a wheel diameter of 1 1/4" be replaced with a wheel diameter of 1 1/8"?
Thumbnail of the uploaded file named 19B6F43B-1C71-49DD-8F45-2740D8876134.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I agree that the 81-030 is similar to yours but the housing dimensions would be the determining factor. If everything matches up beside the wheel diameter, you should be able to adjust the height of the roller to compensate for the difference.

We also offer the 1-1/8" diameter 81-223 wheel and 82-310 axle kit if you decided that you need to replace the wheels that come with the 81-030 with the same size wheels as your original roller, though I doubt it would be necessary. If you decide to give it a try and run into any problems, our return policy can be found here

Alternate image for 81-030
Alternate image for 81-030

A quick learner from NC says:
Thank you very much!
