Sliding Glass Patio Door Rollers

A handy person from Baton Rouge, LA says:

July 11, 2020

I need replacement rollers for doors from the 1960's or 1970's. I cannot find a manufacturer name anywhere on the doors or frame.

Thumbnail of the uploaded file named 6E21D06D-BAFF-42C5-AD11-1F17A816DC02.jpeg

Thumbnail of the uploaded file named B3D548ED-DF7E-40C8-8A56-D4440791A1F8.jpeg

Thumbnail of the uploaded file named 21121B98-2E97-43A7-862C-E256AEAE6F26.jpeg

Thumbnail of the uploaded file named 8AEF3521-6286-4A81-B322-2CD9698BA32F.jpeg

Thumbnail of the uploaded file named 230E2A5F-A843-443C-9B6E-28EC5594C834.jpeg

Bob from SWISCO responded:

July 14, 2020

Is this the entire roller, or is there still an outer housing trapped in the door? If so, can you remove it and show us the entire assembly put together? Can you also confirm the width and height of the assembly, as well as the diameter of the wheels? From there we will do our best to find what you need. Many thanks.

A handy person from Baton Rouge, LA says:

July 15, 2020

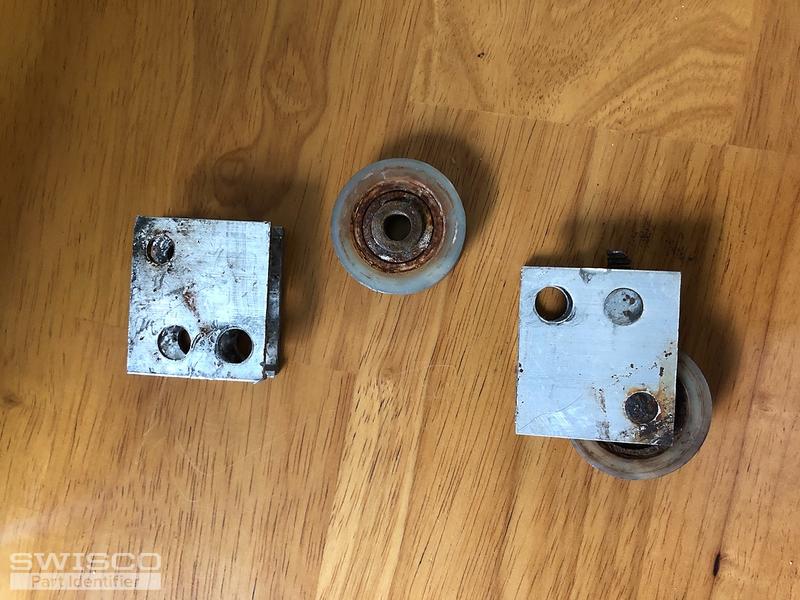

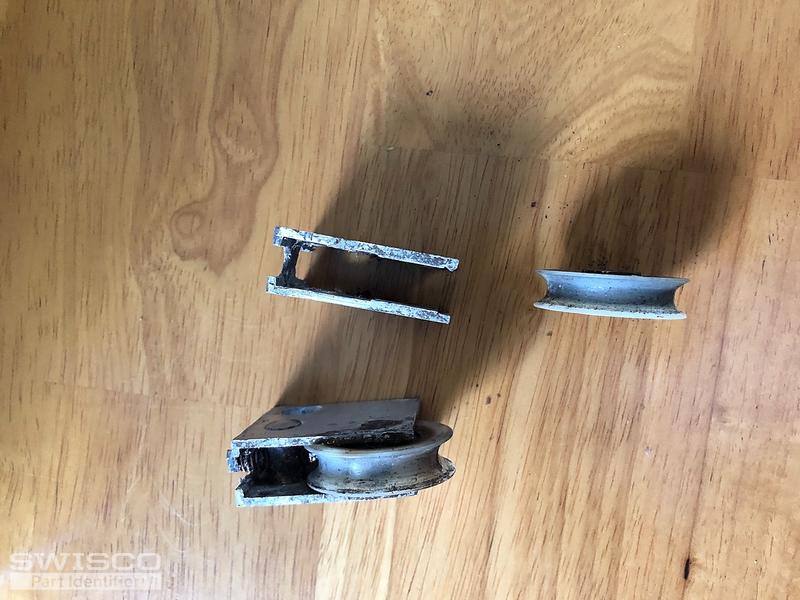

This is the entire roller assembly. It fits inside the frame of the door.

If you look at the right hand roller in the first picture, the top and bottom are 1 9/16", the sides are 1 3/4", and the width or depth is 5/8".

The wheels are 1 1/2" in diameter and 3/8" wide, with ball bearings.

Thanks.

Bob from SWISCO responded:

July 15, 2020

I am afraid we don't have a replacement for this roller; it's just not something we could get in supply. I am wondering though if the housing is undamaged if you could get away just replacing the wheels. See our 81-272 Roller and Axle Kit. The video below shows how to install new wheels.

1-1/2" dia Roller And Axle Kit

81-272

$11.18

1-1/4" dia Roller And Axle Kit

81-266

$10.92

Roller Axle Repair Kit

81-310

$4.92
