Sliding Screen door wheel replacements

Home Owner from Lincoln RI

May 11, 2024 2:42 pm

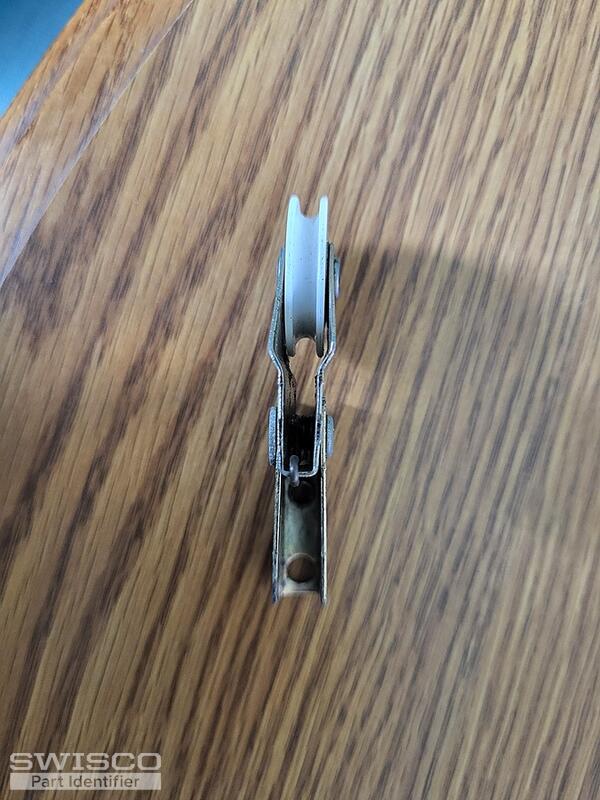

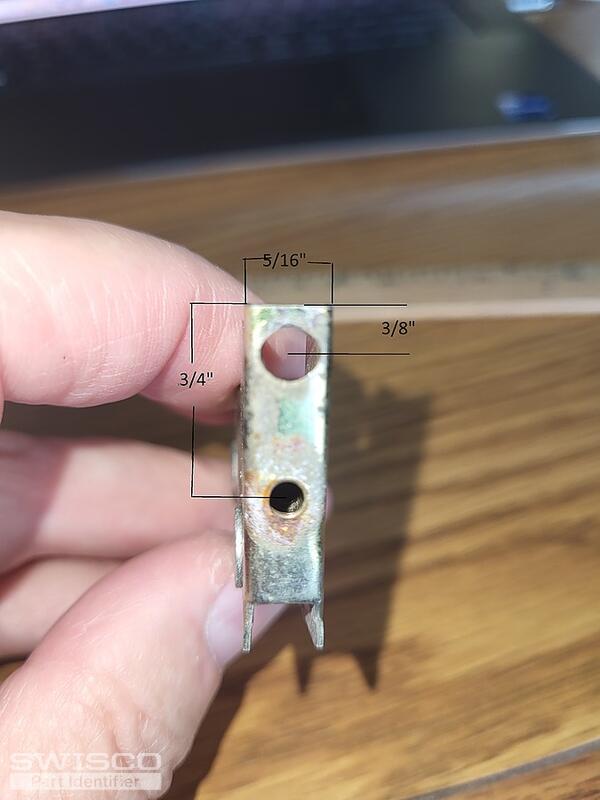

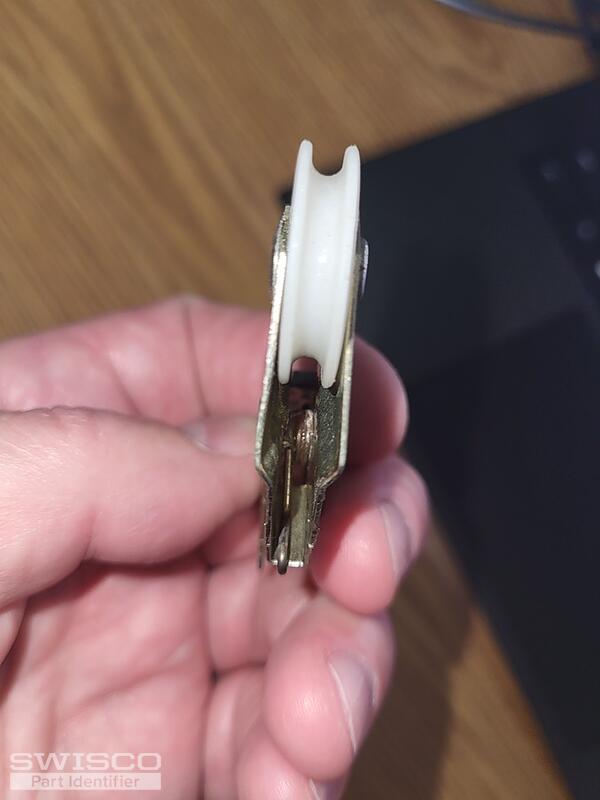

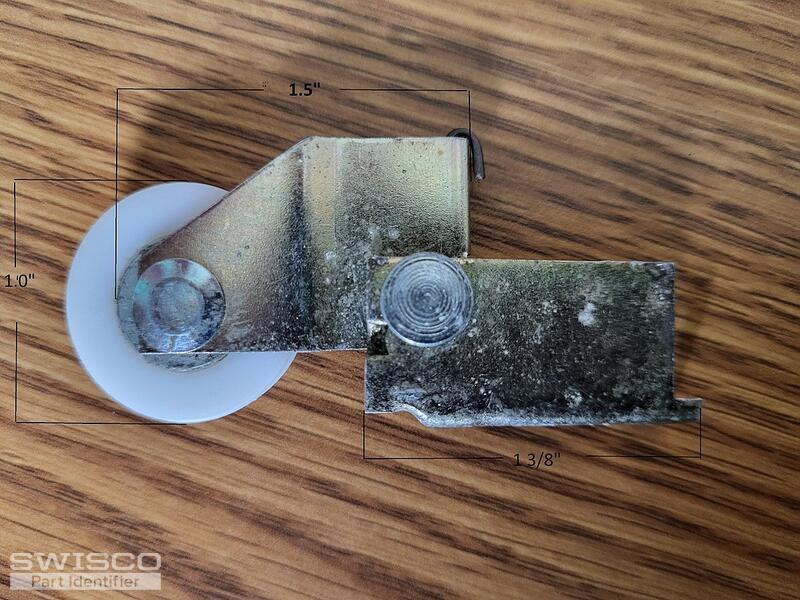

Patio door and screen have no markings to manufacturer visible. Pictures are of a top and bottom assembly. Parts look identical other than the addition of a spring on the top unit. No identifiable markings on the wheel assemblies.

4 user uploaded images

7 Replies

+ Add a Comment

Bob from SWISCO

May 12, 2024 12:12 pm

EXPERT

Thanks for writing in. This looks like an 84-095 Screen Roller. Just make sure the dimensions listed below match what you have. Let me know what you find.

Alternate view of the 84-095 roller body width.

Alternate view of the 84-095 roller.

Home Owner from Lincoln RI

May 12, 2024 2:13 pm

Hi, thanks for the response but I have a follow up question. The item you recommend says it is spring loaded. My screen has (2) spring loaded wheel assemblies on the top and (2) non spring loaded assemblies on the bottom. Is there a separate part number for that one?

Thanks,
Ed

Bob from SWISCO

May 14, 2024 10:33 am

EXPERT

I'm not sure what that might be. Is it a different part entirely, or just the same style but without a spring? If it is different, can you show me a photo of it?

Home Owner from Lincoln RI

May 14, 2024 10:52 am

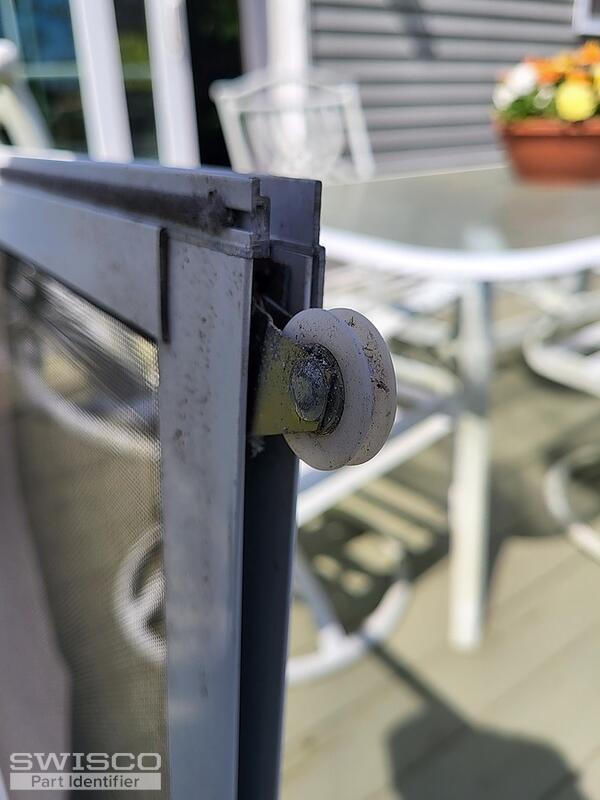

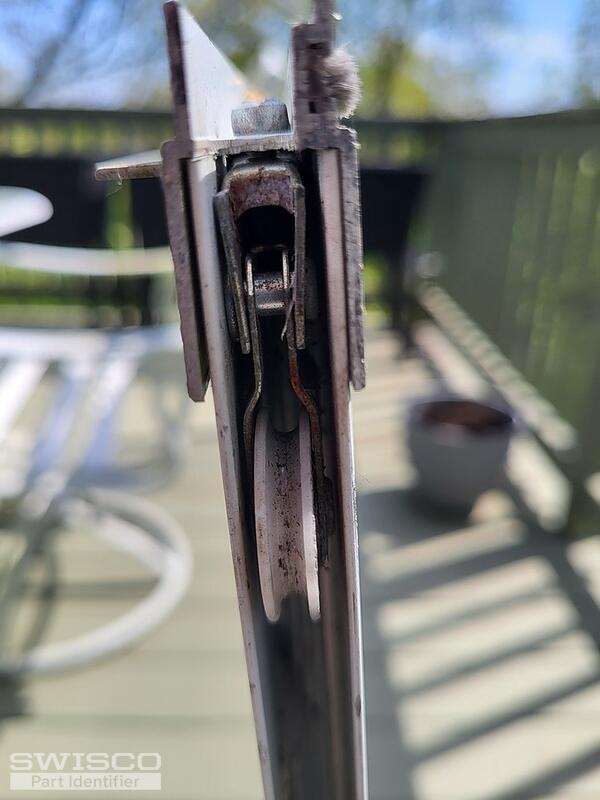

The parts are identical other than the addition of the spring. They mount in different orientations as seen in the 2 new pics attached. The one where the wheel protrudes out is the top of the screen and is spring loaded.

2 user uploaded images

Bob from SWISCO

May 15, 2024 10:37 am

EXPERT

I'm afraid we don't sell a version of the 84-095 without a spring. To be perfectly honest, I've never seen such a thing.

If this part is identical to our 84-095 in all aspects aside from that spring, is there any reason why our part wouldn't work anyway? Would the spring at all interfere with its function?
