Sliding door handles

Quick Learner from Perry Fl

May 19, 2024 7:27 pm

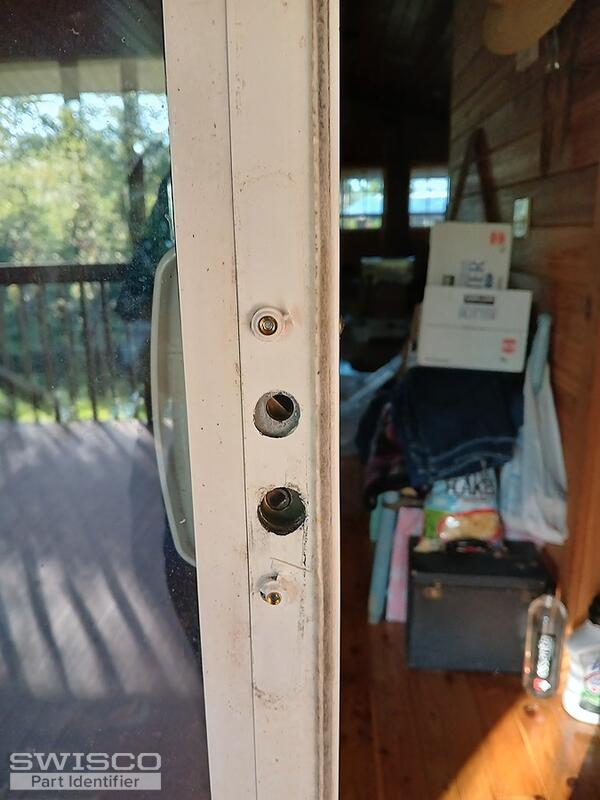

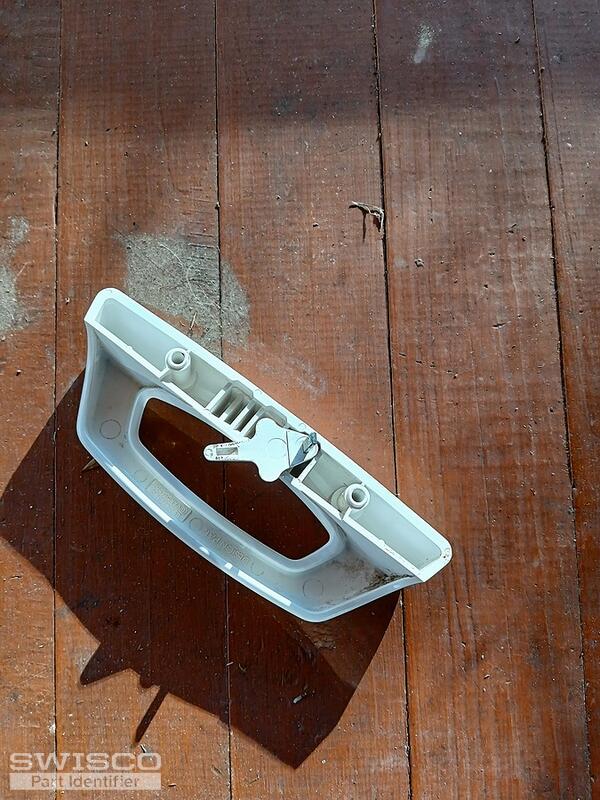

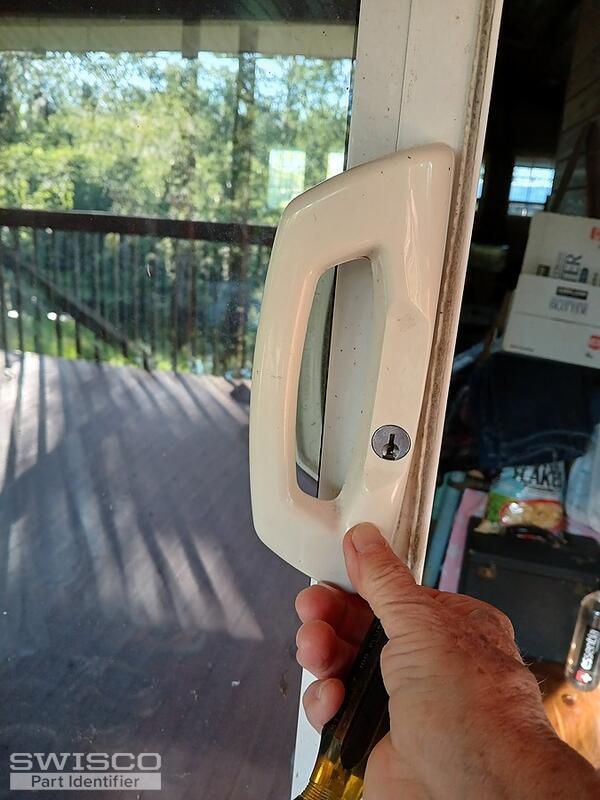

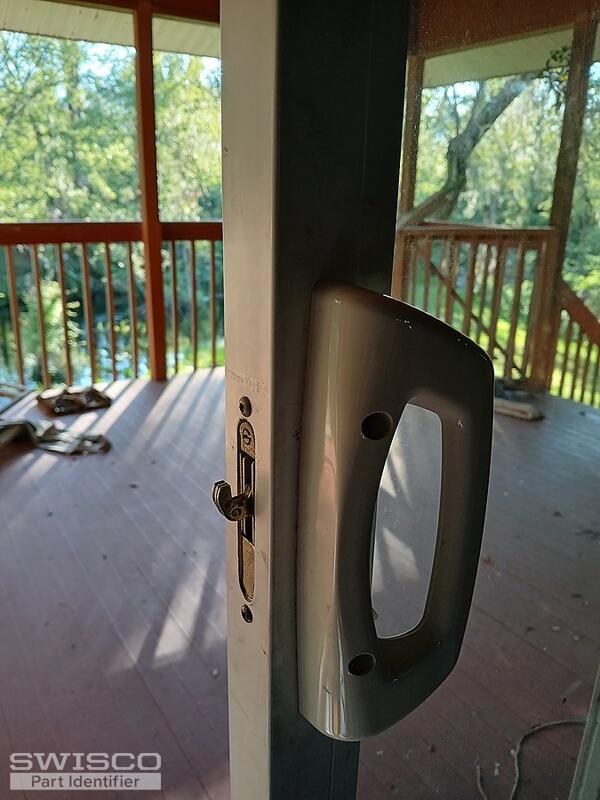

On my handle it has Vanguard, US D421380. The keyhole is offset and looks similar to one you sell. I may try to call you tomorrow. I need something ASAP.

5 user uploaded images

7 Replies

Bob from SWISCO

May 19, 2024 9:51 pm

Hello there. The mortise lock looks like our 82-218, which works with handle sets that have 3-15/16" hole spacing. Therefore, I believe either our 82-086 or 82-030B Keyed Handle Sets should work for you. Both of these have that same hole spacing and have keyways in the offset position. See what you think.

Quick Learner from Perry Fl

May 20, 2024 7:07 am

Yes, I saw both of those on your site, and thought they might work for me. I wanted your opinion. I like the 82-030B with the handles on both sides. I'll order today. Thanks

Bob from SWISCO

May 22, 2024 11:00 am

Awesome, thanks for the order! It means a lot.

Please feel free to reach out if we can be of any further assistance.

Quick Learner from Perry Fl

May 22, 2024 12:41 pm

Thanks so much!

Quick Learner from Perry Fl

May 24, 2024 7:42 pm

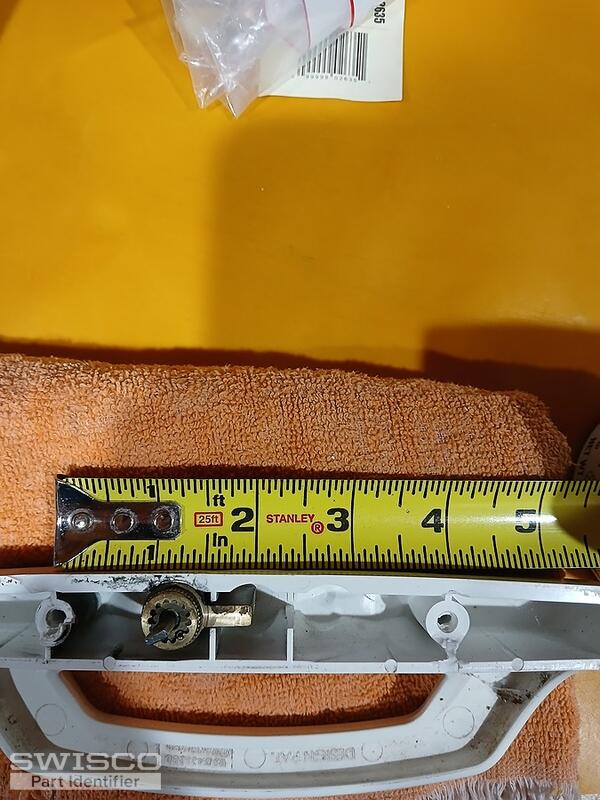

I have a question about the pin on the lock mechanism. The lock mechanism on my old handle is not as long as the new lock mechanism. So do I cut the pin the same length as the other pin or do I cut the pin a little shorter so both mechanisms and the pins will be the same length overall?

Bob from SWISCO

May 28, 2024 9:46 am

Are you referring to the tail on the new key lock? If so, these are designed to be extra long so that you can cut them down to the appropriate size. If your old key lock worked without issue, then I recommend cutting the new tail so that it's the same size. No reason to mess with success.
