Sliding door handles

A home owner from West Palm Beach, Fl says:

Good Morning ,

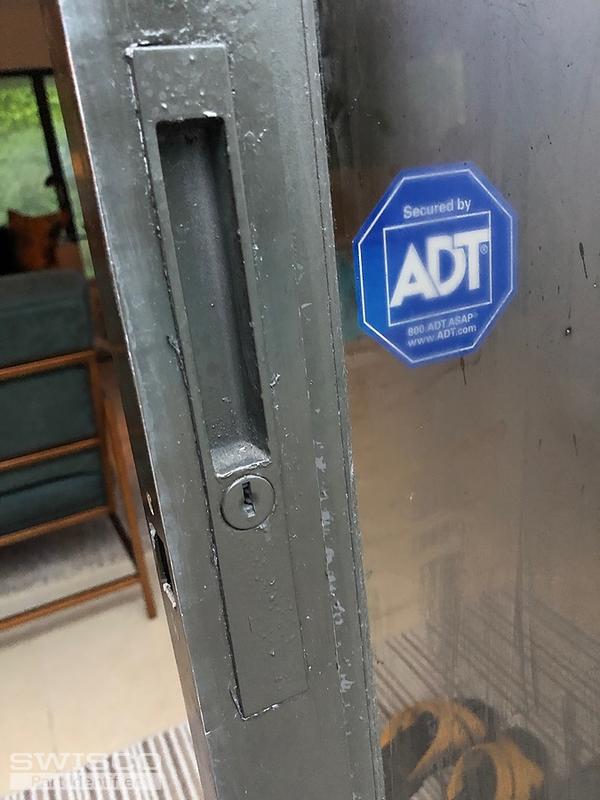

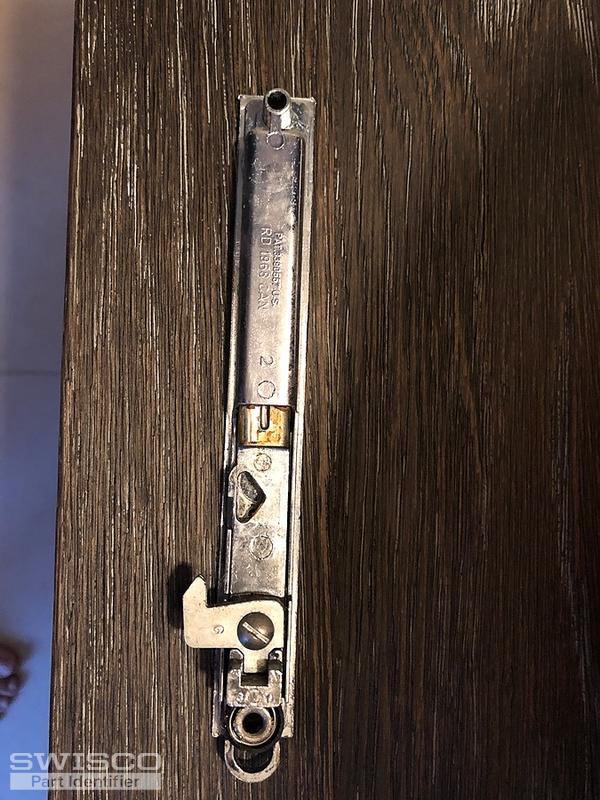

I'm trying to identify and replace the locking handles on my sliding doors. They are older doors , I think from the 70's.. the screws are 6 5/8" apart , the plate is approx 7 1/4" long and 7/8" wide , the top of the internal latch starts approx 1 7/8" from the bottom of the plate and slides up to approx 2 1/4" from the plate bottom.

Hope this helps to identify ..

Thankyou ,

Ken

Thumbnail of the uploaded file named 2DC7DEA5-23A4-44B6-922C-94F0DBF282CE.jpeg
Thumbnail of the uploaded file named D29BFDD4-E962-4559-ADB1-DA1211242378.jpeg
Thumbnail of the uploaded file named 6A52A783-42F7-49E9-8944-2ADB6F694707.jpeg
Thumbnail of the uploaded file named 5B0D28A8-D87D-45C4-A76B-FBDFA91D9B08.jpeg
Thumbnail of the uploaded file named F07A6E9F-795D-4A72-A7F9-0C0B05521973.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Take a look at our 82-002K. Go over all the dimensions and see if this matches what you need.
