Sliding door hardware

Home Owner from Massachusetts

May 2, 2014 5:37 pm

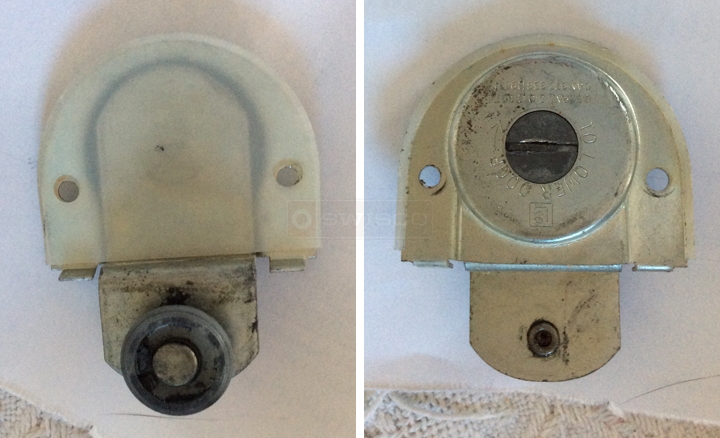

Marking are: in a square box large L with B inside the L, us pat. 3.041.657, can.673.636(1963)
Around hole with flat screw inside it says ."to lower door with arrow pointing down
Both doors appear to have same size parts-1/2".

5 Replies

Tom from SWISCO

May 5, 2014 10:56 am

Hard to tell what the offset is based on these images, but look at our 23-031 and 23-047 and see if either of these can work for you.

Home Owner

May 5, 2014 1:10 pm

Would a different view help you decide offset? If I measure indent on the wheel part it is 1/2 inch but both doors have the same 1/2 inch hardware. Is that unusual?

Home Owner from Ma

May 6, 2014 8:36 am

Does this picture help determine size better?

Paul from SWISCO

May 6, 2014 9:32 am

No, that's not unusual. Some manufacturers have their track set up with the same rollers for front and back doors.
