Sliding door key lock

Hello,

We'd be happy to look into this for you but we would need to start by seeing photos of your original mortise lock and handle set. That will help us confirm if any of our key locks, which come with compatible keys, would work for your application. Thank you!

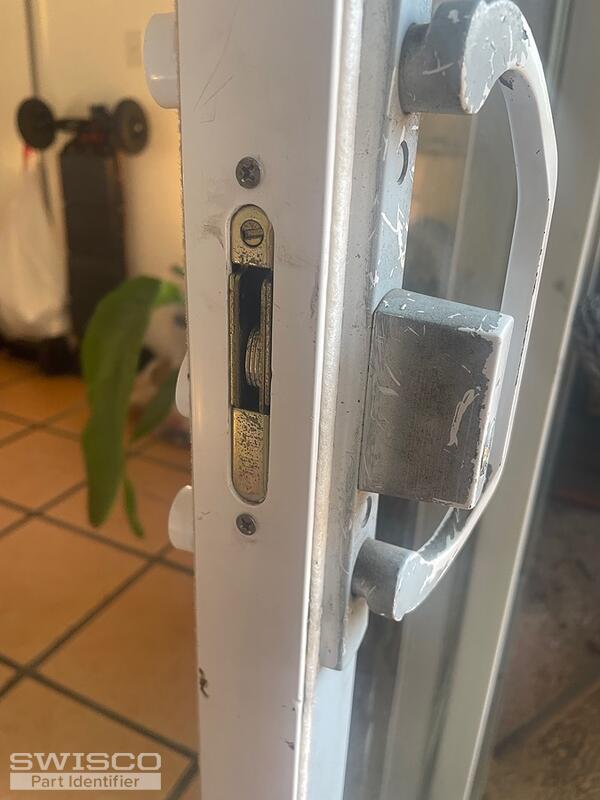

Thanks for getting back to us. Your photo resembles the 82-218 mortise lock and possibly the 82-086 handle set with an offset thumb latch. If so, see the 82-310 key lock used with this handle set, which comes with two keys. We've also related videos on this page to help you through the repair process.

Profile view of 82-218

Opposite side view 82-218

Dimensions for 82-086

Dimensions for 82-086

Alternate view of 82-310

The 82-310 key lock has a long tab that can be snapped off to match the length of your original lock. Just make sure not to cut it too short, which will prevent it from engaging with the mortise lock.

Take a look at time stamp 3:25 of the video included in our last response, which shows how to snap off the tailpiece using needlenose pliers and a vice grip to hold the part in place.
