Sliding door roller

A home owner from Dallas, TX says:
March 6, 2022
We purchased the door from Lowe's and I believe it is a Reliabilt. One wheel has collapsed because its bearing has broken. The case measures 4.5" x 1 5/8". There are two screw holes on the top of the case.

I apologise that I did not photograph the door with the roller assembly installed but I had to reinstall the door before I discovered your website. I was unable to find a replacement locally.

If you do not have this style, can you identify the manufacturer by the mark?

Thank you!

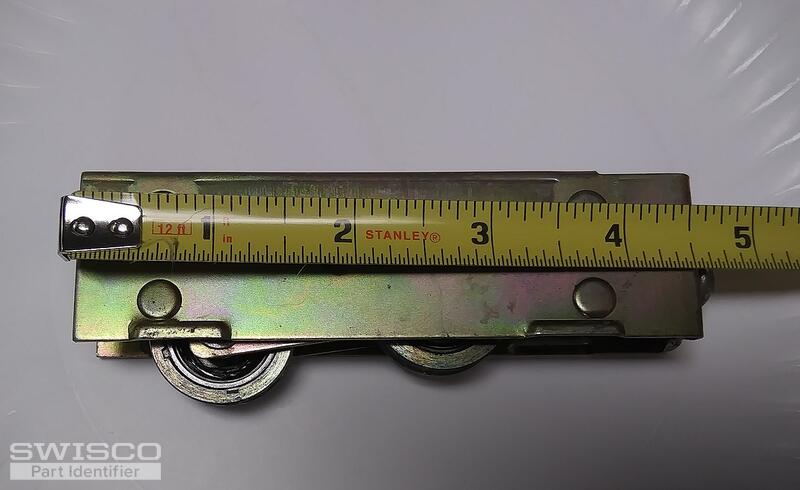

Thumbnail of the uploaded file named 20220305_171702~2.jpg

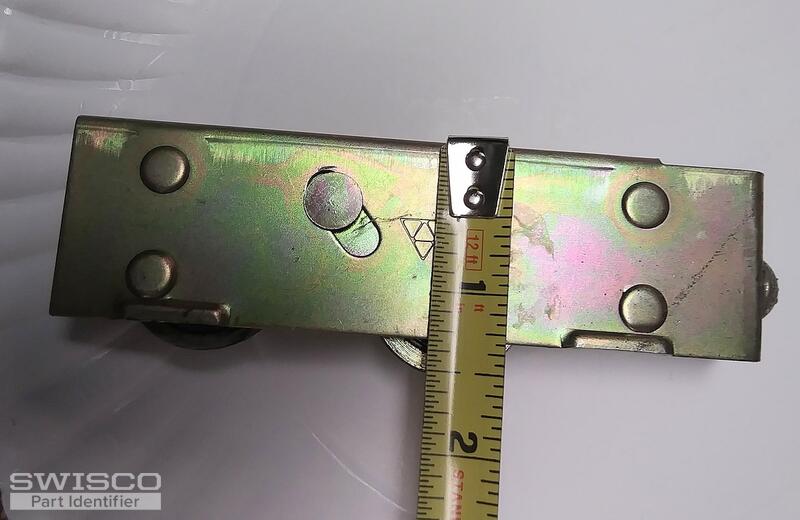

Thumbnail of the uploaded file named 20220305_171733~2.jpg

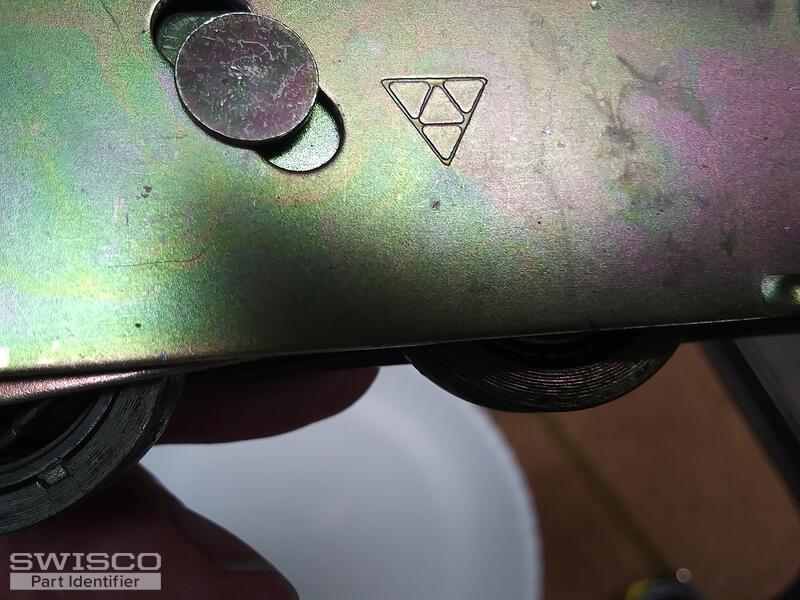

Thumbnail of the uploaded file named 20220305_171755~2.jpg

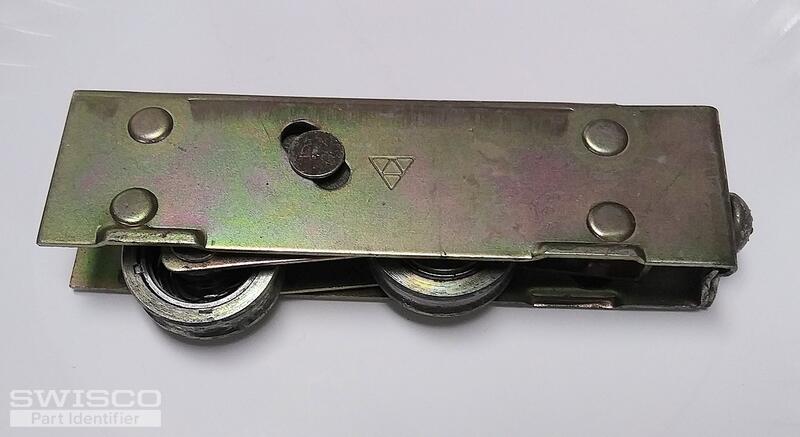

Thumbnail of the uploaded file named 20220305_172612.jpg
Profile picture of Tom
Tom from SWISCO responded:
March 8, 2022

I recognize this roller. It's a very old style that unfortunately hasn't been made in a long, long time. We don't currently sell anything that can replace the whole assembly.

That said, we do sell replacement wheel kits that you may be interested in. See our 81-266 (1-1/4" diameter) and 81-272 (1-1/2" diameter). Assuming the wheel is the only thing that needs replacing, these may be worth considering.
1-1/4" dia Roller And Axle Kit
1-1/4" dia Roller And Axle Kit
81-266
$10.92
1-1/2" dia Roller And Axle Kit
1-1/2" dia Roller And Axle Kit
81-272
$11.18
