Sliding door roller.

Quick Learner from Washington State

Nov 11, 2018 5:36 pm

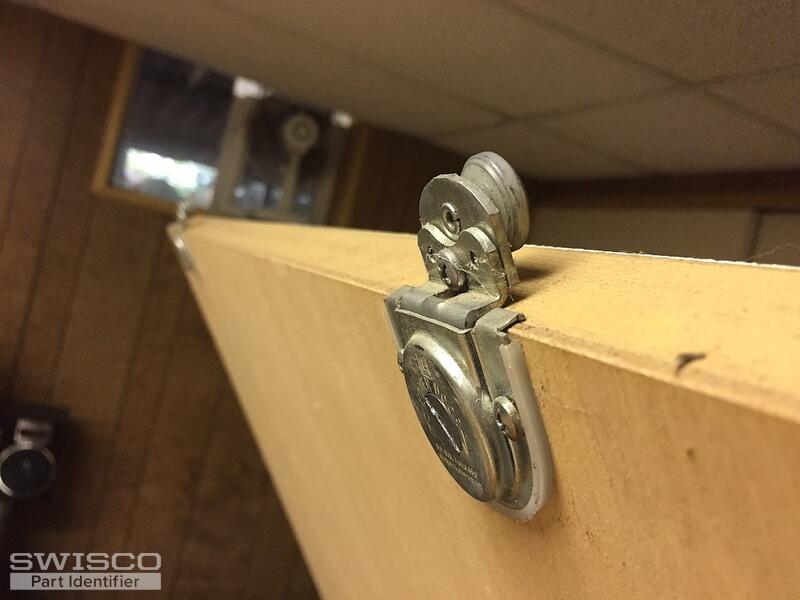

The roller image shows the patent numbers and that's all I can see anywhere.

The offset appears to be 1/2".
The rollers are 0.763 dia and 0.186" thickness and are plastic / nylon?

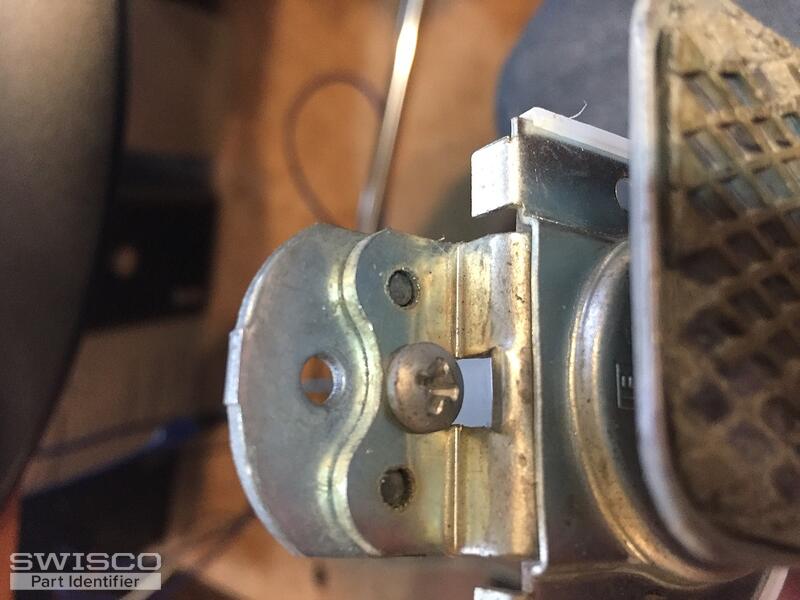

The top roller attachment is all I really need as the imaged one had the roller fall off where the axle is swaged into the hole in the part that's left.

Of course, I'd like to buy a replacement for this assembly. What is it?

5 user uploaded images

5 Replies

Tom from SWISCO

Nov 17, 2018 2:36 pm

If the offset is 1/2", then see our 23-031. This looks like it could be a good replacement option.

Quick Learner from Washington State

Nov 17, 2018 7:46 pm

Thank you!!

And not the 23-047?
Where is the offset measured?
I ask because I see that the 23-031 says 1/8" offset.

Paul from SWISCO

Nov 19, 2018 10:07 am

The 23-031 has an 1/8" offset and the 23-047 has a 1/2" offset. Look over the diagrams below of both parts mentioned and let us know if you have any further questions.

3586

3588

Tom from SWISCO

Nov 19, 2018 10:11 am

Yes, Paul is right. I had made a typo in my first post. I was thinking of the 23-047 but wrote 23-031 by mistake, since I had them both open when typing my response. Sorry for the confusion!
