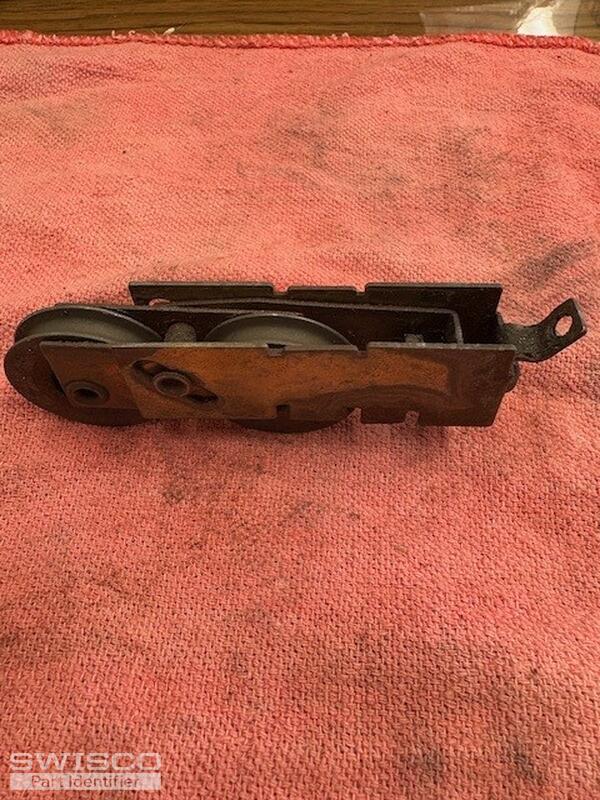

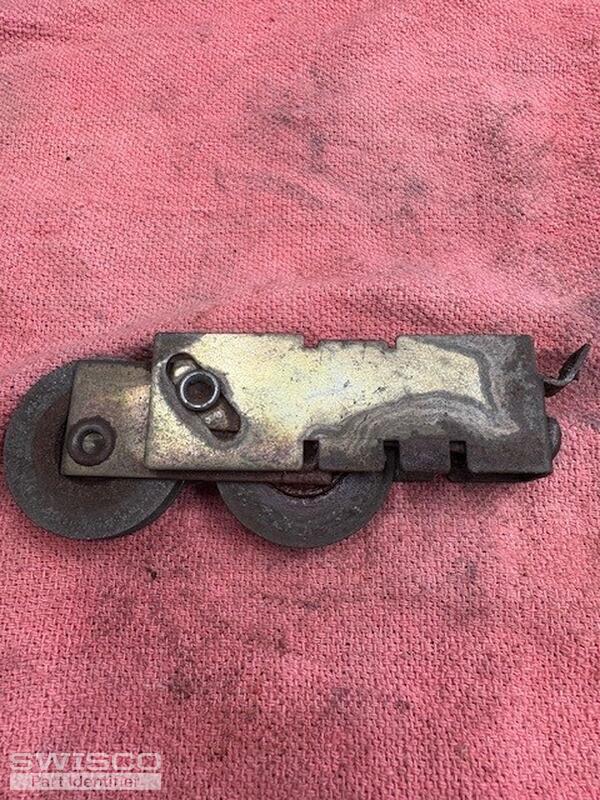

caartridge: 3 1/8" long (not including wheels)
cartridge: 11/16" width to outside
cartridge: 1 1/16" high
wheels: 1 1/2" diameter
material: all metal - prefer premium stainless steel if you have em.
Sliding door roller replacement hdwe
Contractor from Capistrano Beach, Calif
Dec 16, 2025 7:08 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Dec 17, 2025 3:40 pm
Hello,
We do not carry this part in stainless steel, but your roller resembles the 81-056. With that being said, the height and wheel diameter differ from yours. I'd suggest double-checking the height to see if the 1-1/8" housing of our part will fit in your door jamb. As for the wheels, these rollers come with 1-1/4" diameter wheels. You may be able to adjust the height of the housing to compensate for the difference. If not, we offer the 81-272 roller and axle kit to swap out the wheels. Take a look and see what you think. Thanks for posting!
Alternate image for 81-056
Contractor from Capistrano Beach, Calif
Dec 17, 2025 4:21 pm
Hi Casey,
We just might have a deal here. one question though: what is the width of the little bent tab that has the hole in it. let's call it a mounting tab. on my original, it is exactly 3/8". Also, your wheels are just a bit less in diameter but I'm pretty sure that won't be an issue. I know mine are exactly 1.5" so perhaps someday, if I keep searching, I might find them in that size but I do not want to change out the wheels on your product with the kit you offer - I see problems after use with that idea. Anyway, let me know on the mounting tab thing. thx !!
We just might have a deal here. one question though: what is the width of the little bent tab that has the hole in it. let's call it a mounting tab. on my original, it is exactly 3/8". Also, your wheels are just a bit less in diameter but I'm pretty sure that won't be an issue. I know mine are exactly 1.5" so perhaps someday, if I keep searching, I might find them in that size but I do not want to change out the wheels on your product with the kit you offer - I see problems after use with that idea. Anyway, let me know on the mounting tab thing. thx !!
Casey from SWISCO
Dec 18, 2025 9:45 am
The front mounting tab of the 81-056 measures 3/8” wide also. Just let us know if you have any other questions.
