Sliding door rollers

Home Owner from Lake City, Fl

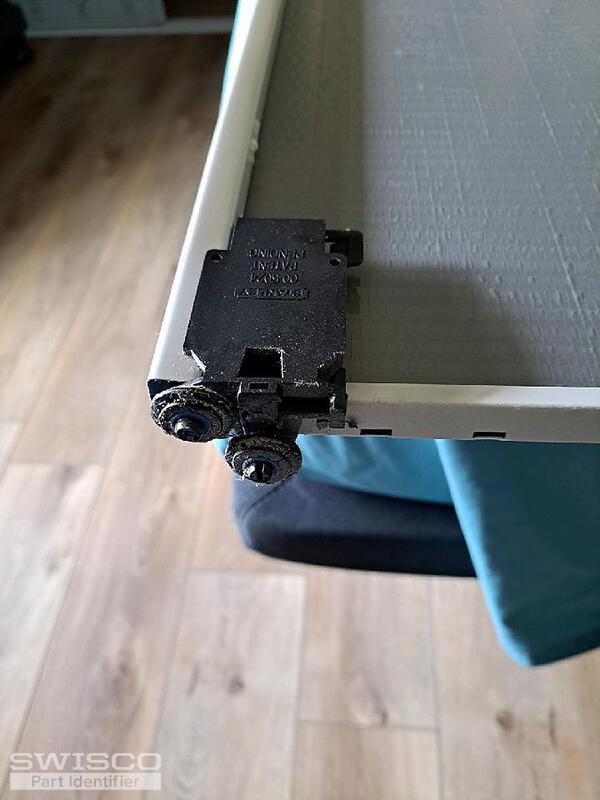

I have glass sliding door rollers and the number on the roller is 00.5024 and I need to replace those rollers. I noticed they have been discontinued what can I do. We are senior citizens and trying to do this job ourselves to save our money, we live on a fixed income.
1 user uploaded image
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. We'd be happy to help you. This old roller guide is indeed discontinued, but the 23-222C is meant to replace it. To remove and replace this guide, lay the door on a flat stable surface, then remove the old guide with a pair of needle-nose pliers. You have to steadily work the hooks of the old guide out of the door frame. There's no real trick to this, it just takes patience and some elbow grease. You then reverse the process to install the 23-222C. Let me know if you have further questions.

Quick Learner from California

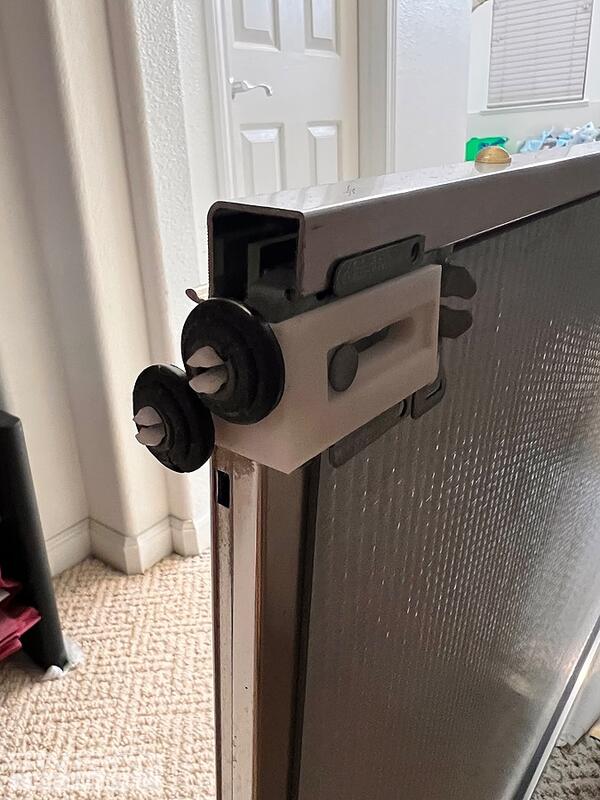

I have a by-pass glass sliding door made by Stanley. The top roller breaking and need to replace . The label on the white part of the roller is. 17-4116. Can you find a replacement for me. Seem 23-222C works , please confirm. Also if you can let me know how to remove the old one and install the new one
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

I agree, our 23-222C looks like a great replacement option. I believe it's just a newer version of your older Stanley brand part.

As for removal, it's fairly straight forward, even if it isn't exactly intuitive. These are usually just hooked into the frame, without any external fastener keeping them in place. Therefore you have to unhook them; to do this, I like to use a pair of pliers to gently--but firmly--work the housing out of the frame. It takes a little time and you have to be patient, but it will release.
