Hello,
You previously replaced the handle for my sliding door. Now I need new rollers. The only information I have for the door is located on the inner frame: Series 800 SGD-LC25-96x82.

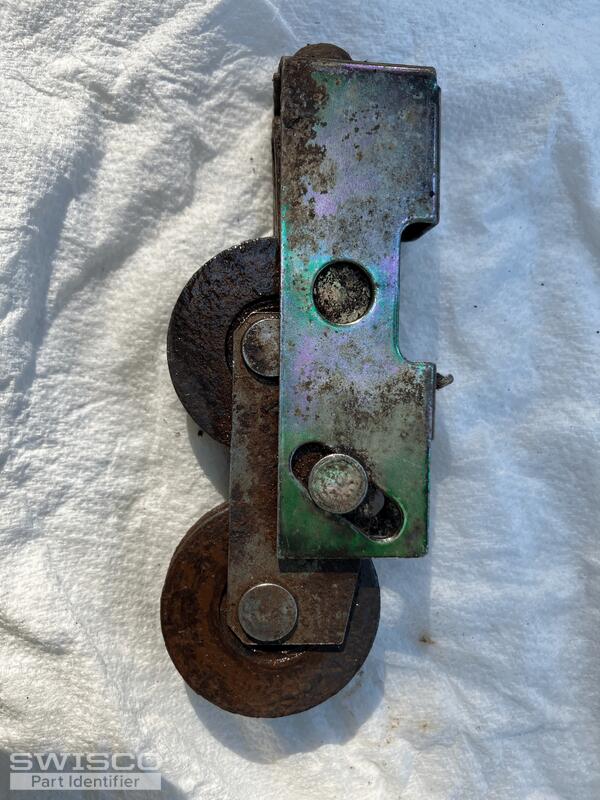

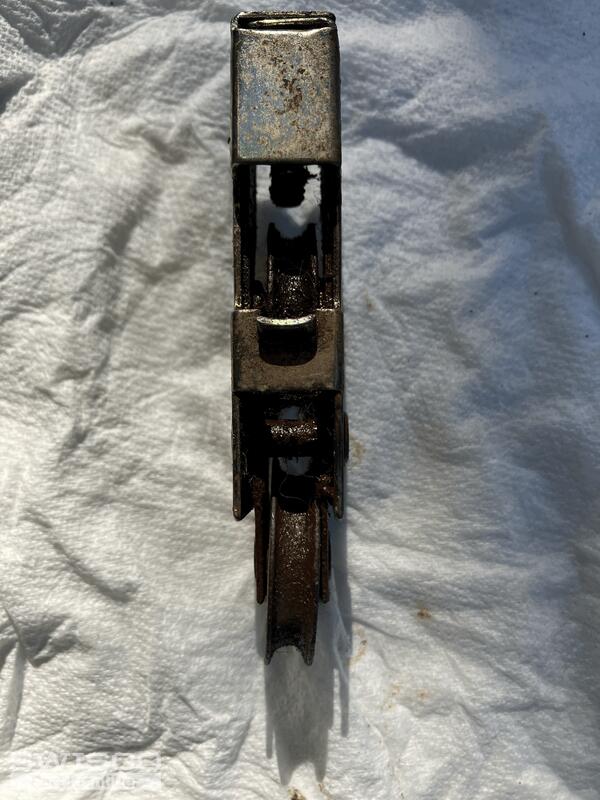

I will attach photos of the rollers.
It is 4" in length (minus the adjustment screw), 1.5" in height, 5/8" in width.
In centimeters 10.5 x 4 x 1.5
Thanks, Toby
Sliding door rollers
Home Owner from Bothell, WA
Jul 24, 2025 8:24 pm
5 user uploaded images
2 Replies
Dave Sr. from SWISCO
Jul 30, 2025 10:48 am
Hi there Toby.
The 81-166S and 81-158 rollers come to mind. You said that the housing is 1-1/2" in height, but it looks closer to the 81-158. It couldn't hurt to double-check, just to be safe. Review the specifications and see what you think.
Dimensions for 81-166s
Alternate image for 81-158
Alternate view of 33-104
