Sliding door weatherstripping

A home owner from Wisconsin says:

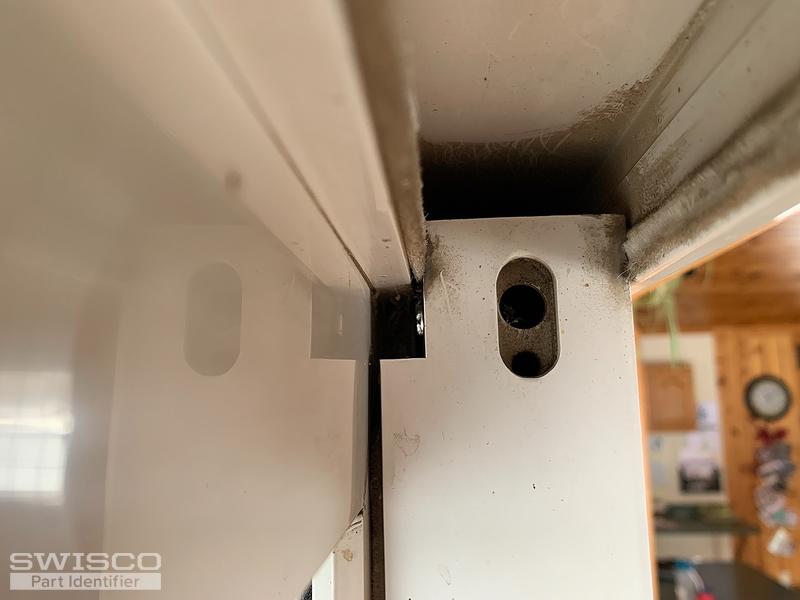

My main concern is how to reduce the draft coming from the track. More concerning is the draft coming through the small cutout area to the left of the adjustment holes. Both of those areas on the top and bottom of the door are letting in more air than both tracks. I have included a picture of a small area where I can see to the outside. Is there some sort of weatherstripping for those areas? I'm wondering if maybe the wool pile that goes all the way from the top to bottom of the sliding door is just supposed to be extended into those areas? I can feel the wool pile extended into the area of the bottom cutout but there is still a large draft coming through.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Take a look at the 80-042 and 80-043 draft plugs used on Silver line vinyl patio doors. These are attached to the stationary door top and bottom to keep out the draft. Not sure what brand doors you have, and I am not sure they will fit your make door, but take a look to see if you can adapt them to your door. We also carry the 80-046 sliding door guide used on International doors. These attach at the top of the sliding door. See if these can be used on your sliding door. And lastly we have stick on type weather stripping like the 58-180 and the 58-184. These are actually used on a Swing type door. See if you can cut and fill in some of your gaps with these type parts.

58-180 : Stick-On Foam Door Seal
Stick-On Foam Door Seal
58-180
$14.89
VIEW >
80-042 : Vinyl Patio Door Draft Plug, Left
Vinyl Patio Door Draft Plug, Left
80-042
$1.33
VIEW >
80-043 : Vinyl Patio Door Draft Plug, Right
Vinyl Patio Door Draft Plug, Right
80-043
$1.33
VIEW >
58-184 : 2
2" Foam Corner Seal
58-184
$1.35
VIEW >
80-046 : Sliding Patio Glass Door Guide, 900S International
Sliding Patio Glass Door Guide, 900S International
80-046
$1.69
VIEW >
